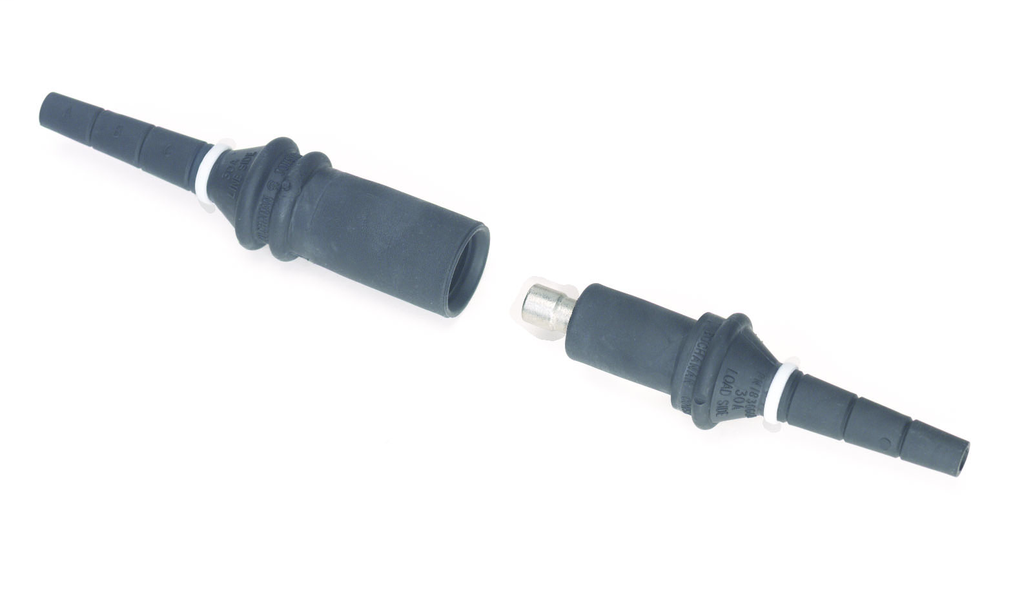

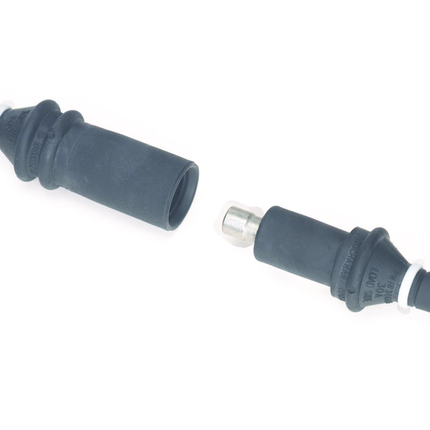

Breakaway Streetlight Connector Kit, In-Line Non-Fused, Neutral – Electrical Connector

The Breakaway Streetlight Connector Kit by IDEAL Industries is designed for secure and reliable electrical connections in streetlight applications. This in-line, non-fused neutral connector supports up to 30 AMP and is suitable for use by electrical distributors and switchgear suppliers requiring robust wire and cable connection solutions in lighting systems.

Specifications

• Amperage Rating: 30 AMP
• Operating Voltage: 600 Volt
• Maximum Operating Temperature: 75°C (167°F)
• Manufacturer: IDEAL Industries
• Manufacturer Part Number: 20-LC
• Product Weight: 0.2300 lbs

Features

• Includes line side and load side housings with white (neutral) marking bands
• Non-fused design with dummy fuse pin contact for in-line connection
• Compatible with copper and aluminum conductors (using appropriate contacts)
• Lubricant packet included for ease of assembly and corrosion protection
• Designed for use with wire sizes from 14 AWG to 2 AWG as per installation instructions
• Clear identification of line and load sides with molded connector body ridges
