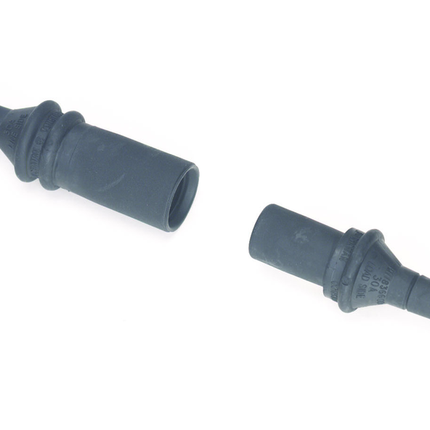

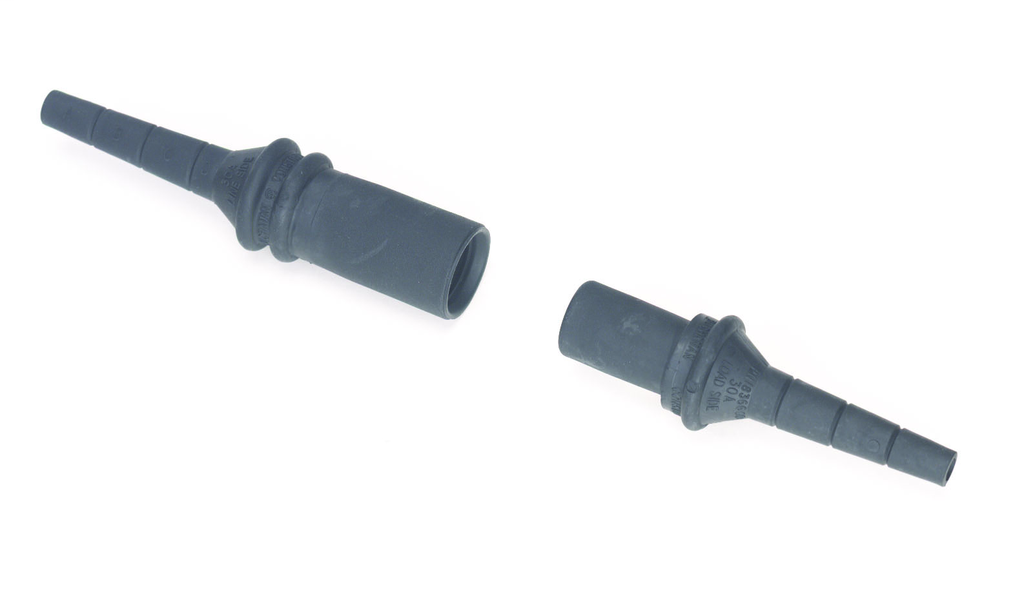

Breakaway Streetlight Connector, In-Line Fused, Crimp – Electrical Connector for Lighting Solutions

The Breakaway Streetlight Connector by IDEAL Industries is designed for use in highway lighting, area lighting, flood lighting, and power distribution circuits. This in-line fused, crimp-style connector supports wire sizes from #14 to #2 AWG and provides a reliable breakaway safety feature that prevents circuit de-energization when impacted. It is suitable for electrical distributors and switchgear suppliers seeking durable, easy-to-install connectors for lighting and wire and cable applications.

Specifications

• Amperage Rating: 1/10 - 30 AMP
• Wire Range: #14 to #2 AWG
• Installation Time: 5 minutes or less
• Operating Voltage: 600 Volt
• Manufacturer Part #: 65LC-U
• Product Weight: 0.1700 lbs

Features

• Breakaway design prevents broken wires and circuit de-energization due to vehicular impact
• In-line fuse retained on load side for electrical safety and shock prevention
• Simple installation using only a knife, wire stripper, and crimp tool—no special equipment or potting required
• Eliminates need for tape, extra crimp inserts, resins, and cure time
• Compatible with copper wire using type U or UA contacts and aluminum wire using type UA or LA contacts

Downloads & Links

• PDF Instructions
