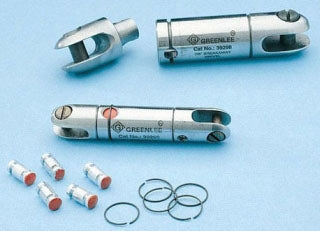

Breakaway Pin Kits – Electrical Safety Components

The Breakaway Pin Kits by Greenlee function as mechanical fuses designed to protect expensive cable assemblies by breaking away at a preset load. These kits are used in conjunction with 5/8" breakaway swivels, offering a reliable safety mechanism for electrical distributors and switchgear suppliers involved in wire and cable applications.

Specifications

• Manufacturer: Greenlee
• Manufacturer Part #: 50392956
• Application: Use with 39290 5/8" Swivel
• Breaking Point Weight: 400 lbs (1.8 kN)
• Color Code: Yellow
• Dimensions (L x W x H): 4.1 in x 2.95 in x 0.35 in
• Weight: 0.01 lbs
• Country of Origin: Canada

Features

• Acts as a mechanical fuse to prevent damage by breaking away at a preset load
• Breakaway pins are replaceable to adjust breakaway values
• Includes cutter and replaceable stripper blade set
