Braid BE24N Flexible Copper Braid Jumper

The Braid BE24N by Burndy is a flexible copper braid jumper designed for electrical distributors and switchgear suppliers requiring reliable solutions to accommodate linear expansion and contraction. It compensates for misalignment and absorbs vibratory movement in electrical equipment and devices, making it suitable for various lighting solutions and wire and cable applications.

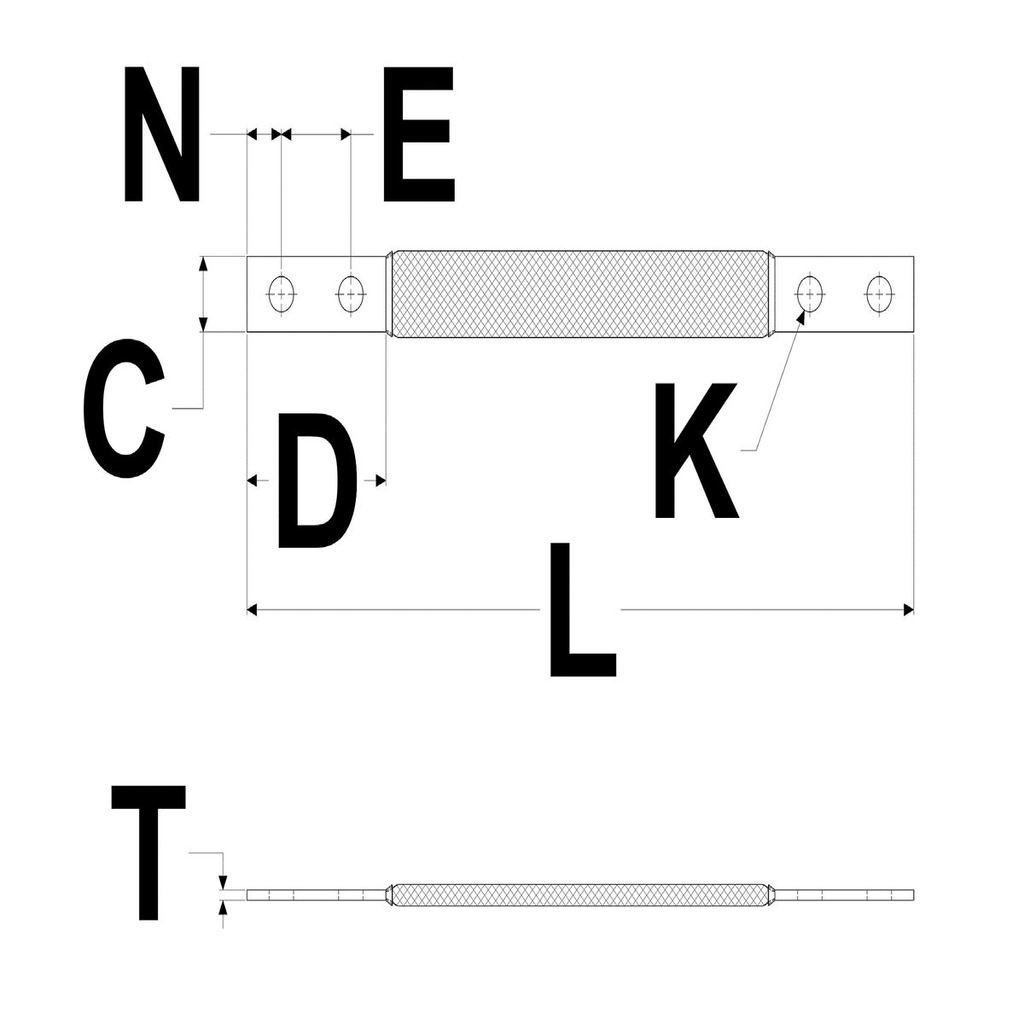

Specifications

• Material: Copper
• Connector Type: Braid
• Number of Braids (Ferrules): 1
• Plated: Yes
• Length Overall: 24 in
• Width (Pad Width): 1.5 in
• Thickness (Dimension T): 0.17 in
• Hole Size: 0.56 in
• Hole Spacing: 1.75 in
• Indoor Amperage Rating: 340 A
• Outdoor Amperage Rating: 405 A
• UL Listed: Yes
• Industry Standard Met: UL467
• Color: White
• Product Weight: 1.27 lb

Features

• Flexible braid jumper construction for enhanced movement absorption
• Designed to take up linear expansion and contraction
• Compensates for misalignment in electrical connections
• Absorbs vibratory movement of electrical equipment and devices
• Plated ferrules for improved conductivity and durability
