BR style 1-inch loadcenter, main circuit breaker, no feed-thru lugs, 100A, single-phase, 24-pole, 24 circuits, 20 spaces, 120/240V, #4-1/0 AWG Cu/Al at 60°C or 75°C wire, NEMA 3R enclosure, c3r box size
SKU: #159332
Part: #BR2024B100R
UPC: 786676444354
BR style 1-inch loadcenter, main circuit breaker, no feed-thru lugs, 100A, single-phase, 24-pole, 24 circuits, 20 spaces, 120/240V, #4-1/0 AWG Cu/Al at 60°C or 75°C wire, NEMA 3R enclosure, c3r box size
SKU: #159332
Part: #BR2024B100R
UPC: 786676444354
Description
BR style 1-inch loadcenter, main circuit breaker, no feed-thru lugs, 100A, single-phase, 24-pole, 24 circuits, 20 spaces, 120/240V, NEMA 3R enclosure – Loadcenter

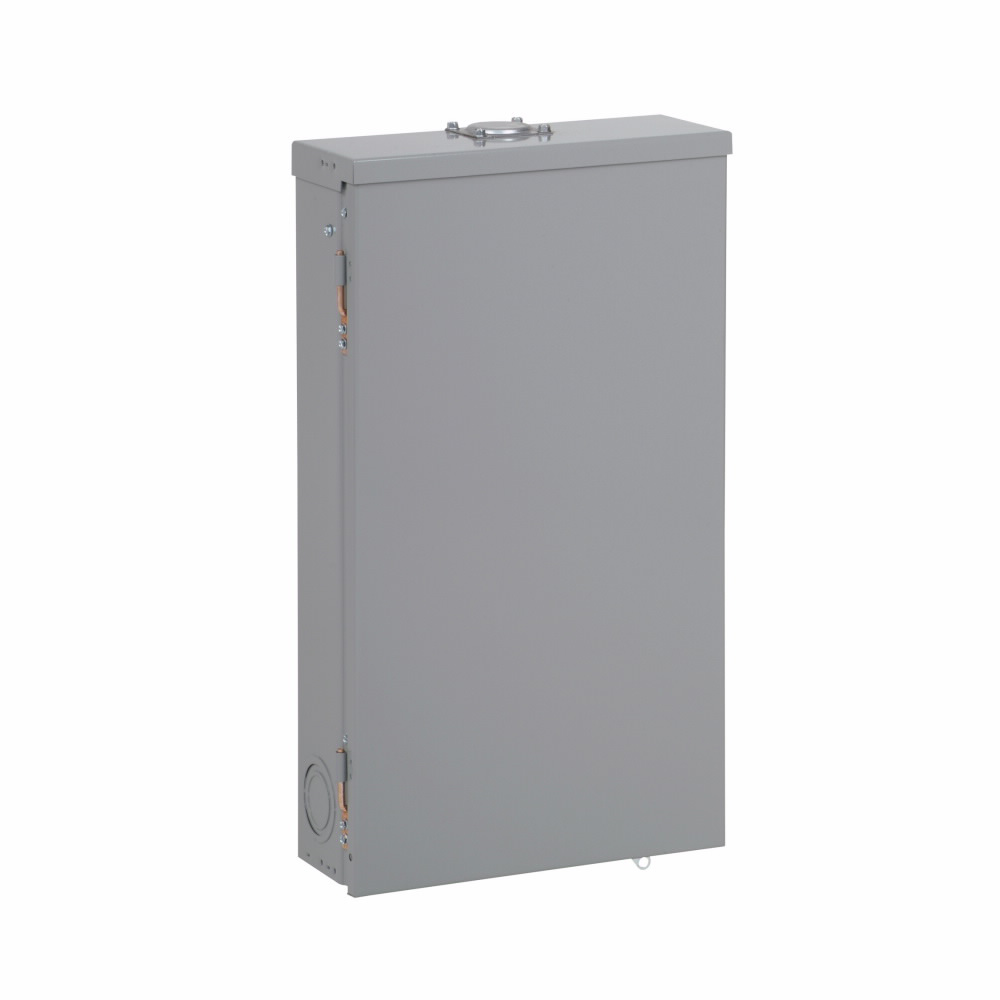

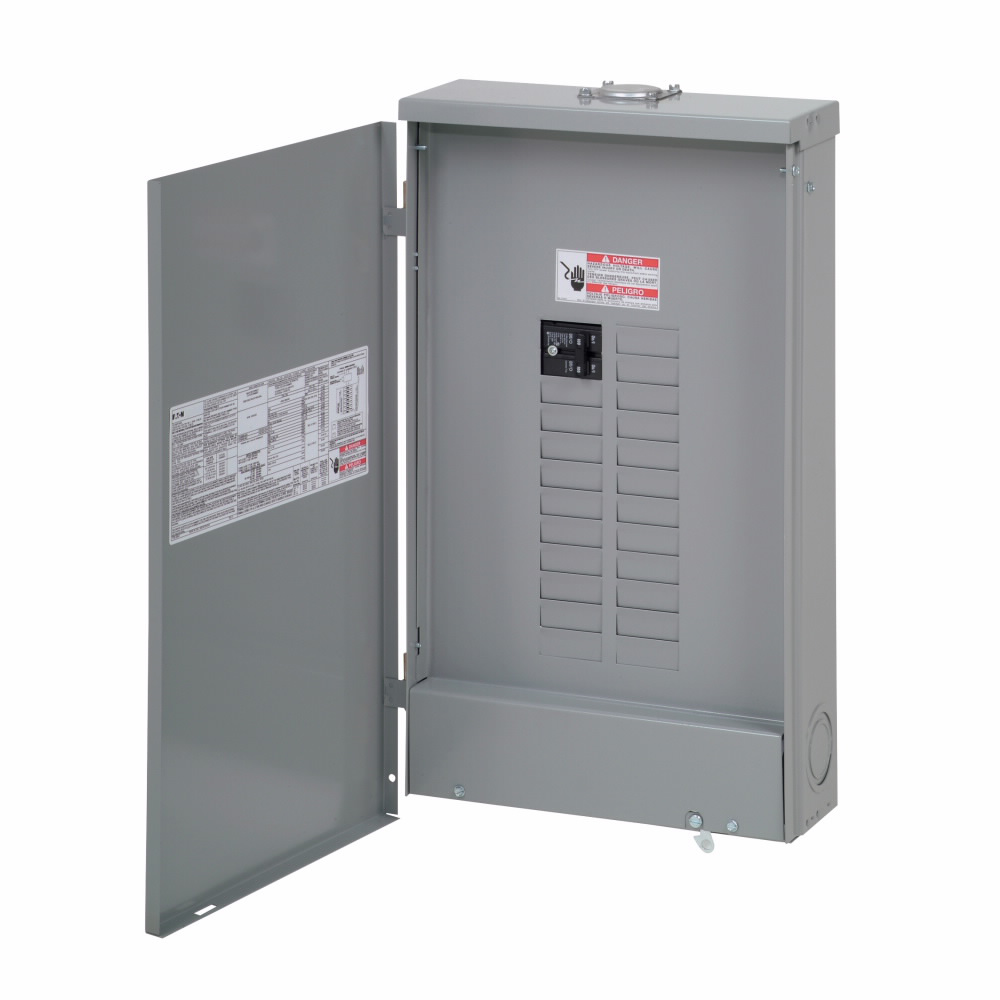

This Eaton BR style 1-inch loadcenter is designed for single-phase electrical distribution with a 100 amp main circuit breaker. It supports up to 24 circuits with 20 spaces, suitable for residential and light commercial applications requiring reliable power distribution and circuit protection. The loadcenter is enclosed in a metallic NEMA 3R rated enclosure, providing raintight protection for outdoor or wet locations. It accepts #4-1/0 AWG copper or aluminum wire rated for 60°C or 75°C.
Specifications
- Amperage: 100 amperes
- Number of Circuits: 24
- Number of Phases: 1
- Interrupt Rating: 10 kiloamps
- Bus Material: Aluminum
- Enclosure: 3R
- Enclosure Material: Metallic
- Dimensions (W x H x L): 16.5 in x 6 in x 26.7 in
- Wire Size Range: #4-1/0 AWG Cu/Al at 60°C or 75°C
- Manufacturer: Eaton
- Manufacturer Part #: BR2024B100R
Features
- Main circuit breaker with 100A rating for primary service disconnect and protection
- 24-pole design with 20 available spaces to accommodate branch circuit breakers
- Aluminum bus bars for durability and conductivity
- Metallic NEMA 3R enclosure suitable for outdoor installation
- Compatible with #4-1/0 AWG copper or aluminum wiring
- Raintight enclosure ensures protection against moisture and weather
- Compact dimensions for efficient space utilization
