BR style 1-inch loadcenter - Electrical Loadcenter

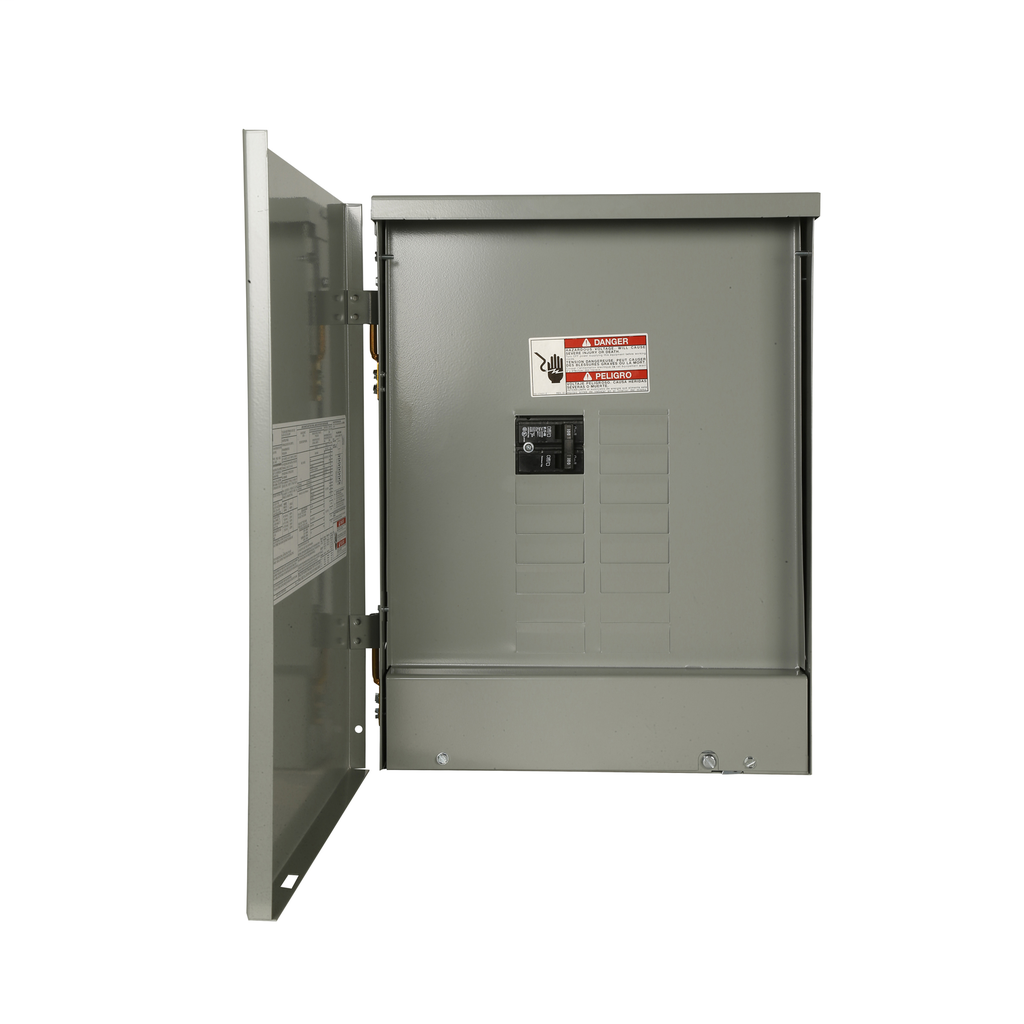

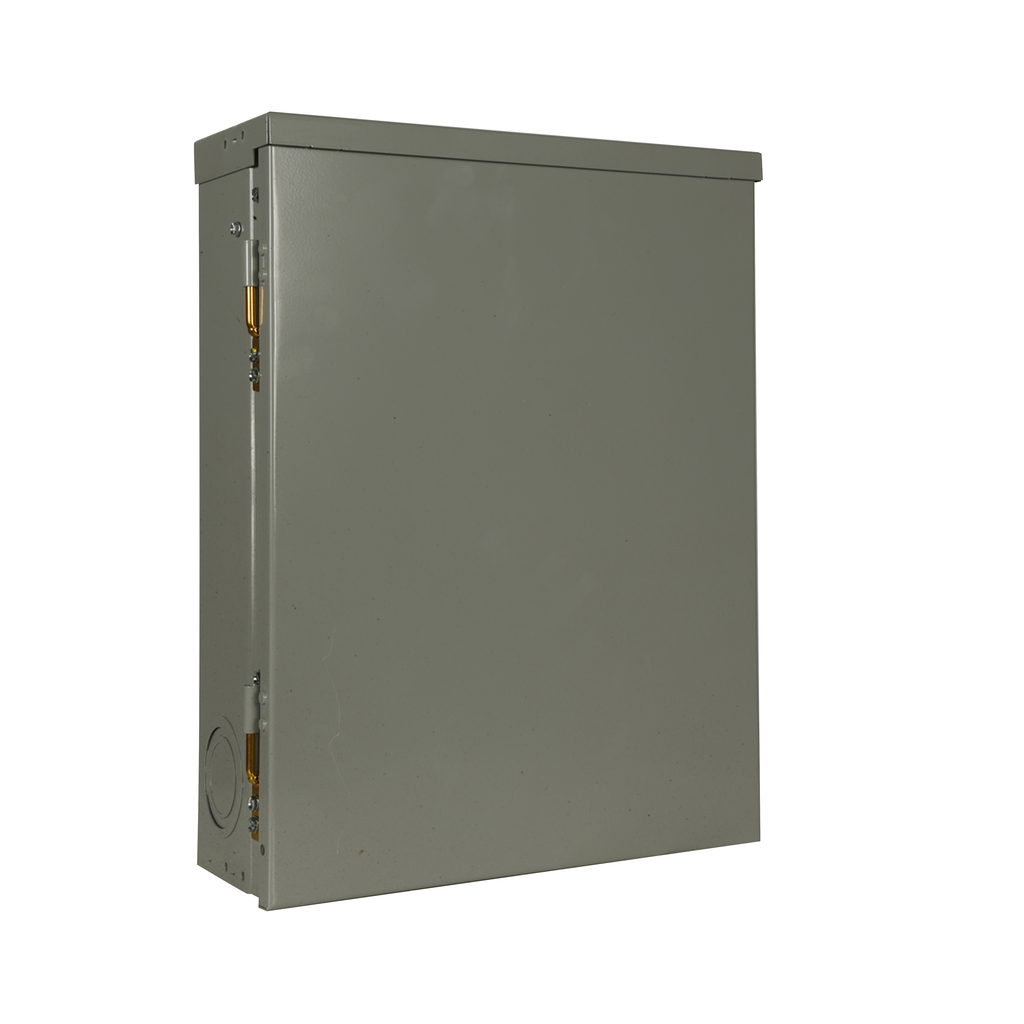

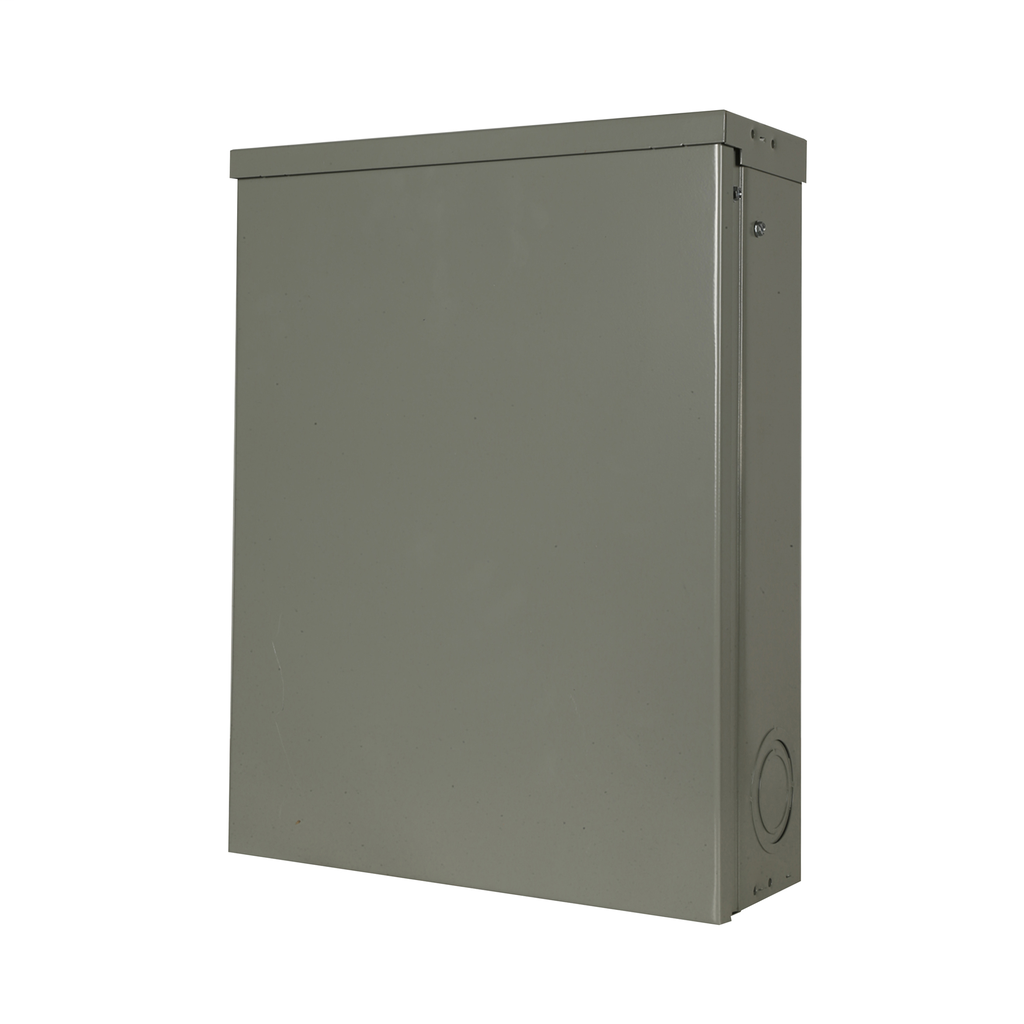

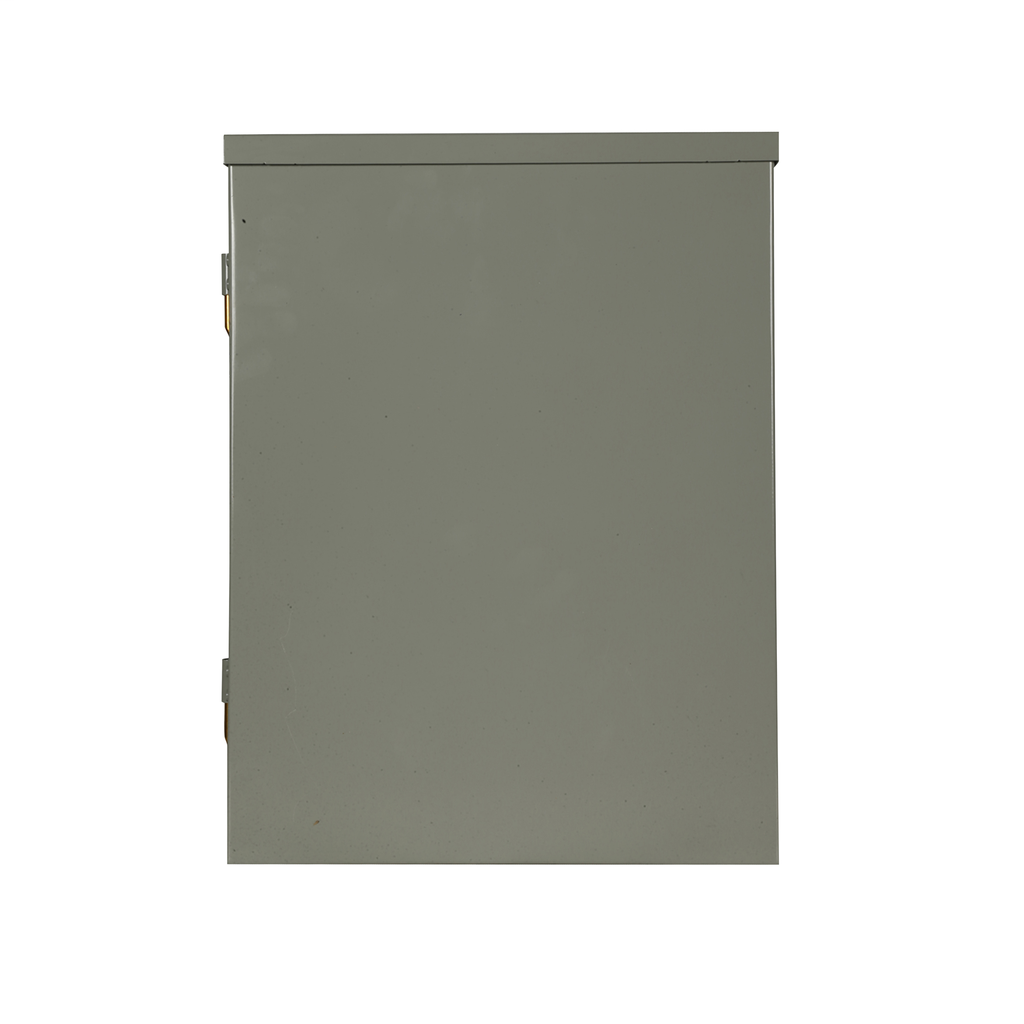

The BR style 1-inch loadcenter by Cutler-Hammer is an outdoor NEMA 3R rated electrical loadcenter designed for single-phase 120/240 VAC applications. It serves as a reliable main breaker loadcenter suitable for residential and light commercial electrical distribution needs. This product is ideal for electrical distributors and switchgear suppliers requiring robust and durable loadcenters for wire and cable management in outdoor environments.

Specifications

• Manufacturer: Cutler-Hammer
• Manufacturer Part #: BR1224B100R
• Amperage: 100 amperes
• Number of Circuits: 24
• Number of Wires: 3
• Number of Phases: 1
• Interrupt Rating: 10 kiloamps
• Bus Material: Aluminum
• Enclosure Material: Metallic
• NEMA Rating: 3R (Outdoor)
• Product Weight: 22.6 lbs
• UPC: 786676443951
• Box Dimensions: 14.3" W x 5.2" D x 18.75" H
• Bus Bar Ampere Rating: 125 Amps Max
• Incoming Main: Type BR Main Breaker
• Loadcenter Electrical Rating: 120/240 VAC, Single Phase
• Bus Bar Material: Tin Plated Aluminum
• Trim Type: Outdoor Surface
• Trim Paint: ANSI 61 Light Gray
• Wire Size Range Cu/Al: #4-1/0

Features

• Steel backpan for reliable breaker mounting
• Single keyhole mounting for easy alignment and leveling
• Split neutral bar assembly for better load wire management
• Drywall markings on enclosure for flush mounting depth indication

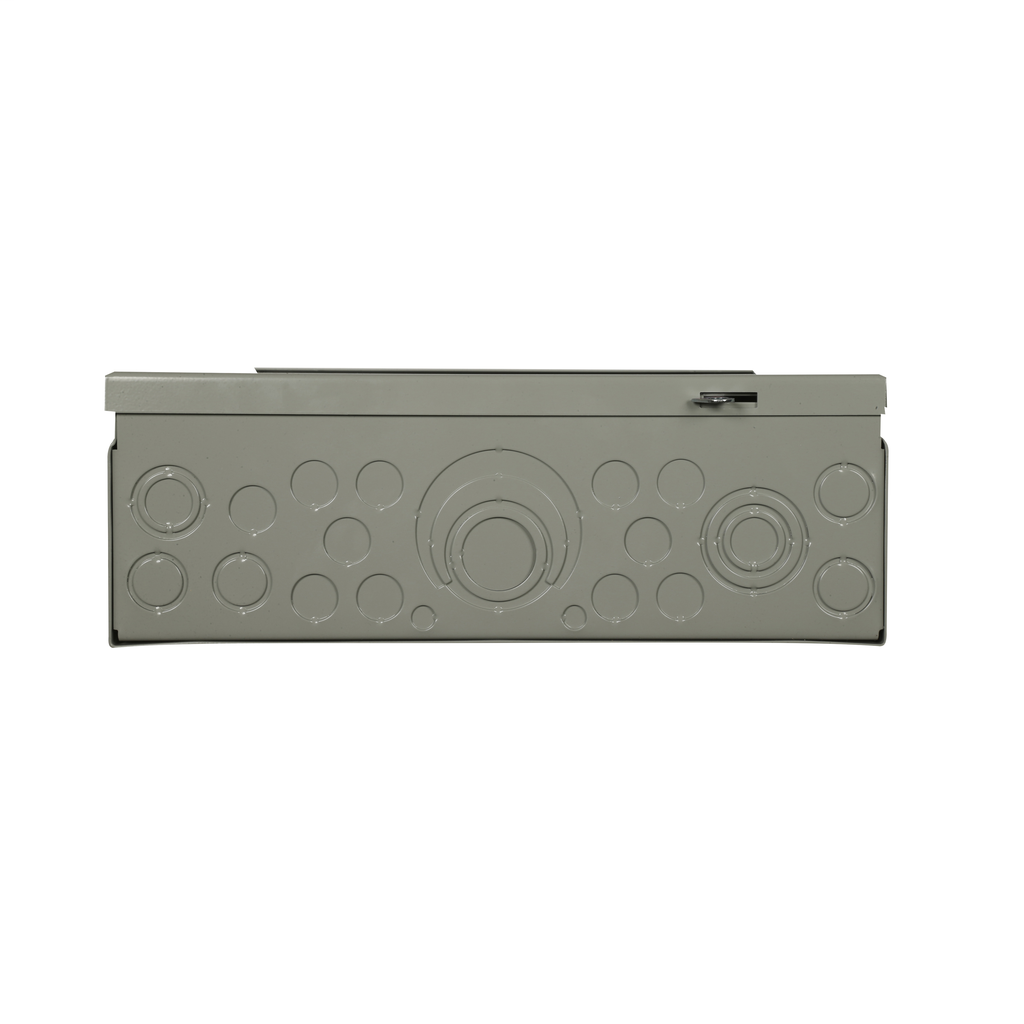

• Top or bottom feed capable for flexible installation
• Outdoor NEMA 3R rated enclosure suitable for outdoor applications
• 10-year limited warranty on BR loadcenters and breakers
