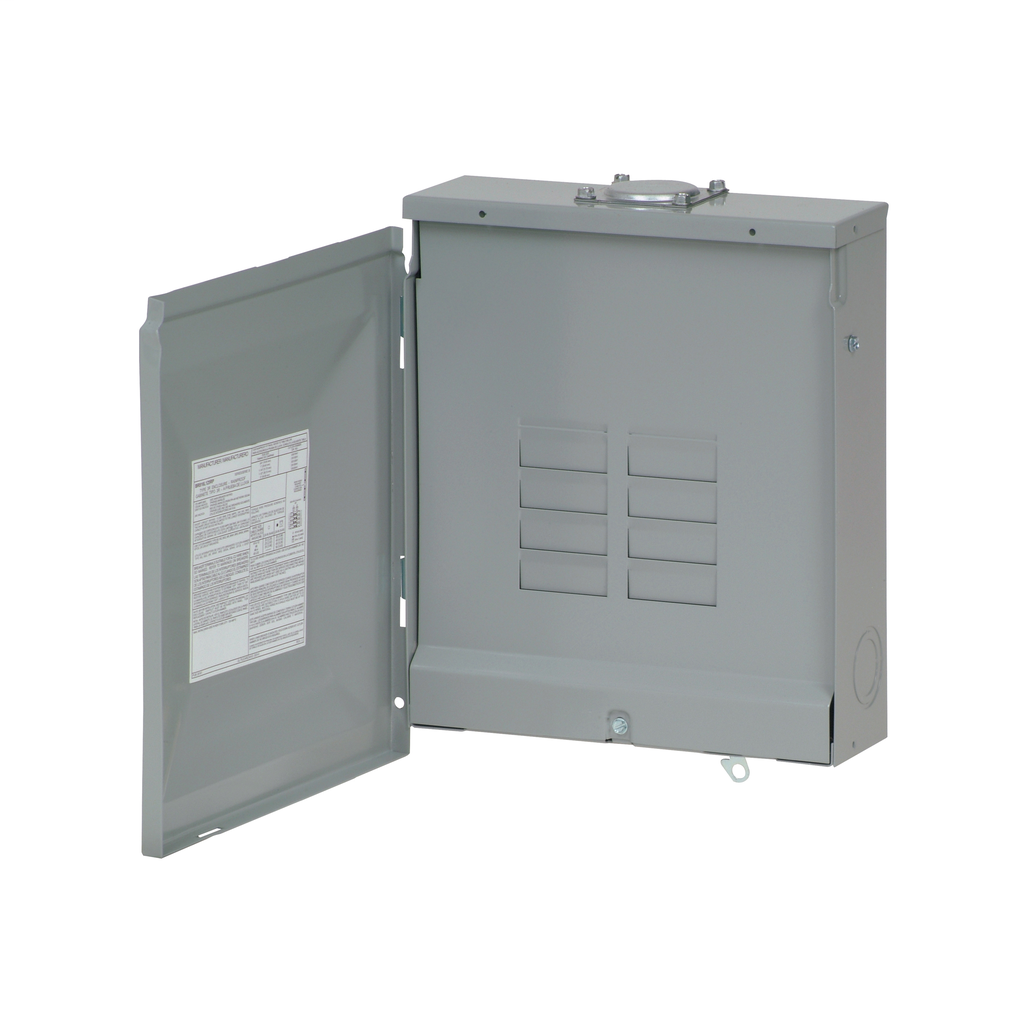

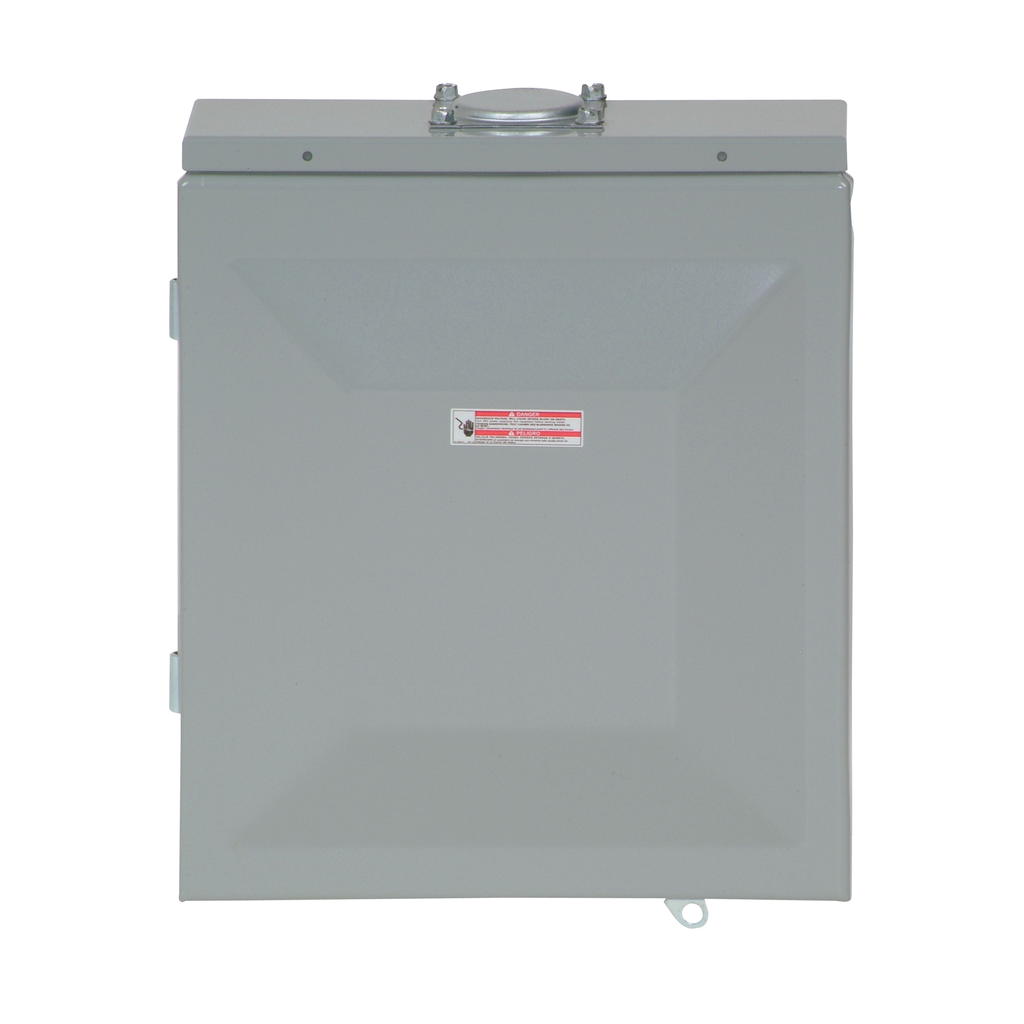

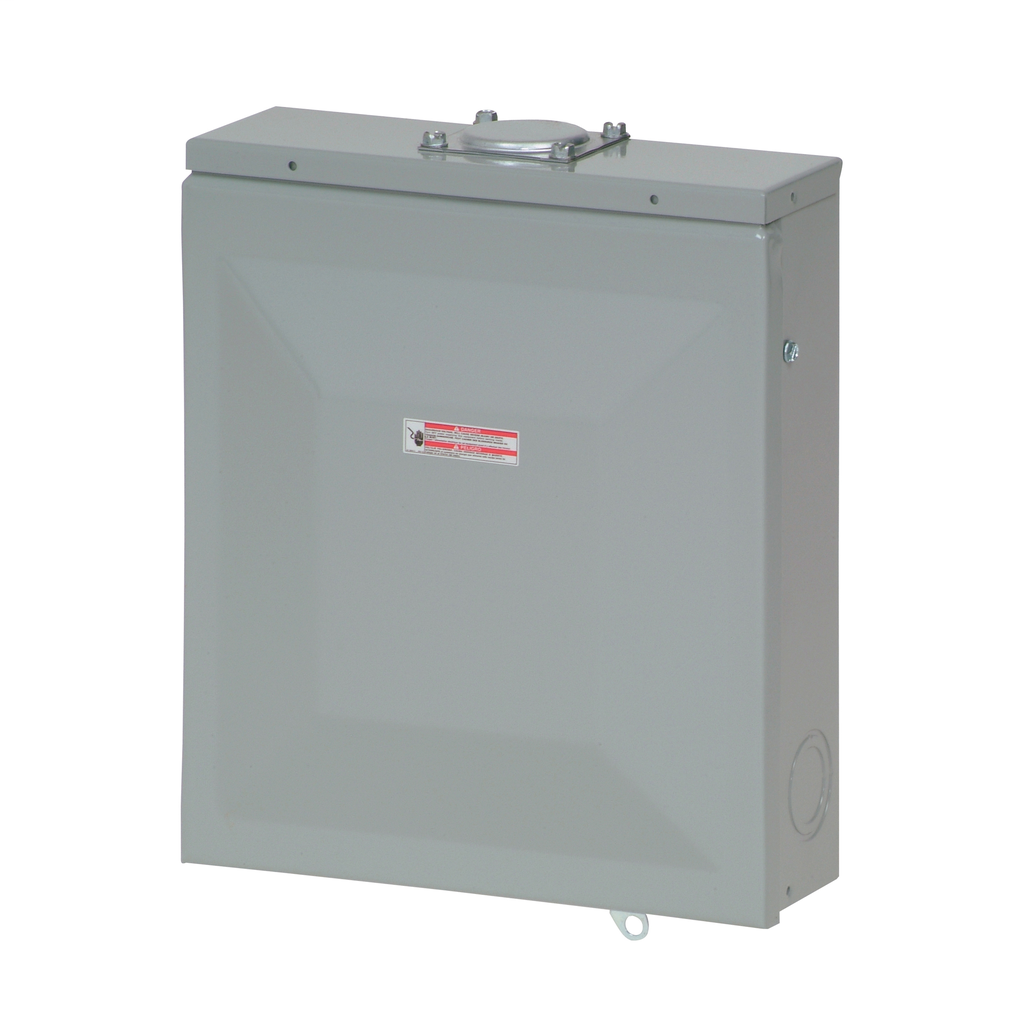

BR style 1-inch loadcenter – Electrical Loadcenter

The BR style 1-inch loadcenter by Cutler-Hammer is a robust electrical distribution panel designed for residential and light commercial applications. This loadcenter provides reliable power distribution with a 125 ampere main capacity, suitable for single-phase systems. Its metallic enclosure with a NEMA 3R rating ensures protection against rain and outdoor elements, making it ideal for both indoor and outdoor installations. The loadcenter is equipped with 16 circuits and features aluminum bus material, offering durable and efficient current conduction. With a 10 kiloamps interrupt rating, it supports safe circuit protection and switching. The unit accommodates three wires and is manufactured by Cutler-Hammer, a trusted name in electrical distribution and switchgear supply.

Specifications

• Manufacturer: Cutler-Hammer
• Amperage: 125 amperes
• Number of Circuits: 16
• Number of Wires: 3
• Number of Phases: 1
• Interrupt Rating: 10 kiloamps
• Bus Material: Aluminum
• Enclosure Material: Metallic
• NEMA Rating: 3R
• Product Weight: 11.7 lbs

Features

• Metallic enclosure with NEMA 3R rainproof rating for outdoor use
• 16 circuit capacity for expanded electrical distribution
• Aluminum bus for corrosion resistance and efficient conductivity
• Single-phase design suitable for residential and light commercial power distribution
• Compatible with Cutler-Hammer branch circuit breakers and accessories
