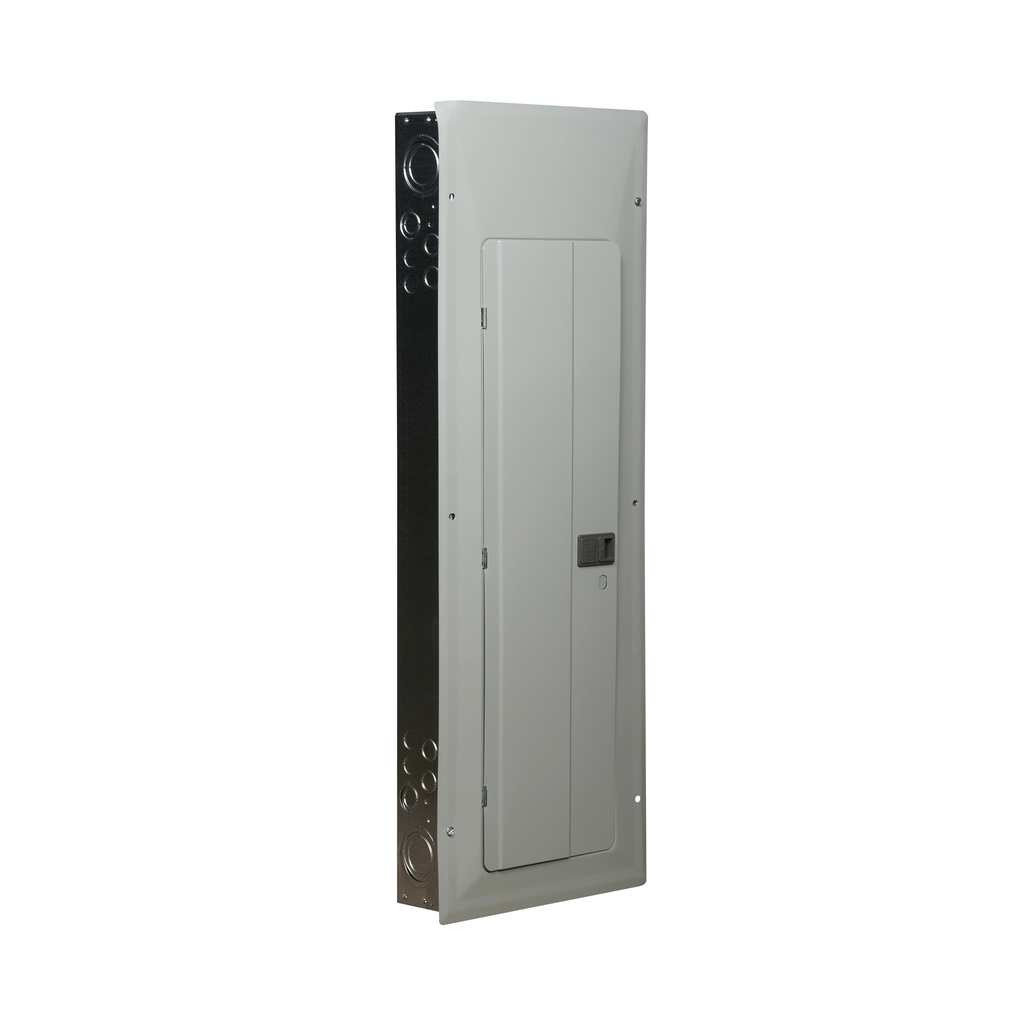

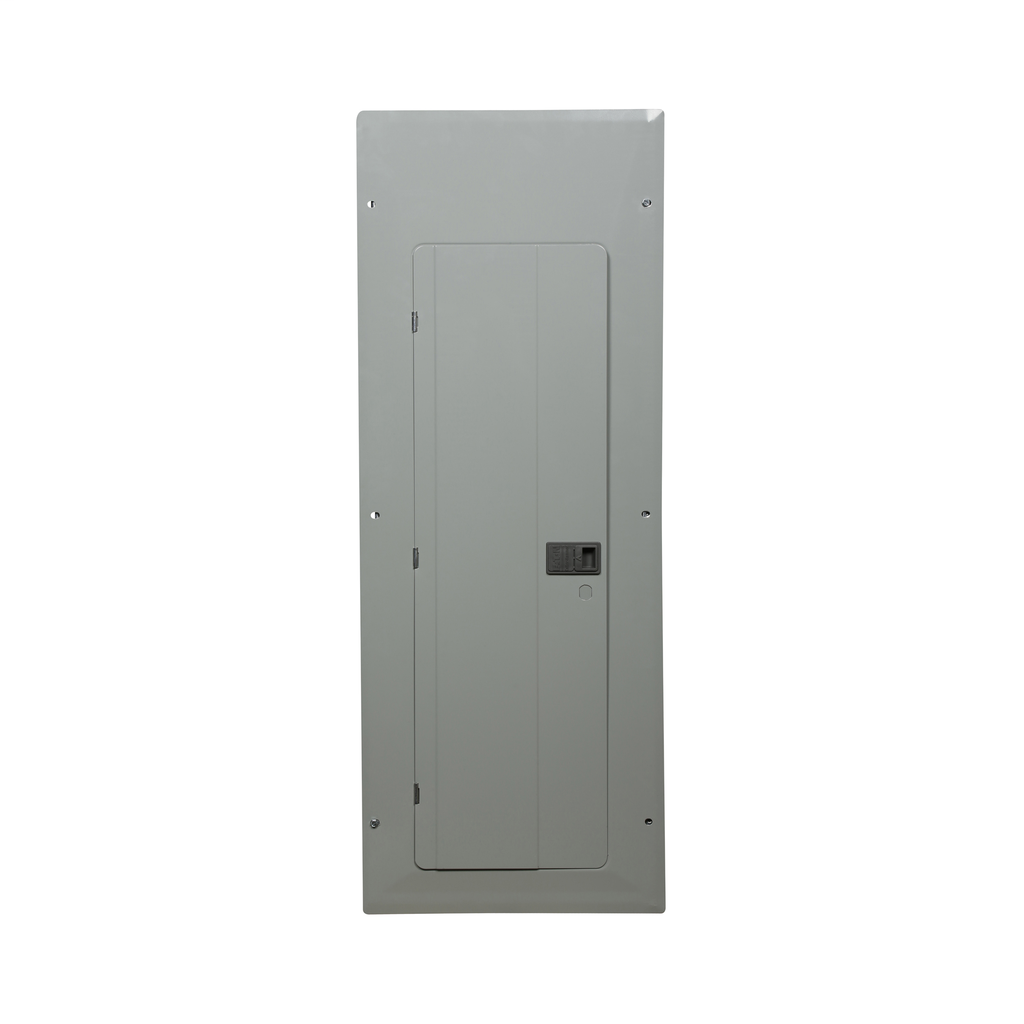

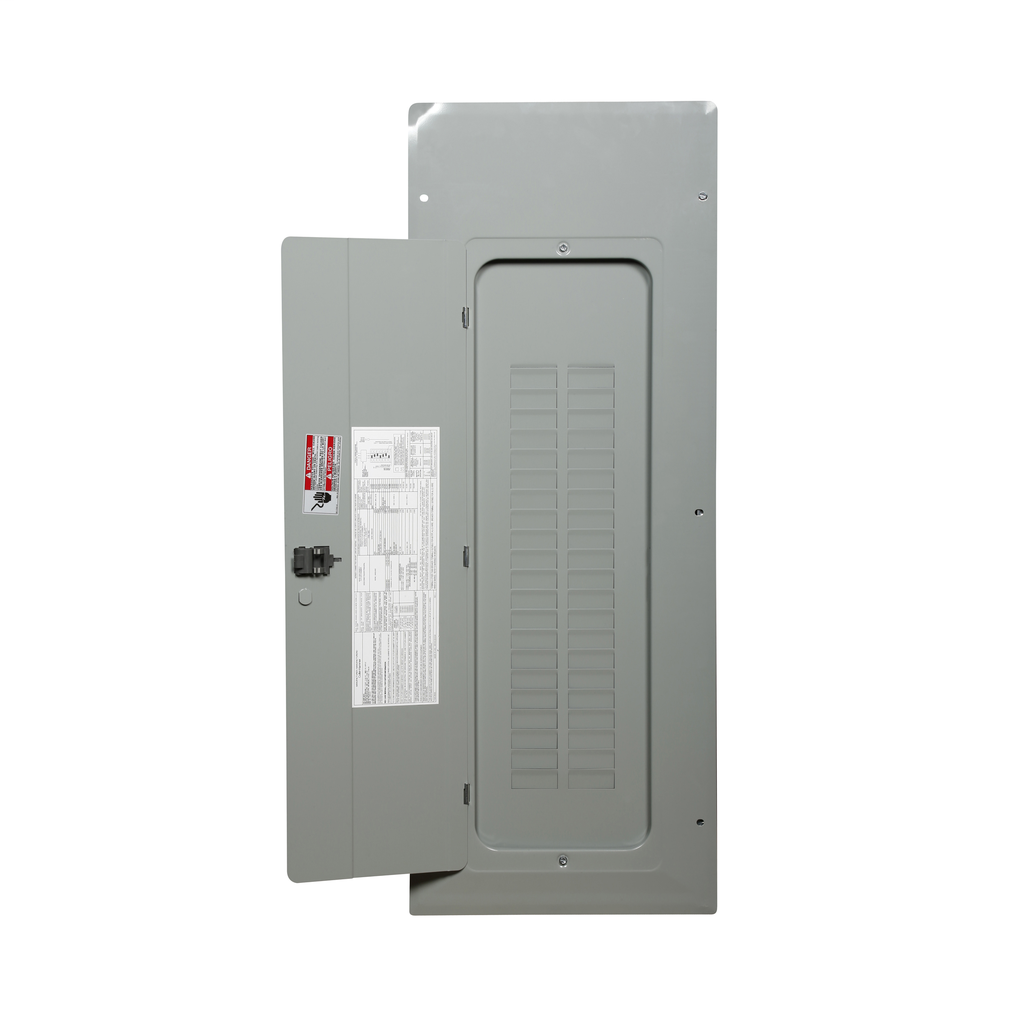

BR style 1-inch commercial loadcenter – 3-Phase Loadcenter

The BR style 1-inch commercial loadcenter by Cutler-Hammer is designed for reliable electrical distribution in light commercial and industrial applications. This indoor NEMA 1 rated loadcenter supports 120/240 VAC, 3-phase power systems with a main lug only configuration. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring a compact, durable loadcenter with flexible mounting and circuit capacity.

Specifications

• Manufacturer: Cutler-Hammer
• Amperage: 225 amperes
• Number of Circuits: 42
• Number of Wires: 4
• Number of Phases: 3
• Interrupt Rating: 25 kiloamps
• Bus Material: Aluminum
• Enclosure Material: Metallic
• Mounting Type: Combination
• NEMA Rating: 1 (Indoor)
• Product Weight: 36.8 lbs
• Manufacturer Part #: 3BR4242L225

Features

• Combination mounting for flexible installation options
• Aluminum bus bars for reliable electrical conductivity
• Metallic enclosure suitable for indoor applications
• Supports 42 circuits for extensive branch breaker capacity
• 25 kA interrupt rating for short circuit protection
• Designed for three-phase, 120/240 VAC power distribution
