BR Style 1 in Loadcenter
SKU: #159739
Part: #BR3042L125
UPC: 786685857060
BR Style 1 in Loadcenter
SKU: #159739
Part: #BR3042L125
UPC: 786685857060
Total Price: $492.73 per each Sold in increments of 1 each
Description

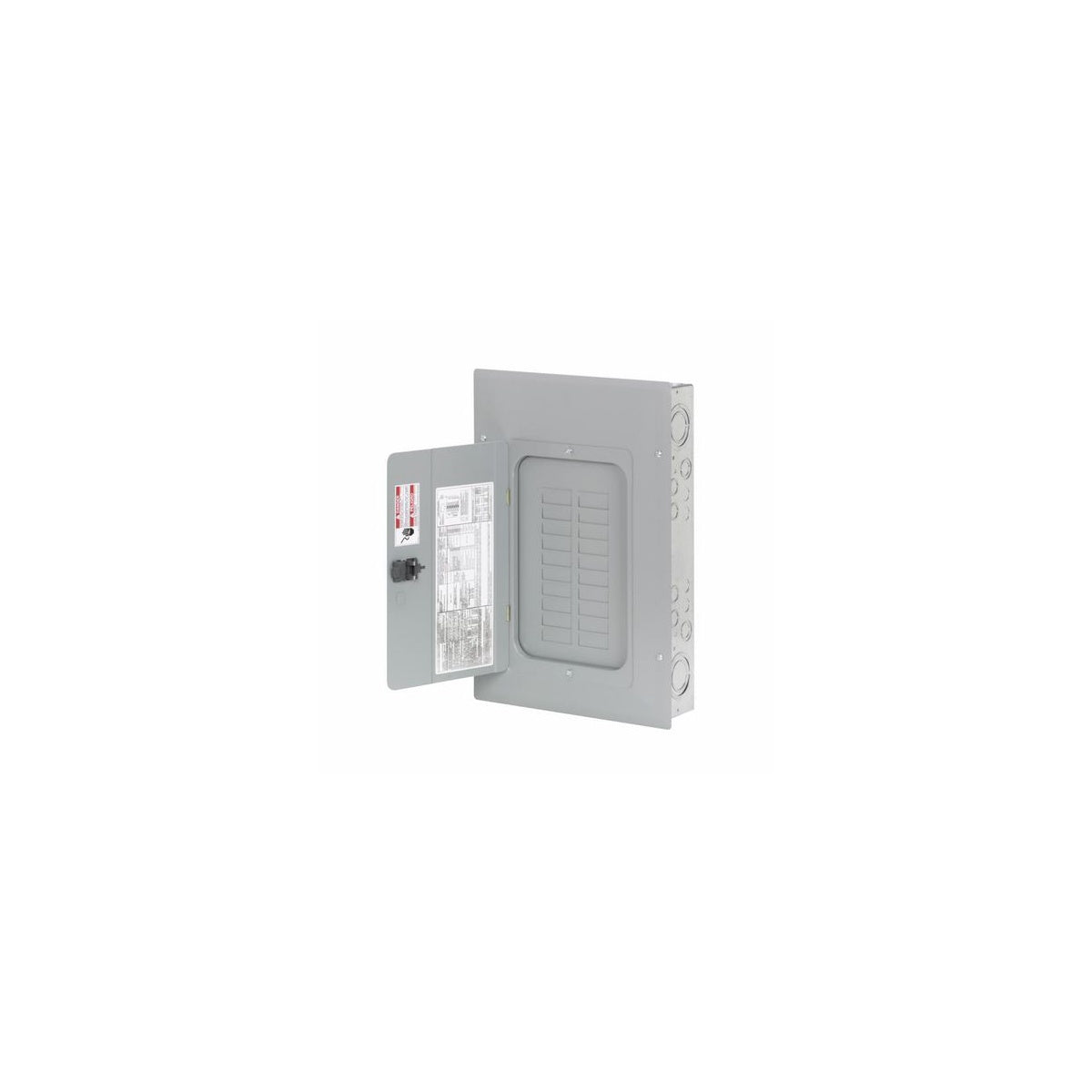

BR Style 1 in Loadcenter – Electrical Load Center
The Eaton BR Style 1 in Loadcenter (Model BR3042L125) is a single-phase electrical load center designed for residential and light commercial applications. It serves as a reliable component for electrical distributors and switchgear suppliers, providing a secure enclosure for circuit breakers and electrical wiring. This load center supports 120/240V systems and is compatible with Type BR 1 inch breakers, making it suitable for wire and cable management in various installations.
Specifications
- Amperage: 125 amperes
- Bus Material: Aluminum
- Number of Wires: 3
- Number of Phases: 1
- Enclosure Material: Metallic
- Enclosure Type: NEMA 1
- Number of Circuits: 42
- Number of Spaces: 30
- Wire Size: #6-2/0 AWG Cu/Al
- Box Size: D1
- Voltage Rating: 120/240V
- Type: Split neutral
- Dimensions: Height 29.13 in, Width 14.31 in, Length 3.88 in
- Product Weight: 10 lb
- Manufacturer Part #: BR3042L125
- Used With: Type BR 1 in breakers
Features
- Includes cover for secure enclosure
- Compatible with Eaton Type BR Arc Fault Circuit Breakers and Loadcenters
- Comes with BREQS125 hold-down screw accessory
- UL 67 and UL 50 certified for safety and quality
- Metallic enclosure designed for indoor use with NEMA 1 rating
- Split neutral design enhances wiring flexibility
- 10-year warranty for reliable performance
