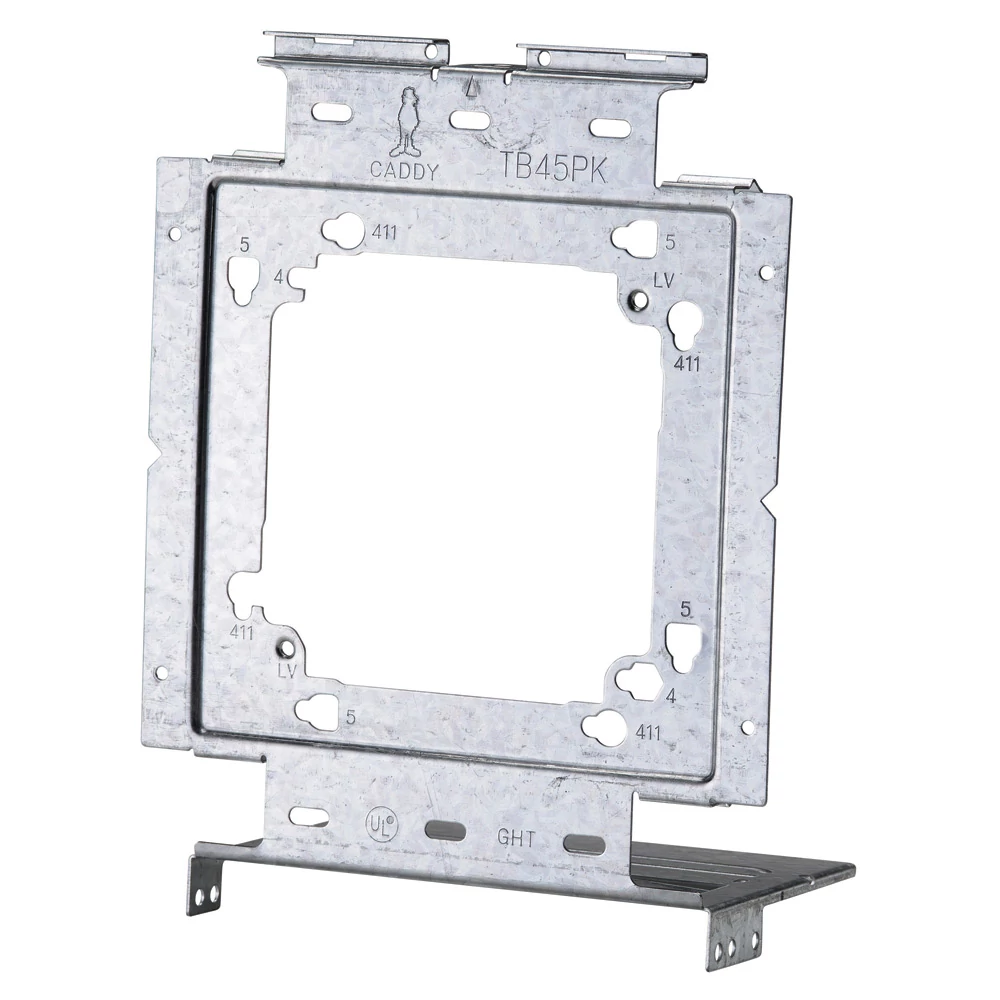

Box Mounting Plate with Far Side Support, 4", 4 11/16", 5" Box – Electrical Distributor Mounting Solutions

The Box Mounting Plate with Far Side Support by nVent Caddy is designed for secure and flexible mounting of electrical boxes in stud walls. Ideal for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers, this pregalvanized steel mounting plate supports 4", 4 11/16", and 5" box sizes. It offers compatibility with heavy-duty telescoping brackets and allows for versatile installation on metal or wood studs with stud spacing from 16" to 24". This product is engineered to facilitate quick, repeatable installations in both prefabrication and job-site adjustments.

Specifications

• Manufacturer: nVent Caddy
• Manufacturer Part Number: TB45PK
• Material: Steel
• Finish: Pregalvanized
• Box Sizes Supported: 4", 4 11/16", 5"
• Country of Origin: China
• Product Weight: 4.88 lbs
• Order Minimum Quantity: 25 pieces

Features

• Far side support enables installation on any stud depth and width
• Multiple keyhole configurations for ease of installation and visual confirmation
• Compatible with heavy-duty telescoping brackets for snap-in mounting
• Flexible installation options allow mounting directly to metal or wood studs
• Low voltage extruded holes and the ability to remove/reinstall screws multiple times without compromising integrity
• Works with vertically or horizontally mounted single and double gang adjustable mud rings
• Prefabrication tab holds strong without locking, facilitating job-site adjustments

Downloads and Links

• nVent CADDY Technical Support and Product Information
• nVent CADDY Heavy Duty Telescoping Bracket & Box Mounting Plate Datasheet (PDF)
• Installation Instructions for FM4/FM411 and TB45P/TB45PK Series
