Box Extender, levels and supports the wiring device where the box is set back from the wall surface extends the box up to an 1-1/2. 2 hour fire rating. Comes with two #6 x 2 screws.
SKU: #71123
Part: #BE1BAG
UPC: 018997519054
Box Extender, levels and supports the wiring device where the box is set back from the wall surface extends the box up to an 1-1/2. 2 hour fire rating. Comes with two #6 x 2 screws.
SKU: #71123
Part: #BE1BAG
UPC: 018997519054
Description

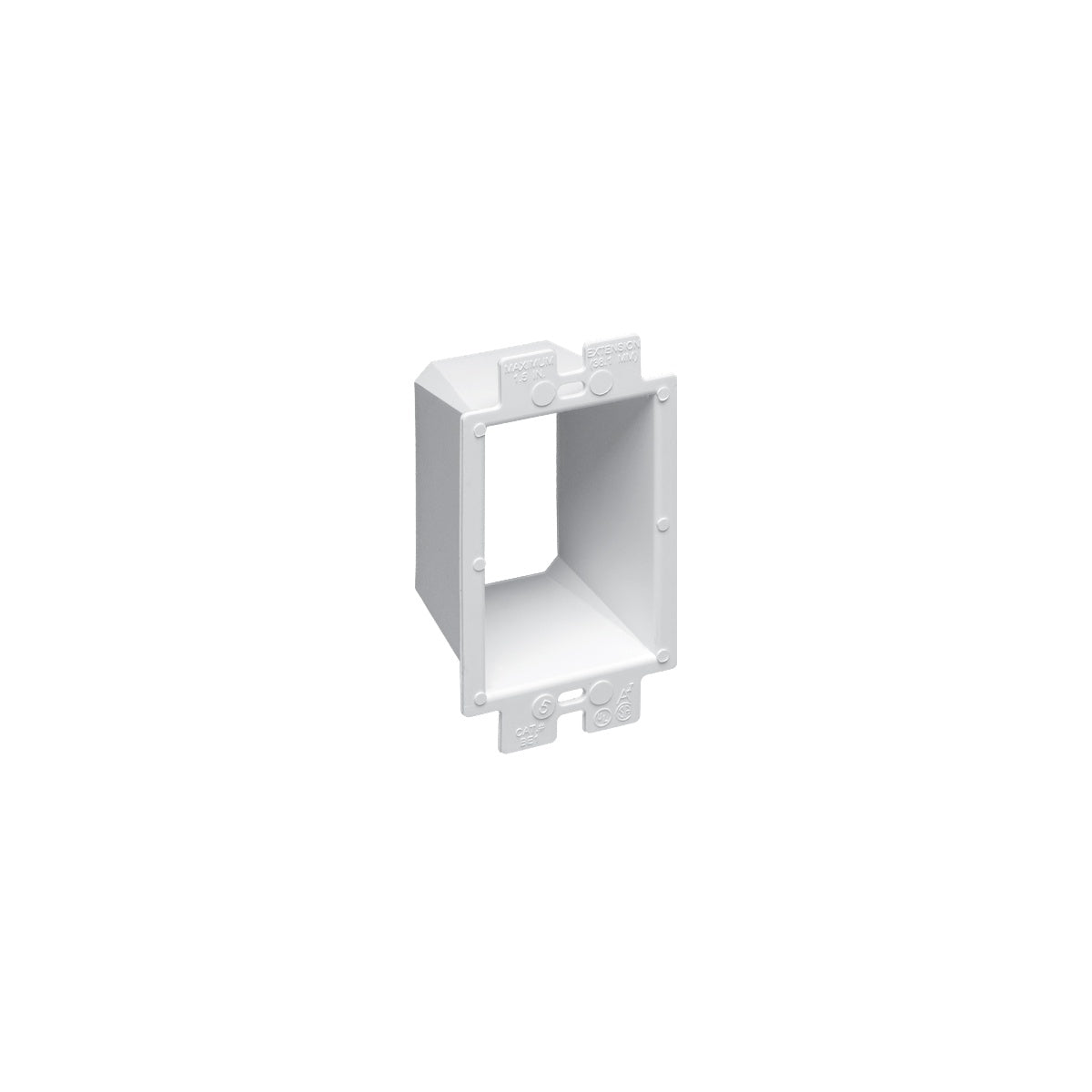

Box Extender BE1BAG – Electrical Box Extension for Wiring Devices
The Arlington Industries Box Extender BE1BAG is designed to level and support wiring devices where the electrical box is set back from the wall surface. This single-gang extender extends the box up to 1-1/2 inches, ensuring a flush, fully supported installation. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring compliant and safe box extension solutions.
Specifications
- Manufacturer: Arlington Industries
- Manufacturer Part #: BE1BAG
- Material: Plastic
- Color: White
- Product Weight: 0.0500 lbs
- Dimensions: 2.313" (A) x 4.188" (B) x 1.813" (C)
- UPC: 018997519054
- Fire Rating: 2-hour
- Compliance: NEC 2017 Article 314.20 for set back boxes
Features
- Levels and supports wiring devices where the box is set back from the wall surface
- Extends electrical boxes up to 1-1/2 inches
- Works with all standard single-gang devices, switches, and GFCIs
- Compatible with handy boxes and 4” square electrical boxes with plaster rings
- Manufactured from 105°C continuous use, 94V0 rated flame retardant plastic for safer installations
- Includes two #6 x 2” long screws for mounting
- Non-conductive design prevents arcing and shorting in steel boxes by creating a barrier between box and device screws
- Patented design
