Description

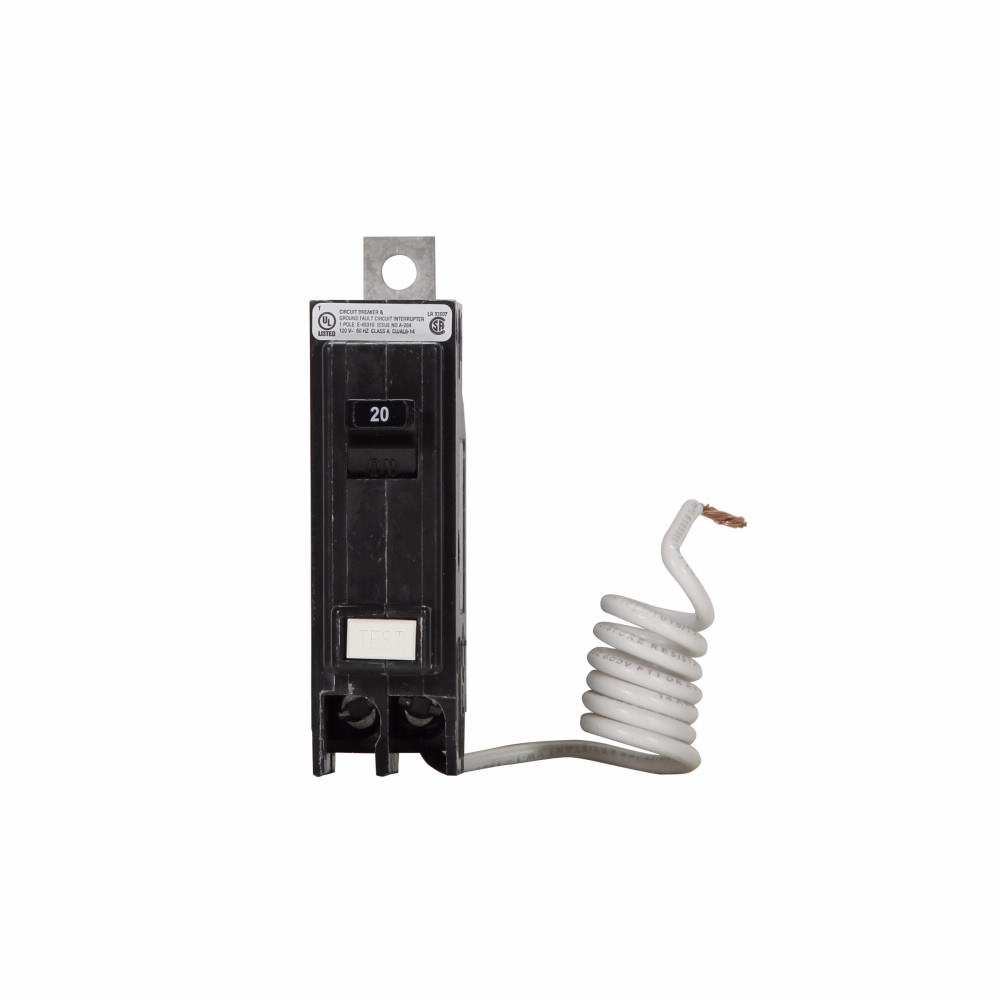

This Bolt-On Mount Type QB Ground Fault Circuit Interrupter provides essential electrical protection for residential and business applications. The single-pole 20 amperes breaker features a 5 mA trip sensitivity for precise ground fault detection in critical installations.
- Certification: UL 489 listed for safety compliance in accordance with national electrical standards
- Protection: 10 kAIC interrupt rating for effective short circuit defense in demanding electrical environments
- Voltage: Compatible with standard 120/240 volt systems for versatile installation options
- Connection: Accommodates #14-10 AWG copper wire for secure and reliable electrical connections
- Dimensions: Compact 1 inch x 1 inch x 1 inch design with .4 pounds weight for easy installation
Specifications
- Special features: 5 mA Trip Sensitivity
- Interrupt rating: 10 kAIC
- Type: Ground fault circuit breaker
- Wire size: #14-10 AWG Cu
- Circuit breaker type: QBGF
- Trip rating: 5 mA trip sensitivity
- Mounting Method: Bolt-on
- Voltage rating: 120/240 V
- Amperage Rating: 20 A
- Trip Type: Non-Interchangeable
- Number of poles: Single-pole
General
- UPC: 786680130960
- Product Length/Depth: 1 in
- Product Height: 1 in
- Product Width: 1 in
- Product Weight: .4 lb
- Warranty: 1 year
- Certifications: UL 489
Downloads
Brochures
Loadcenters And Circuit BreakersMore Information
Manufacturer Catalog Number
QBGFT1020
Weight
.4300
Length
1
Width
1
Height
1
Amperage
20 amperes
Interrupt Rating
10 kiloamps
Trip Type
Non-Interchangeable
Type
Ground Fault Circuit Breaker
Voltage
120/240 volts
