BLH250P16DLPSQ High Bay Lighting Fixture

The BLH250P16DLPSQ is an indoor high bay lighting fixture designed for use below 25 feet, suitable for 250W metal halide lamps. It features a heavy die-cast aluminum housing with a clear acrylic Lexalite prismatic refractor for long-term resistance to yellowing. This fixture is ideal for electrical distributors and lighting solution providers seeking reliable, efficient illumination for commercial and industrial spaces.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: BLH250P16DLPSQ
• Input Wattage: 278 watts
• Lumens: 23,800 lumens
• Efficacy: 85 lumens per watt
• Product Weight: 27.4 lbs
• Color: Prismatic
• UL Listed for 65° C (149° F) ambient temperature
• Damp location rated
• Lamp Type: ED28, 250W Metal Halide
• Ballast Type: Quad Tap, factory wired for 277V (120/208/240/277V selectable)
• Start Up Time: 3 - 5 minutes
• Restrike Time: 10 - 20 minutes
• Socket: Mogul base open rated socket

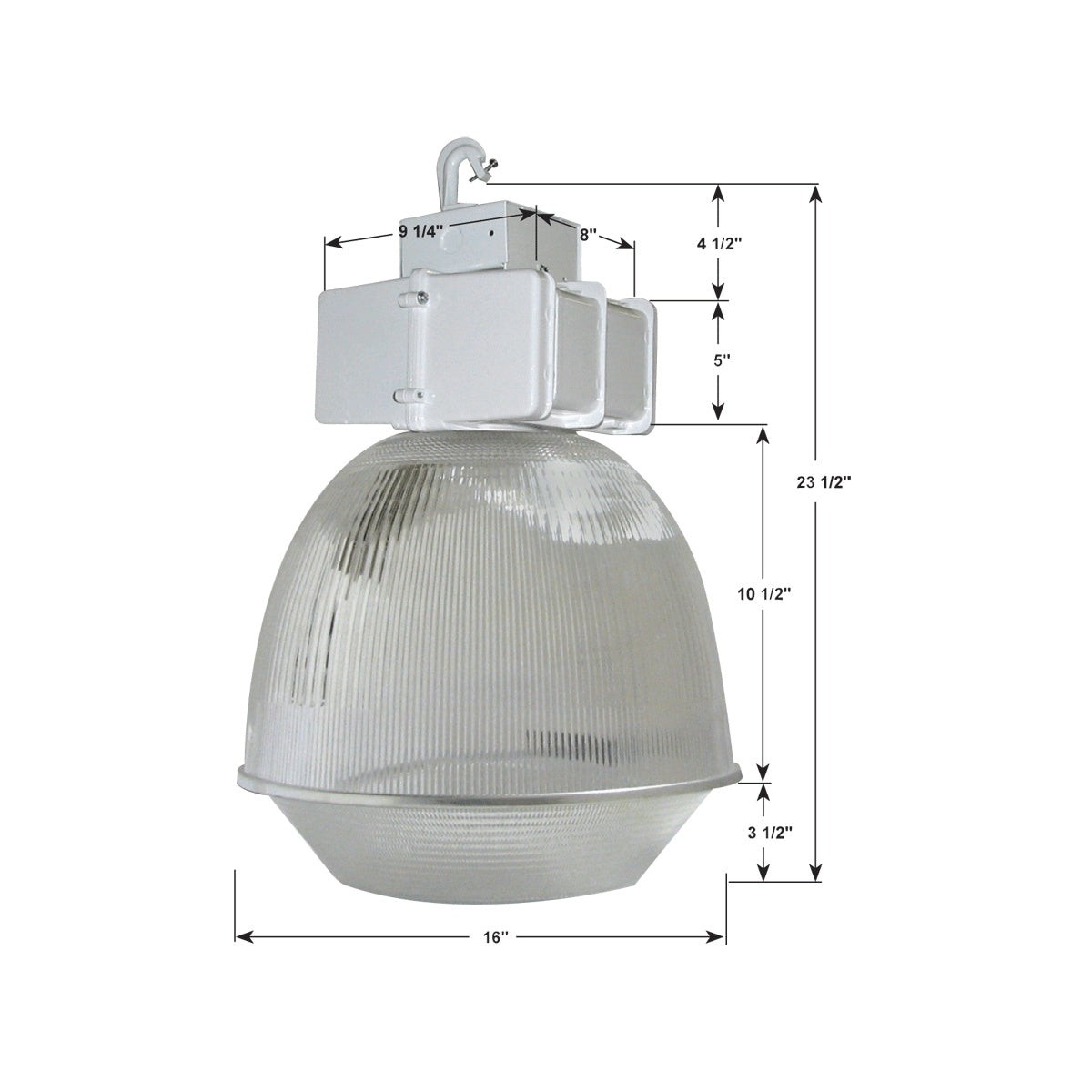

• Dimensions: 23 1/2" height x 16" diameter

Features

• Heavy die-cast aluminum housing with powder coat finish for durability
• Clear acrylic Lexalite prismatic refractor with seven adjustable light distribution patterns
• Multi-position adjustable reflector bracket for precise optical control
• Removable steel wiring compartment door for quick and easy mounting
• Supplied with safety hook and 3-foot cord for secure installation
• Pulse Start metal halide technology for increased lamp life, lumen maintenance, and color uniformity
• CSA Certified for indoor locations
• Complies with 2005 NEC code for open rated lamps and sockets
• Buy American Act compliance available upon request

Downloads & Links

• Instructions
• Spec Sheet
