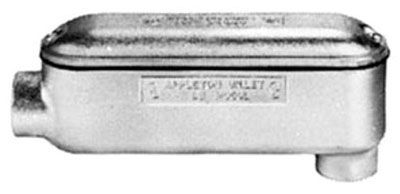

BLB100M, IMC/Rigid Conduit Outlet Body - Mogul Conduit Outlet Body

The Appleton‚Ñ¢ BLB100M IMC/Rigid Conduit Outlet Body is designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). It features a larger body size to facilitate the pulling of large and heavy conductors, providing additional wiring area with a specially designed raised cast cover. Ideal for electrical distributors and switchgear suppliers, this conduit body supports pulling straight, 45-degree, or 90-degree angle turns and is suitable for making taps and splices in wire and cable installations.

Specifications

• Material: Chromate
• Installation: Taper Threaded
• Product Weight: 4.01 lbs
• Manufacturer: Appleton
• Manufacturer Part #: BLB100M
• UPC: 781381459419

Features

• Larger body size facilitates pulling of large and heavy conductors
• Specially designed raised cast covers provide additional wiring area
• Ideal for pulling straight, 45¬∞ or 90¬∞ angle turns and making taps and splices
• Suitable for use with threaded rigid metal conduit and IMC
• Includes assembled cover and neoprene gasket
