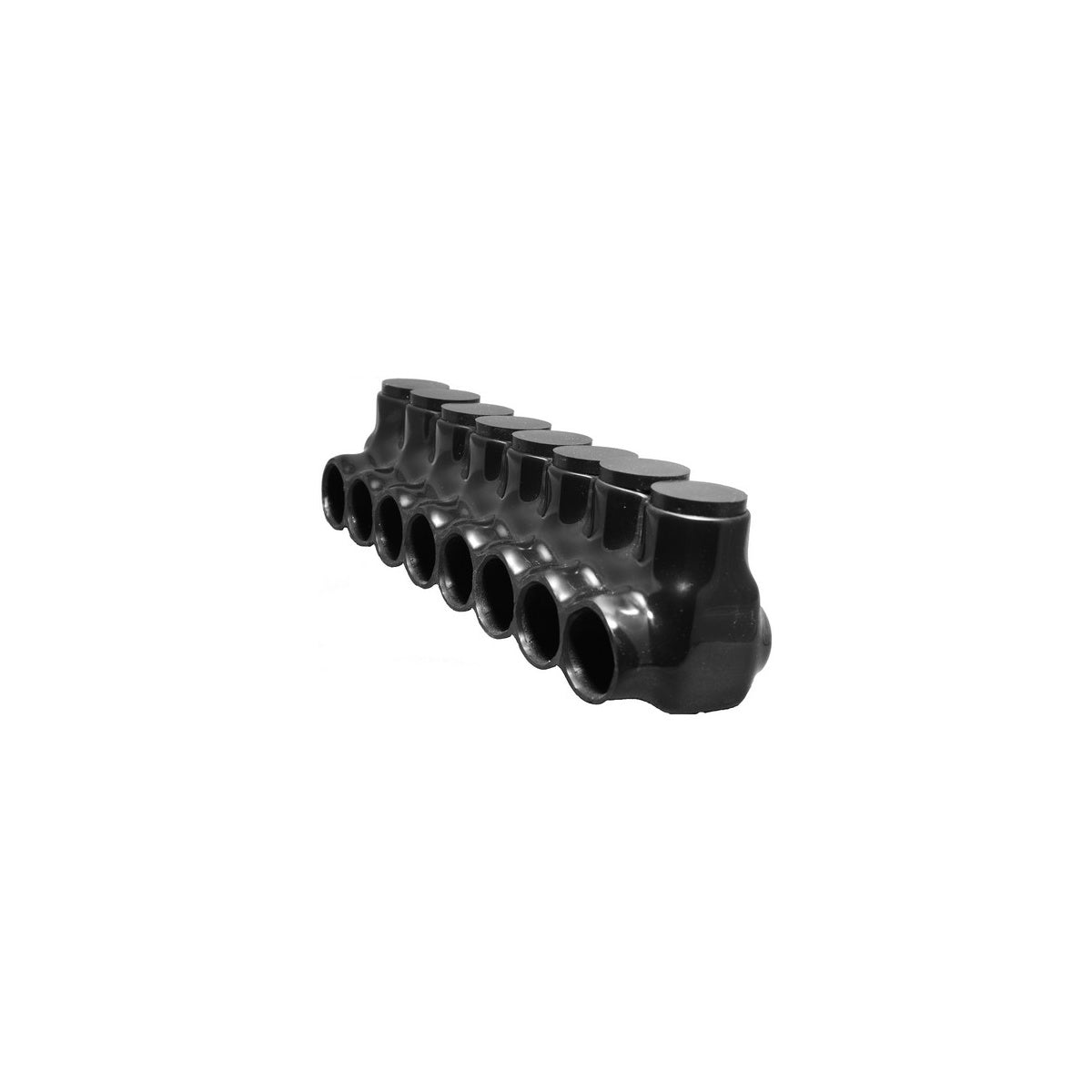

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 750 - 250 | Electrical Power Connector

The Black Insulated Multi-Cable Connector by Morris Products is designed for efficient electrical power distribution applications, simplifying cable splicing and tapping. This single-side entry connector supports multiple cables ranging from 750 to 250 MCM, making it suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections. Its insulated design enhances safety and durability in gutter, raceway, and enclosure installations.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Wire Range: 750 - 250 MCM
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• Insulation: Black abrasion and chemical resistant PVC
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL Certified: Yes
• Product Weight: 5.5950 lbs

Features

• Insulated mechanical connector with black PVC insulation
• Multi-cable, single directional conductor entry with 8 ports
• Aluminum mechanical connector suitable for aluminum and copper conductors (AL/CU dual rated)
• Prefilled oxide inhibitor for enhanced corrosion resistance
• Designed for gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
