Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 600 - 250
SKU: #281132
Part: #97568
UPC: 601986975681
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 600 - 250
SKU: #281132
Part: #97568
UPC: 601986975681
Description

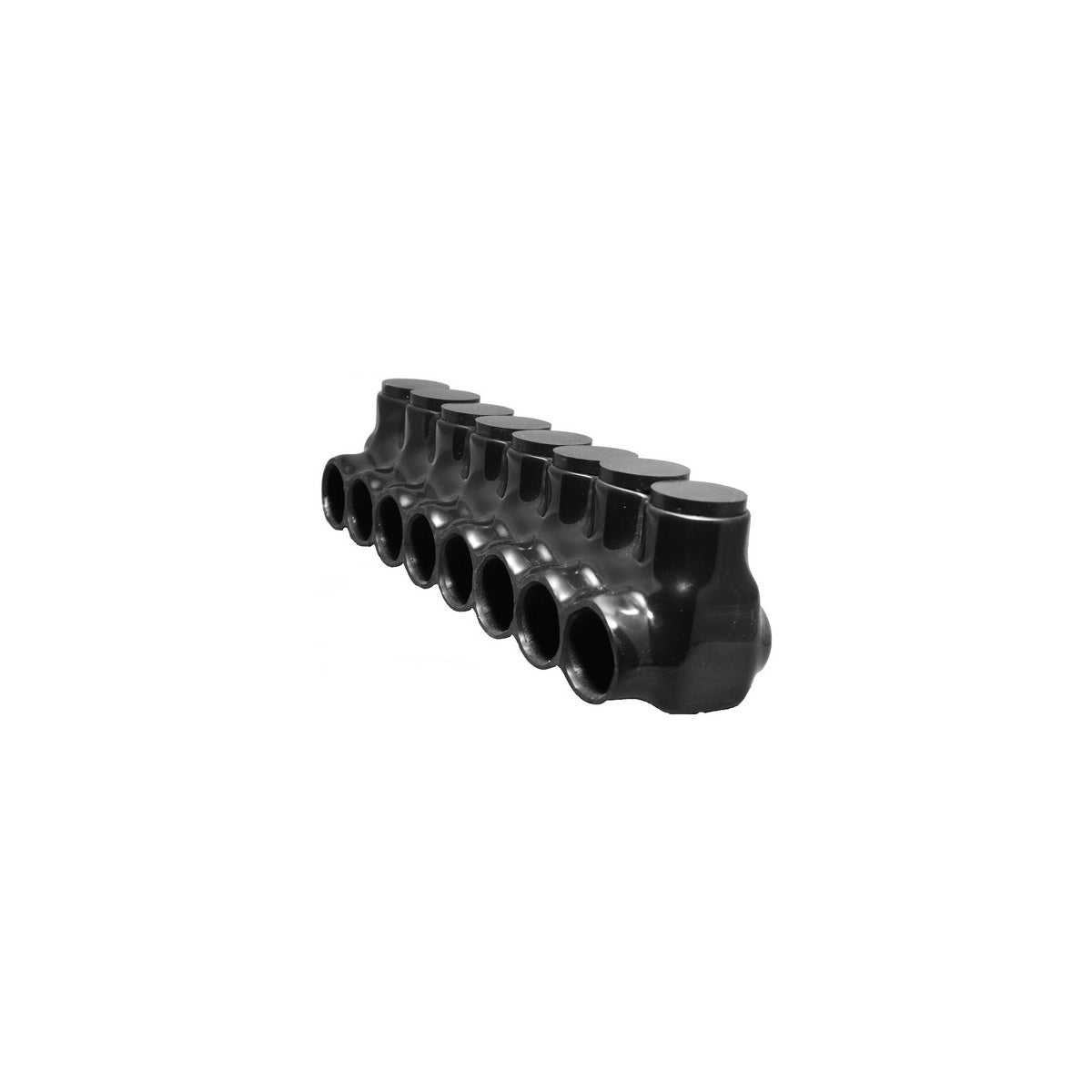

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 600 - 250 | Electrical Power Connector
This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. It features single-side entry with 8 ports, accommodating wire sizes from 600 to 250 MCM. Constructed from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, it is suitable for gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 600 - 250 MCM
- Voltage Rating: 600 V
- Temperature Rating: 49°F - 194°F
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 3.1350 lbs
Features
- Multi-tap single directional conductor entry simplifies installation
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Prefilled oxide inhibitor for improved conductivity and corrosion resistance
- Black PVC insulation provides abrasion and chemical resistance
