Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 500 - 4
SKU: #281238
Part: #97590
UPC: 601986975902
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 500 - 4
SKU: #281238
Part: #97590
UPC: 601986975902
Description

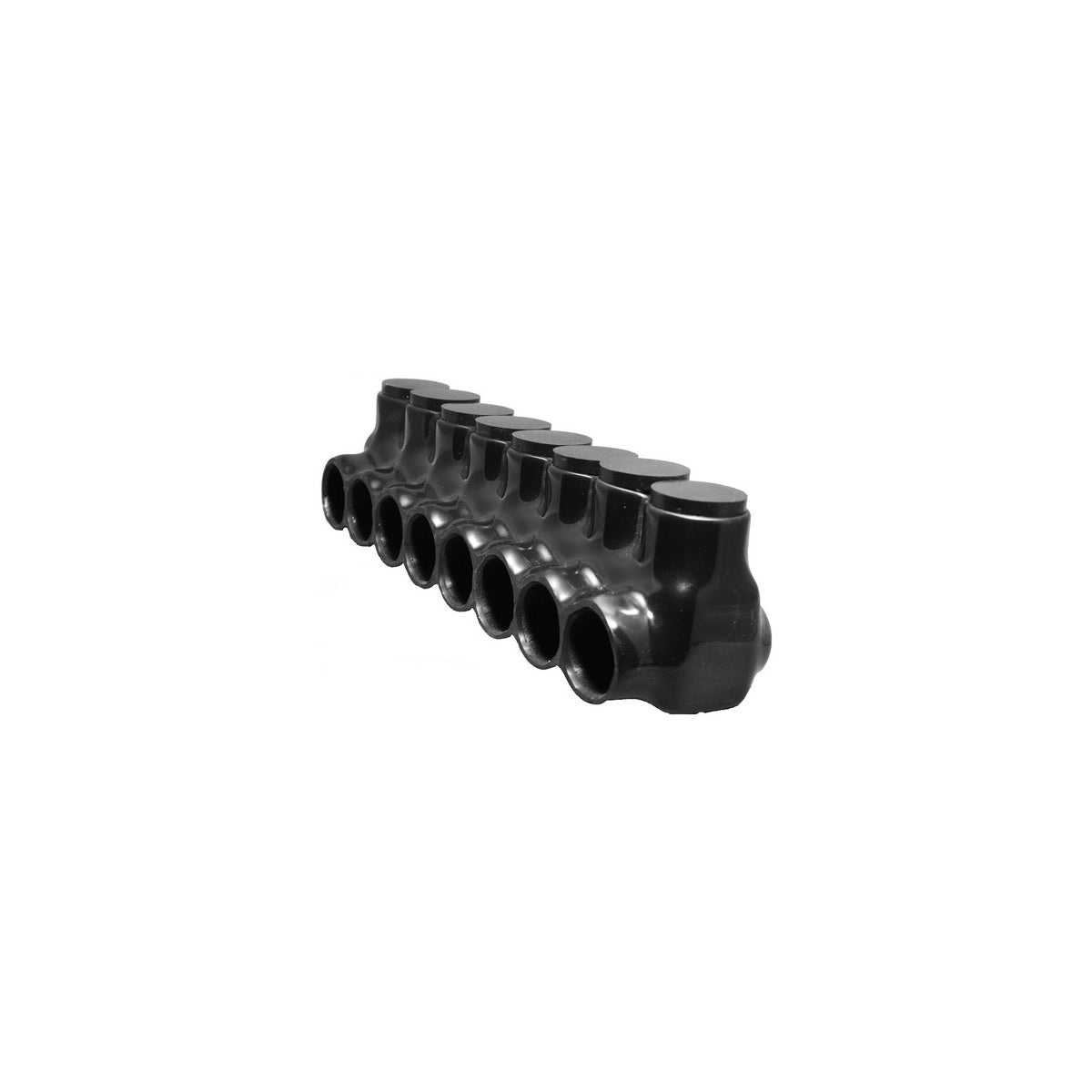

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 500 - 4 | Electrical Power Connector
The Black Insulated Multi-Cable Connector is designed for efficient cable splicing and tapping in electrical distribution systems. This connector features single-side entry with 8 ports, supporting wire sizes from 500 to #4. Constructed from 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, it is suitable for use in gutter, raceway, and enclosure power distribution applications. Ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable connectors.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 3.1350 lbs
Features
- Insulated Mechanical Connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector suitable for AL/CU dual rating
- Prefilled oxide inhibitor for corrosion resistance
- Designed for gutter, raceway, and enclosure power distribution
