Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 4 - 14
SKU: #280958
Part: #97518
UPC: 601986975186
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 4 - 14
SKU: #280958
Part: #97518
UPC: 601986975186
Description

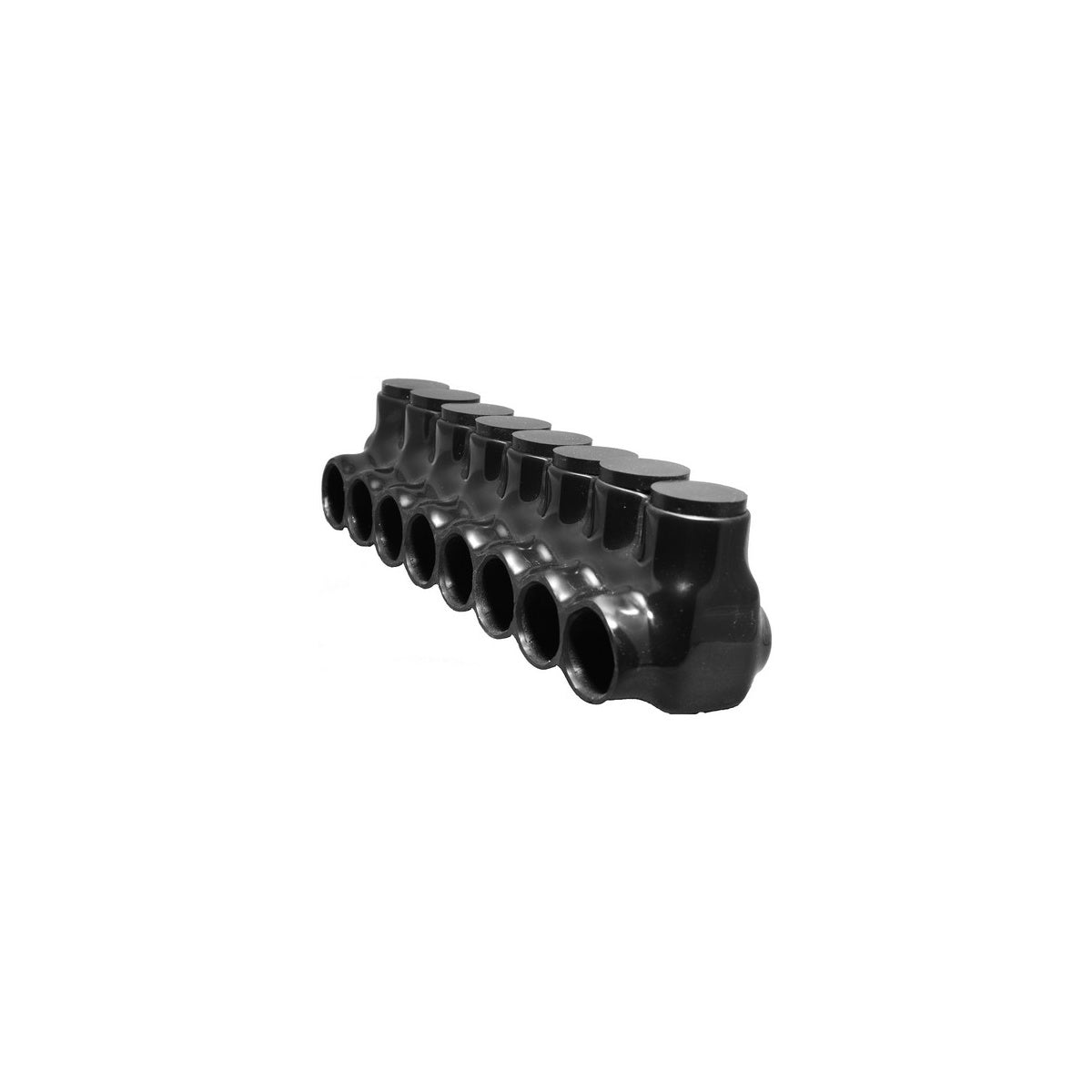

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 4 - 14 for Electrical Power Distribution
The Black Insulated Multi-Cable Connector is designed for simplifying cable splicing and tapping applications in electrical power distribution. This connector features a single side entry with 8 ports, accommodating wire sizes from #4 to #14. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable and durable connectors for wire and cable management in gutter, raceway, and enclosure power distribution systems.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black abrasion and chemical resistant PVC
- Wire Range: #4 - #14 AWG
- Temperature Rating: 49°F to 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.3150 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry for streamlined cable connections
- Aluminum mechanical connector suitable for AL/CU dual rating
- Prefilled with oxide inhibitor to prevent corrosion
- Designed for use in gutter, raceway, and enclosure power distribution applications
