Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 3/0 - 6
SKU: #281210
Part: #97584
UPC: 601986975841
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 3/0 - 6
SKU: #281210
Part: #97584
UPC: 601986975841
Description

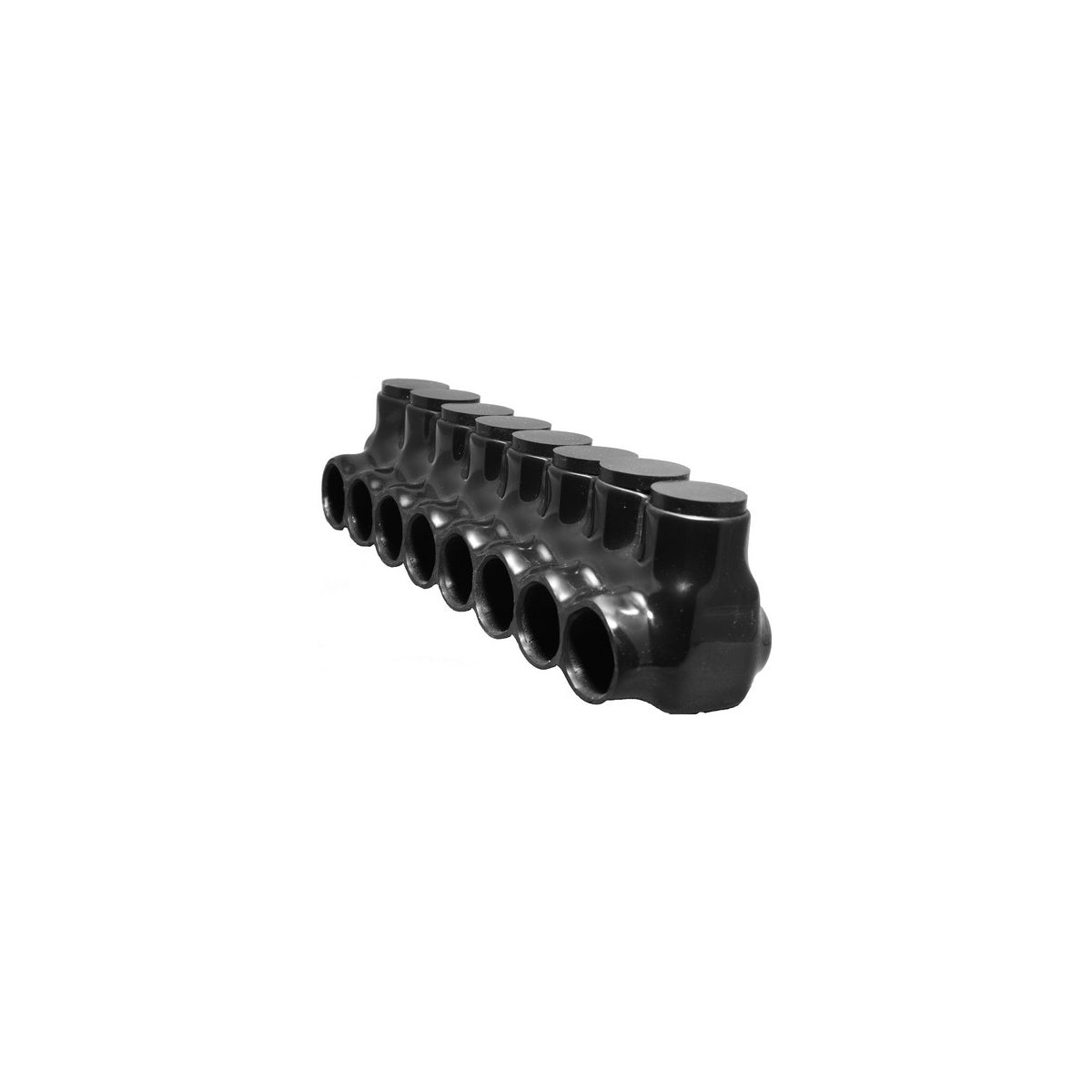

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 3/0 - 6 Electrical Connector
This black insulated multi-cable connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. Suitable for use by electrical distributors and switchgear suppliers, it supports multi-tap single directional conductor entry and is dual rated for aluminum and copper conductors. Ideal for wire and cable installations in gutters, raceways, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black abrasion and chemical resistant PVC
- Wire Range: 3/0 - #6 AWG
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL: Yes
- Product Weight: 1.11 lbs
Features
- Multi-cable connector with 8 ports for single side entry
- Pre-filled oxide inhibitor for improved conductivity and corrosion resistance
- Black insulated mechanical connector with PVC insulation for durability
- Aluminum mechanical connector suitable for AL/CU dual rating
- Designed for gutter, raceway, and enclosure power distribution applications
