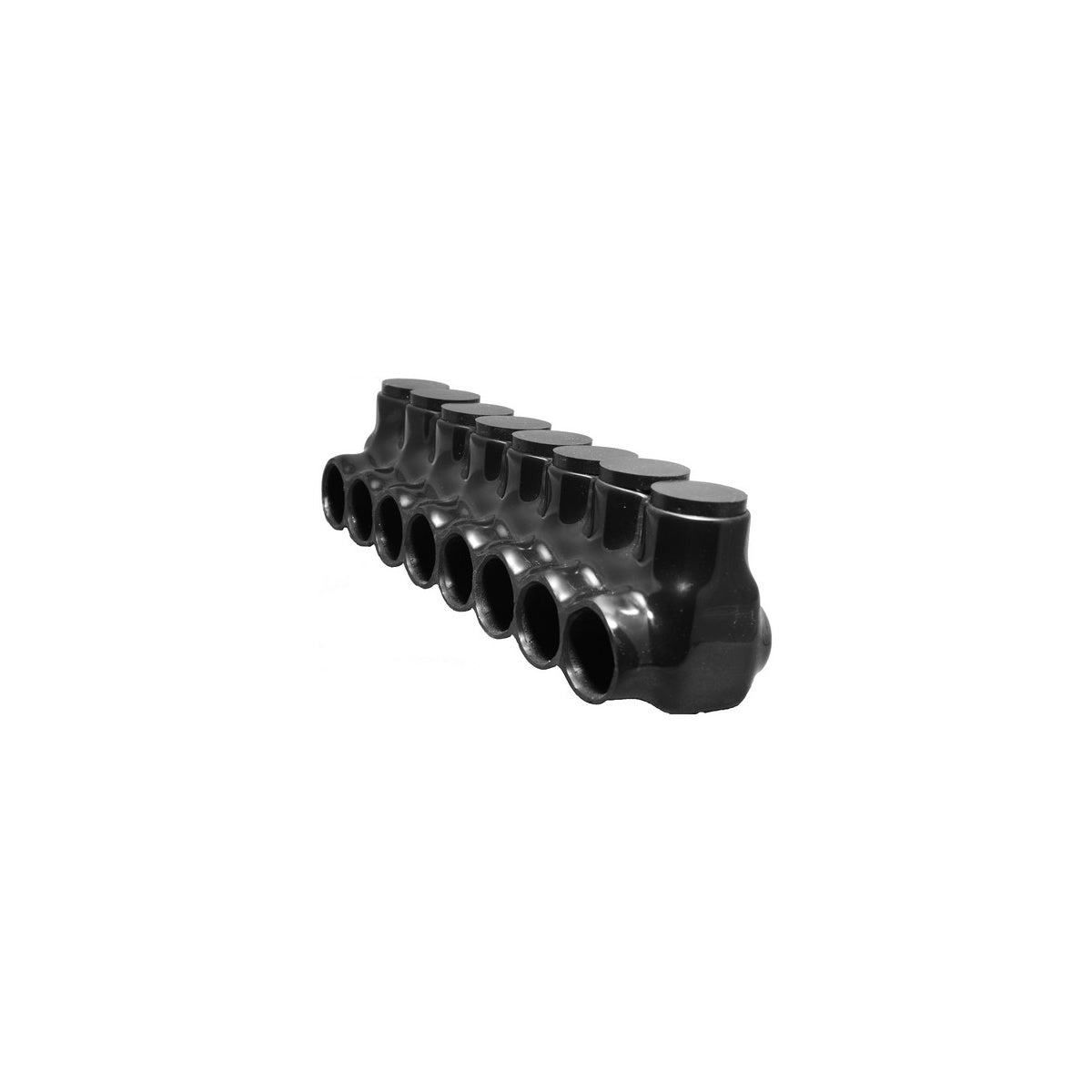

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 250 - 6 | Electrical Power Connector

This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connection solutions. It simplifies cable splicing and tapping applications with its single side entry and eight ports, suitable for power distribution in gutters, raceways, and enclosures.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• Insulation: Black abrasion and chemical resistant PVC
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL Certified: Yes
• Manufacturer Part Number: 97548
• Product Weight: 1.3950 lbs

Features

• Multi-tap single directional conductor entry
• Aluminum mechanical connector compatible with aluminum and copper conductors
• Prefilled oxide inhibitor for enhanced corrosion resistance
• Black PVC insulation provides abrasion and chemical resistance
• Designed for use in power distribution applications including gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
