Morris Products

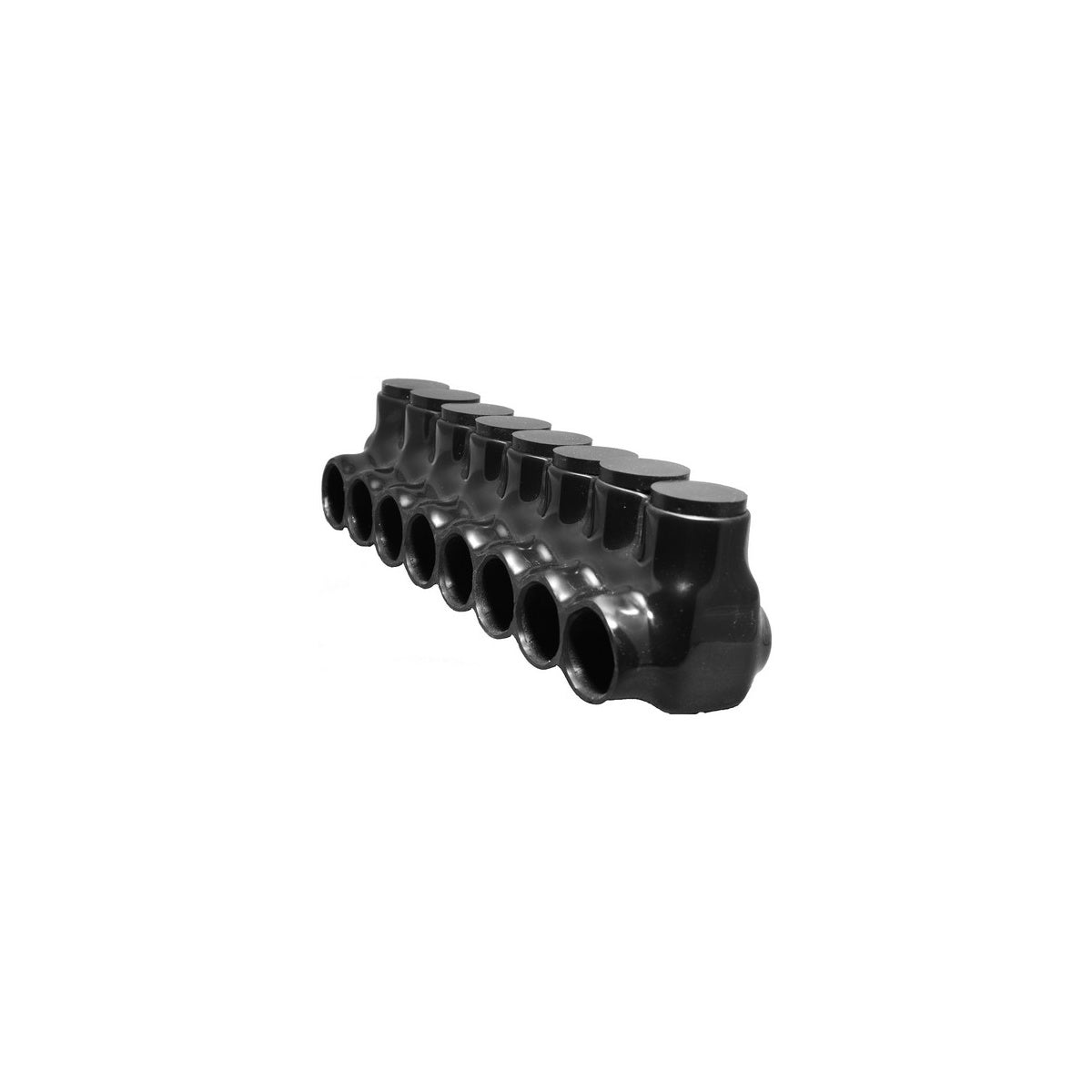

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 2 - 14
SKU: #280981
Part: #97524
UPC: 601986975247
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 2 - 14
SKU: #280981
Part: #97524
UPC: 601986975247
Description
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 2 - 14 | Electrical Power Connector
This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. It features single side entry with 8 ports, suitable for wire sizes ranging from #2 to #14. Constructed from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, this connector supports aluminum and copper conductors, making it suitable for wire and cable applications in gutter, raceway, and enclosure power distribution.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #2 - #14
- Voltage Rating: 600 V
- Temperature Rating: 49°F - 194°F
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL Listed: Yes
- Product Weight: 0.42 lb
Features
- Multi-Tap Single Directional Conductor Entry
- Aluminum Mechanical Connector with Dual Rating for AL/CU Conductors
- Prefilled Oxide Inhibitor for Enhanced Conductivity
- Black PVC Insulation Provides Mechanical Protection and Chemical Resistance
- Suitable for Gutter, Raceway, and Enclosure Power Distribution Applications
