Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 2/0 - 6
SKU: #281039
Part: #97538
UPC: 601986975384
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 8 Ports 2/0 - 6
SKU: #281039
Part: #97538
UPC: 601986975384
Description

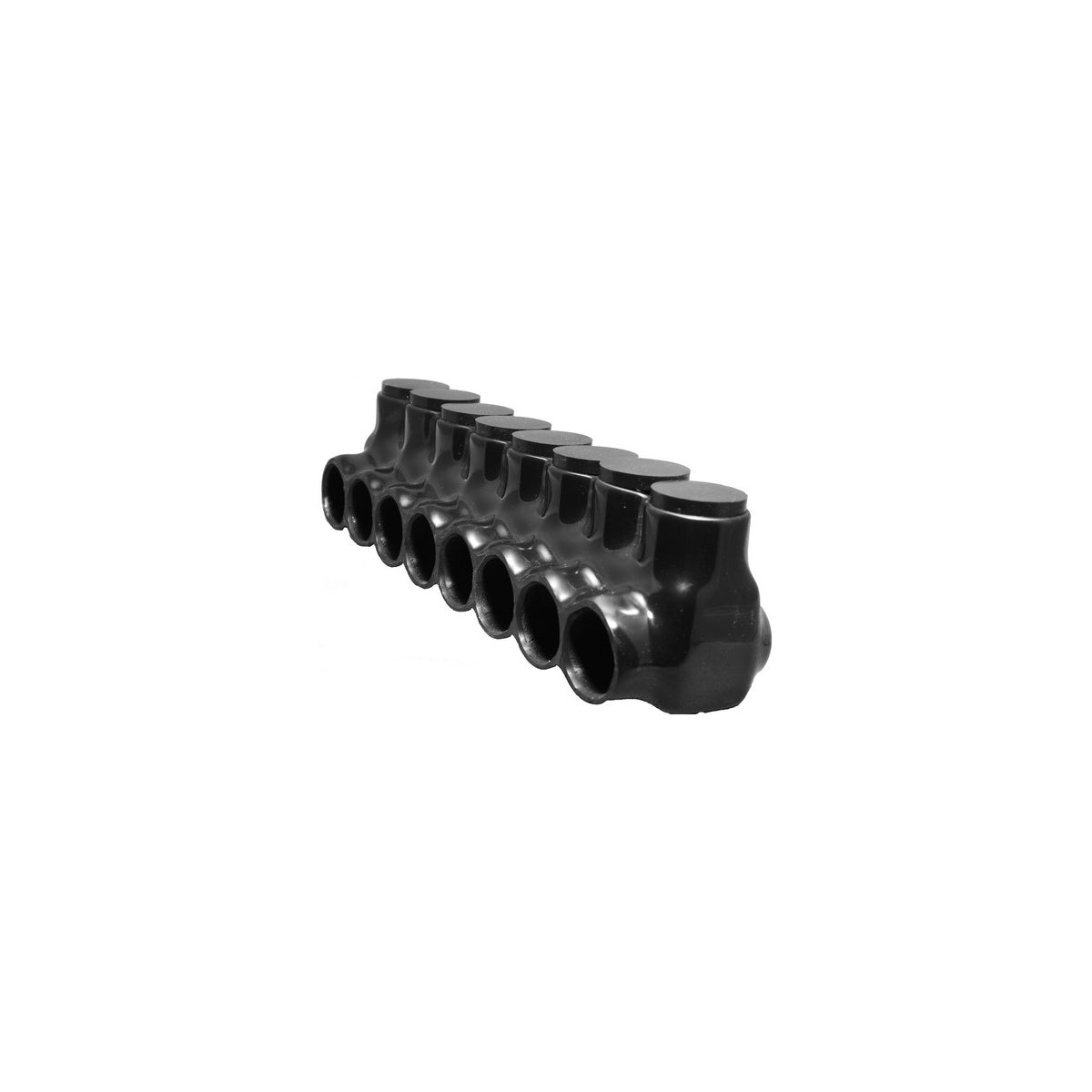

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 2/0 - 6 Electrical Connector
This Black Insulated Multi-Cable Connector by Morris Products is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. It features a single side entry with 8 ports, suitable for wire ranges from 2/0 to #6, simplifying multi-cable connections in power distribution applications such as gutters, raceways, and enclosures.
Specifications
- Material: 6061-T6 Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 2/0 - #6
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 1.11 lbs
Features
- Insulated Mechanical Connector with black PVC insulation
- Multi-Tap Single Directional Conductor Entry for simplified cable splicing
- Aluminum mechanical connector suitable for AL/CU dual rated use
- Pre-filled oxide inhibitor to prevent corrosion
- Designed for power distribution in gutters, raceways, and enclosures
