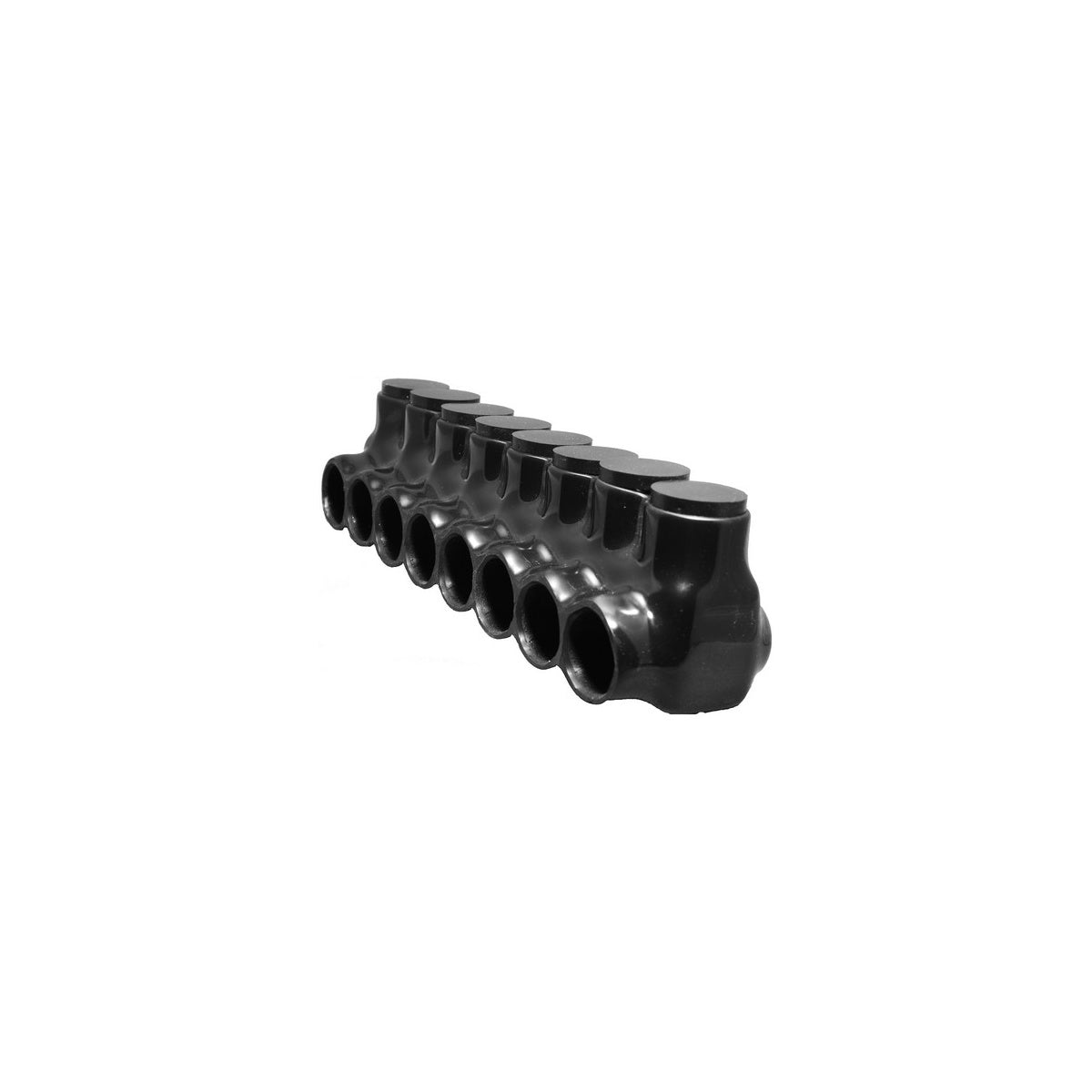

Black Insulated Multi-Cable Connector - Single Entry 8 Ports 1/0 - 14 Electrical Connector

This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It simplifies cable splicing and tapping applications with a single side entry for up to 8 ports, accommodating wire sizes from 1/0 to #14. The connector is suitable for power distribution in gutters, raceways, and enclosures, providing durable and insulated connections.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 1/0 - 14 AWG
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL Certification: Yes
• Product Weight: 0.7650 lbs

Features

• Insulated mechanical connector with black PVC insulation
• Multi-tap single directional conductor entry
• Aluminum mechanical connector, dual rated for aluminum and copper conductors
• Pre-filled oxide inhibitor for enhanced connection reliability
• Designed for use in gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
