Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 750 - 250
SKU: #281157
Part: #97576
UPC: 601986975766
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 750 - 250
SKU: #281157
Part: #97576
UPC: 601986975766
Description

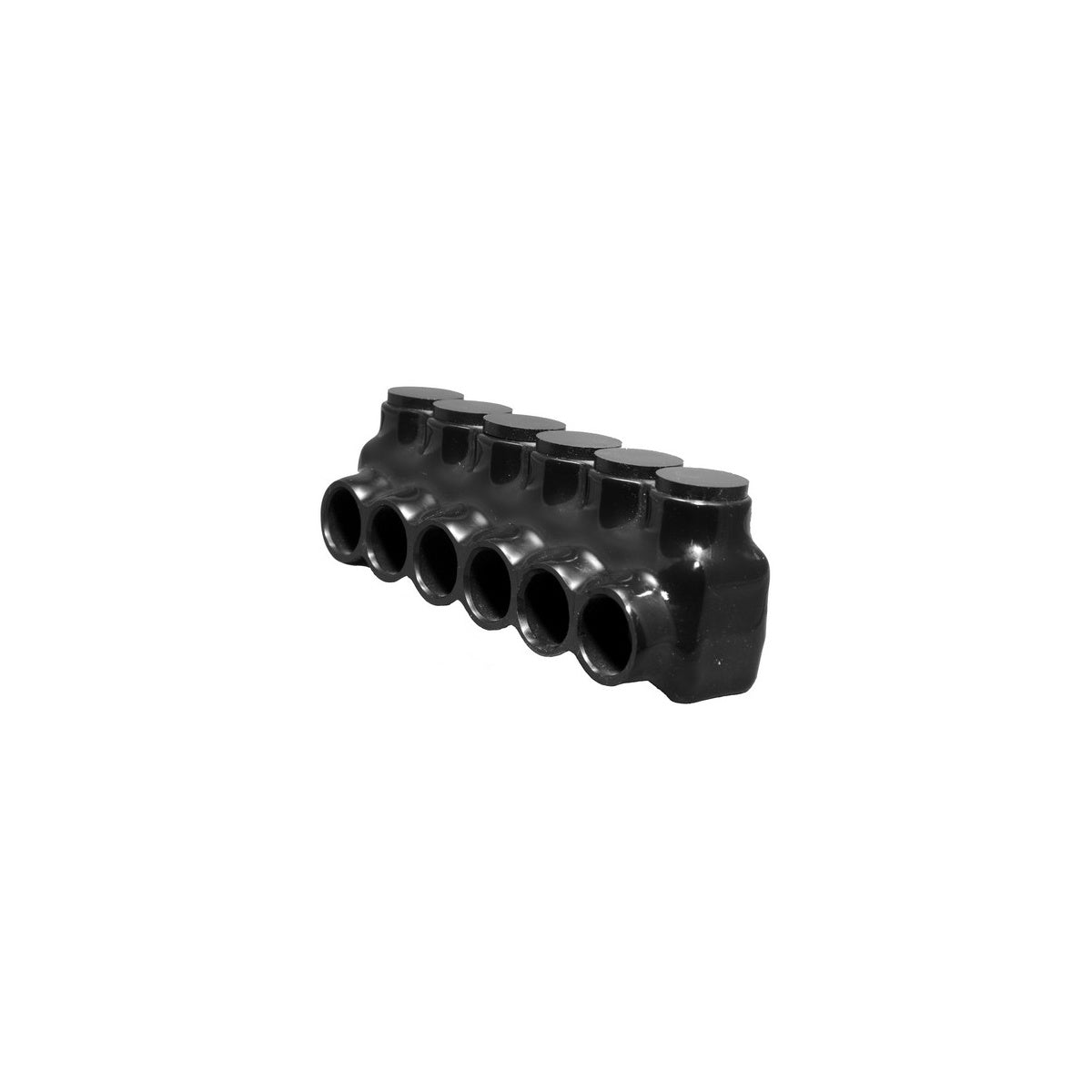

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 750 - 250 | Electrical Power Connector
This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers to simplify cable splicing and tapping applications in lighting solutions and wire and cable installations. It supports multi-tap single directional conductor entry, suitable for gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 750 - 250 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 4.2 lbs
- Ports: 6
Features
- Insulated Mechanical Connector with black PVC insulation
- Multi-tap single directional conductor entry for ease of installation
- Aluminum mechanical connector suitable for dual rating AL/CU conductors
- Prefilled oxide inhibitor to prevent corrosion
- Designed for use in power distribution within gutters, raceways, and enclosures
