Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 600 - 250
SKU: #281127
Part: #97566
UPC: 601986975667
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 600 - 250
SKU: #281127
Part: #97566
UPC: 601986975667
Description

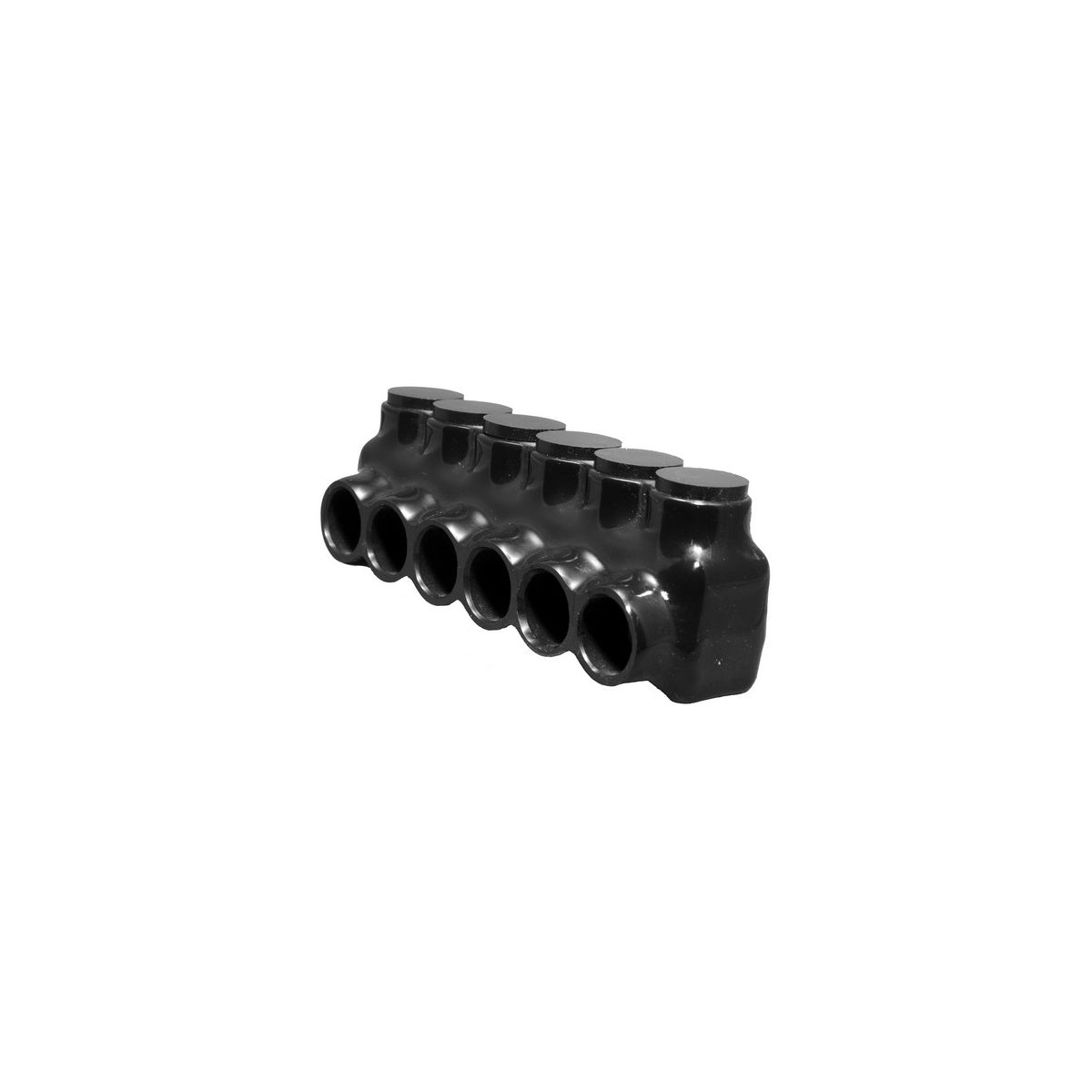

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 600 - 250 | Electrical Connector
This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers to simplify cable splicing and tapping applications. It features a single side entry with six ports, supporting wire sizes from 600 to 250 MCM. Constructed from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, this connector is suitable for gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Wire Range: 600 - 250 MCM
- Insulation: Black Abrasion & Chemical Resistant PVC
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL: Yes
- Product Weight: 2.3550 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector, dual rated for aluminum and copper conductors
- Prefilled oxide inhibitor for enhanced conductivity and corrosion resistance
- Compatible with gutter, raceway, and enclosure power distribution systems
