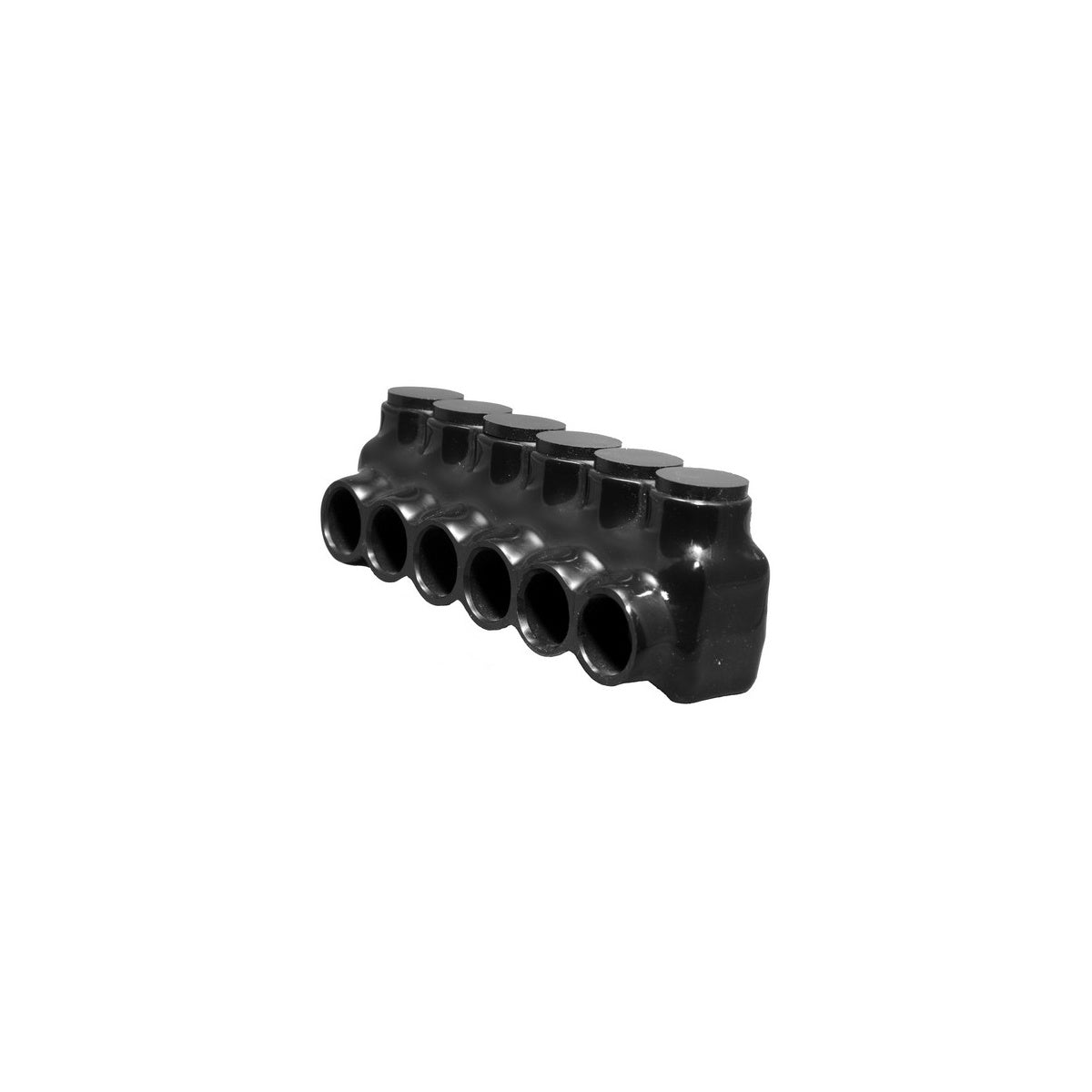

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 500 - 4

This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers to facilitate cable splicing and tapping applications. It provides a single directional entry for six cables, suitable for wire ranges from 500 to #4. Constructed from durable 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, it supports reliable connections in lighting solutions, wire and cable installations, and power distribution within gutters, raceways, and enclosures.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Wire Ports: 6
• Wire Range: 500 - #4
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• Insulation: Black Abrasion & Chemical Resistant PVC
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL Certified: Yes
• Product Weight: 2.3550 lbs

Features

• Insulated mechanical connector with black PVC insulation
• Multi-tap single directional conductor entry design
• Aluminum mechanical connector, dual rated for aluminum and copper conductors
• Prefilled oxide inhibitor for enhanced corrosion resistance
• Suitable for gutter, raceway, and enclosure power distribution applications
