Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 4 - 14
SKU: #280952
Part: #97516
UPC: 601986975162
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 4 - 14
SKU: #280952
Part: #97516
UPC: 601986975162
Description

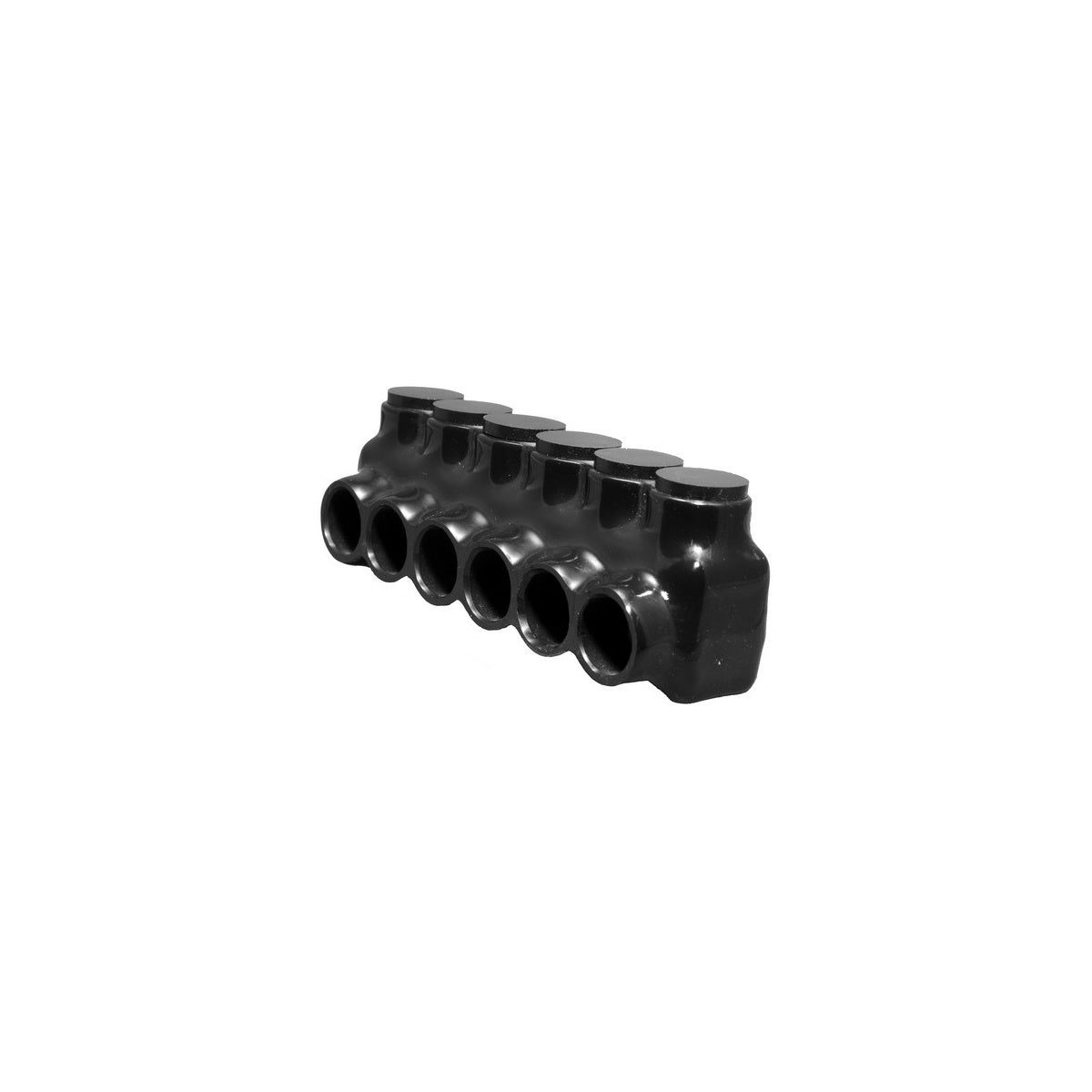

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 4 - 14 | Electrical Connector
This Black Insulated Multi-Cable Connector is designed for electrical distributors and lighting solutions requiring reliable cable splicing and tapping. It features a single side entry with 6 ports accommodating wire sizes from #4 to #14, suitable for power distribution in gutters, raceways, and enclosures. The connector is constructed from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, ensuring durability and safety in electrical installations.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Wire Range: #4 - #14
- Ports: 6
- Insulation: Black Abrasion & Chemical Resistant PVC
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL Certified: Yes
- Product Weight: 0.2400 lbs
Features
- Insulated Mechanical Connector with black PVC insulation
- Multi-tap single directional conductor entry for simplified cable splicing
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Prefilled oxide inhibitor to prevent corrosion
- Designed for gutter, raceway, and enclosure power distribution
