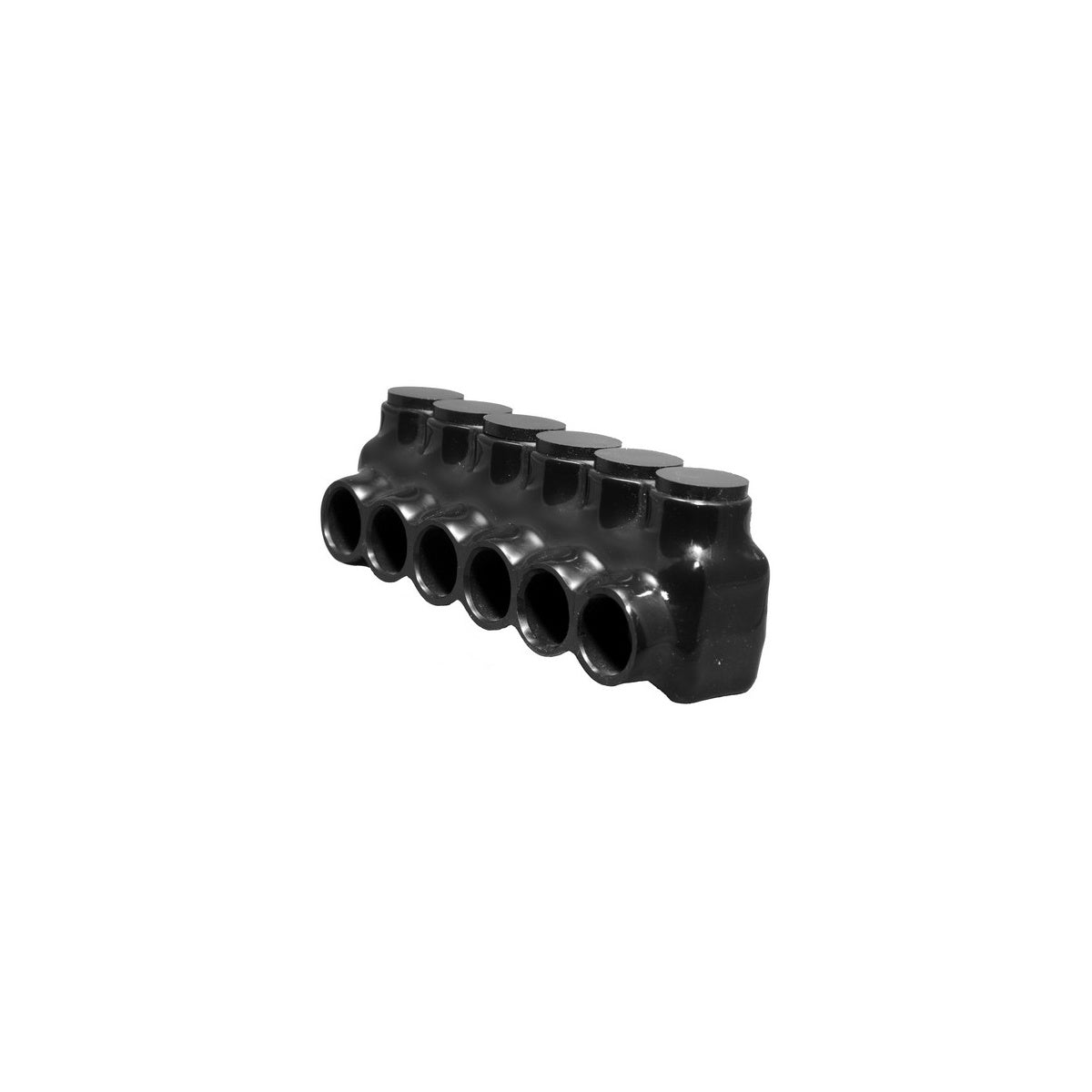

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 350 - 6 | Electrical Power Connector

This Black Insulated Multi-Cable Connector is designed for electrical distributors and lighting solutions providers requiring reliable cable splicing and tapping. It features a single side entry with six ports, accommodating wire sizes from 350 to #6, suitable for power distribution in gutters, raceways, and enclosures. Constructed from durable 6061-T6 aluminum with black abrasion and chemical-resistant PVC insulation, it supports AL/CU dual-rated applications.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Wire Range: 350 - #6
• Insulation: Black Abrasion & Chemical Resistant PVC
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL: Yes
• Product Weight: 1.71 lbs

Features

• Multi-cable single directional entry simplifies cable splicing and tapping applications
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• Aluminum mechanical connector suitable for AL/CU dual-rated wiring
• Black insulated PVC jacket provides abrasion and chemical resistance
• Designed for use in gutter, raceway, and enclosure power distribution
