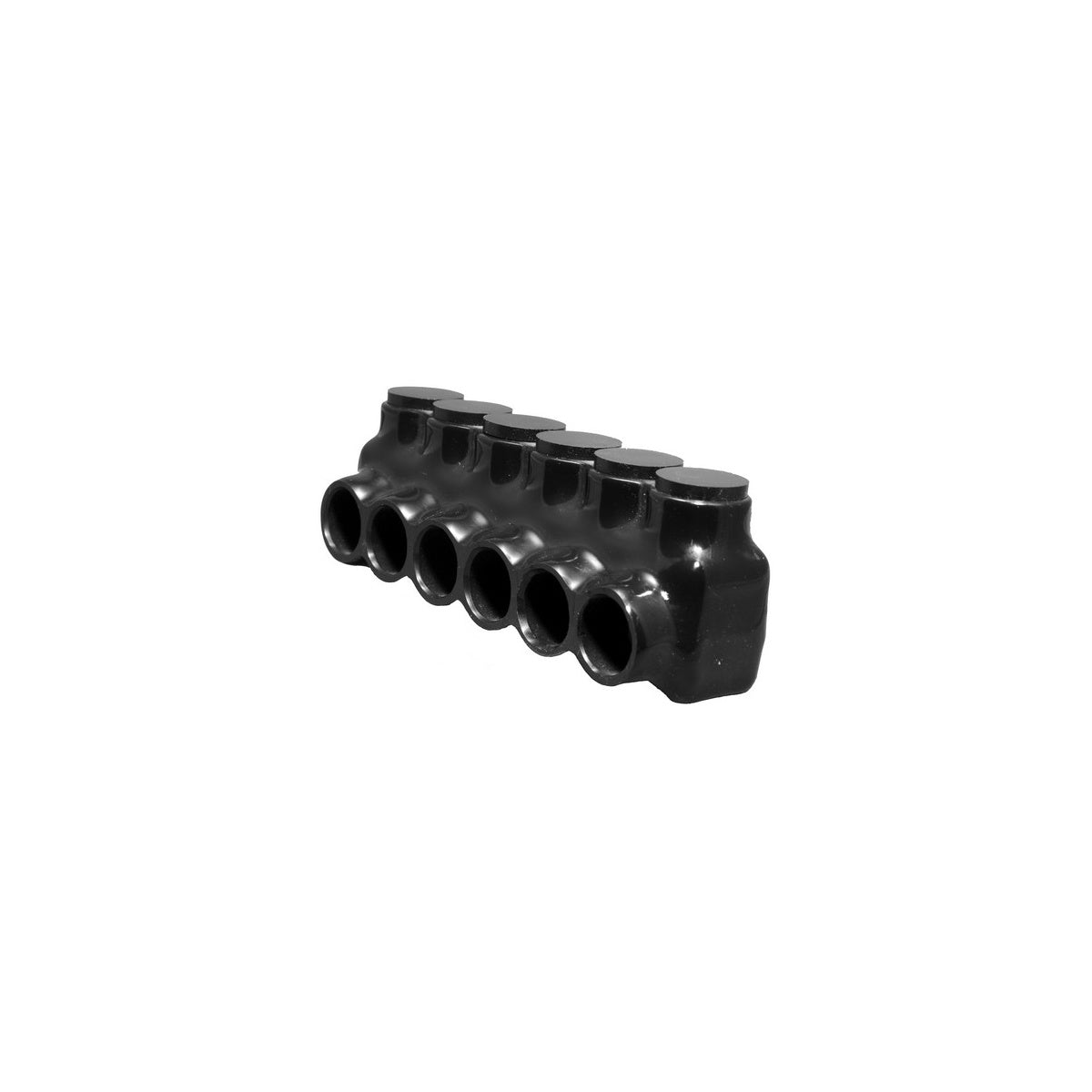

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 3/0 - 6 Electrical Connector

This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. It features six ports with single-side entry, accommodating wire sizes from 3/0 to #6, suitable for gutter, raceway, and enclosure power distribution applications. Constructed with 6061-T6 plated aluminum and black abrasion- and chemical-resistant PVC insulation, it ensures durability and electrical safety in demanding environments.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Wire Range: 3/0 - #6
• Insulation: Black Abrasion & Chemical Resistant PVC
• Voltage Rating: 600V
• Temperature Rating: 49¬∞F - 194¬∞F
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL: Yes
• Product Weight: 0.84 lbs

Features

• Multi-Tap Single Directional Conductor Entry for simplified cable splicing and tapping
• Aluminum Mechanical Connector suitable for AL/CU dual rating
• Prefilled Oxide Inhibitor to prevent corrosion
• Black PVC Insulation for abrasion and chemical resistance
