Morris Products

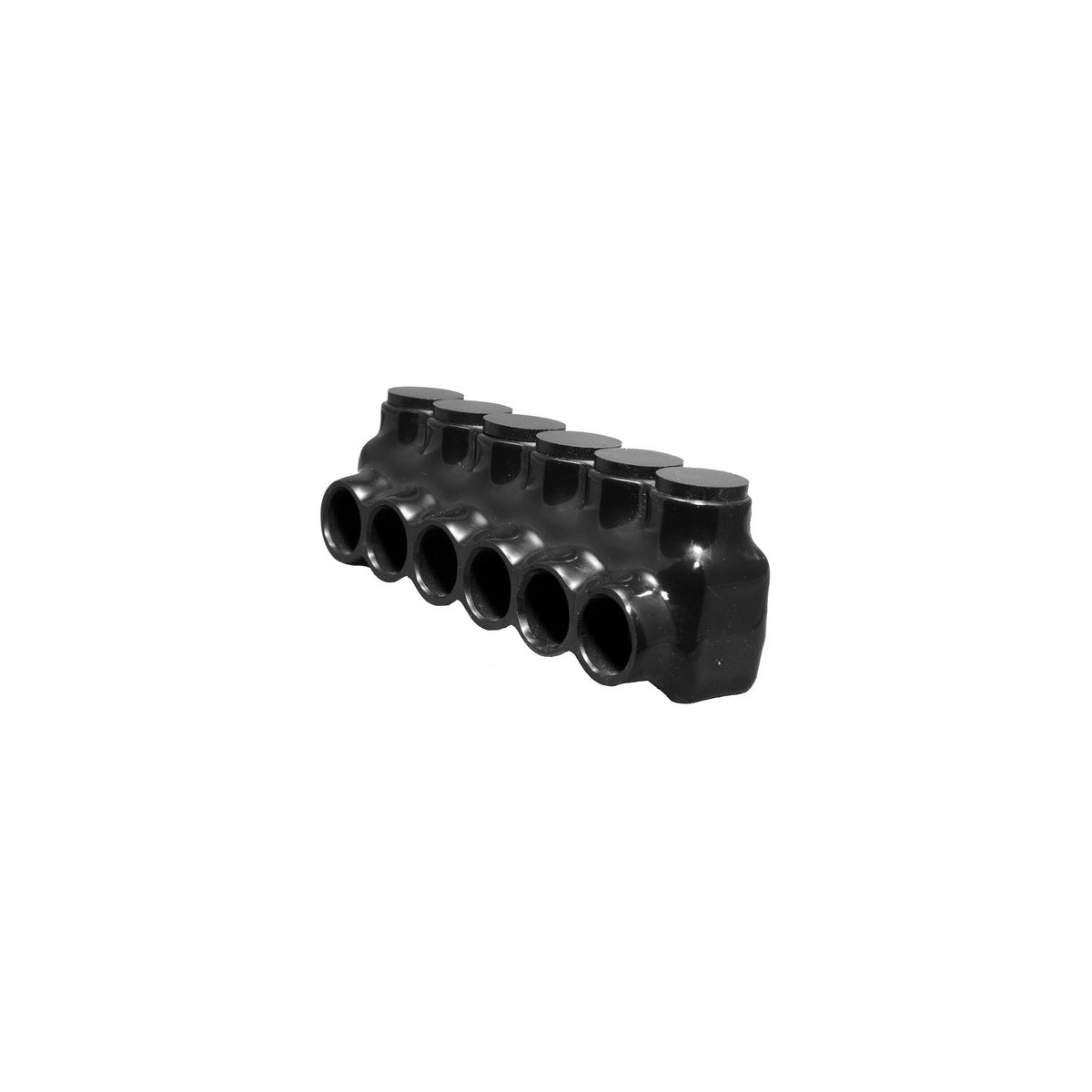

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 250 - 6
SKU: #281072
Part: #97546
UPC: 601986975469
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 250 - 6
SKU: #281072
Part: #97546
UPC: 601986975469
Description
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 250 - 6 | Electrical Connector
This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable power distribution solutions. It facilitates cable splicing and tapping applications with a single side entry and six ports, suitable for wire and cable sizes ranging from 250 to #6. The connector features durable black abrasion and chemical resistant PVC insulation and is constructed from 6061-T6 plated aluminum, ensuring mechanical strength and electrical conductivity for lighting solutions and power distribution in gutters, raceways, and enclosures.
Specifications
- Material: 6061-T6 Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 1.05 lbs
- Manufacturer Part #: 97546
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry for simplified splicing
- Aluminum mechanical connector, dual rated for aluminum and copper conductors
- Prefilled oxide inhibitor to prevent corrosion and ensure long-term reliability
- Suitable for gutter, raceway, and enclosure power distribution applications
