Description

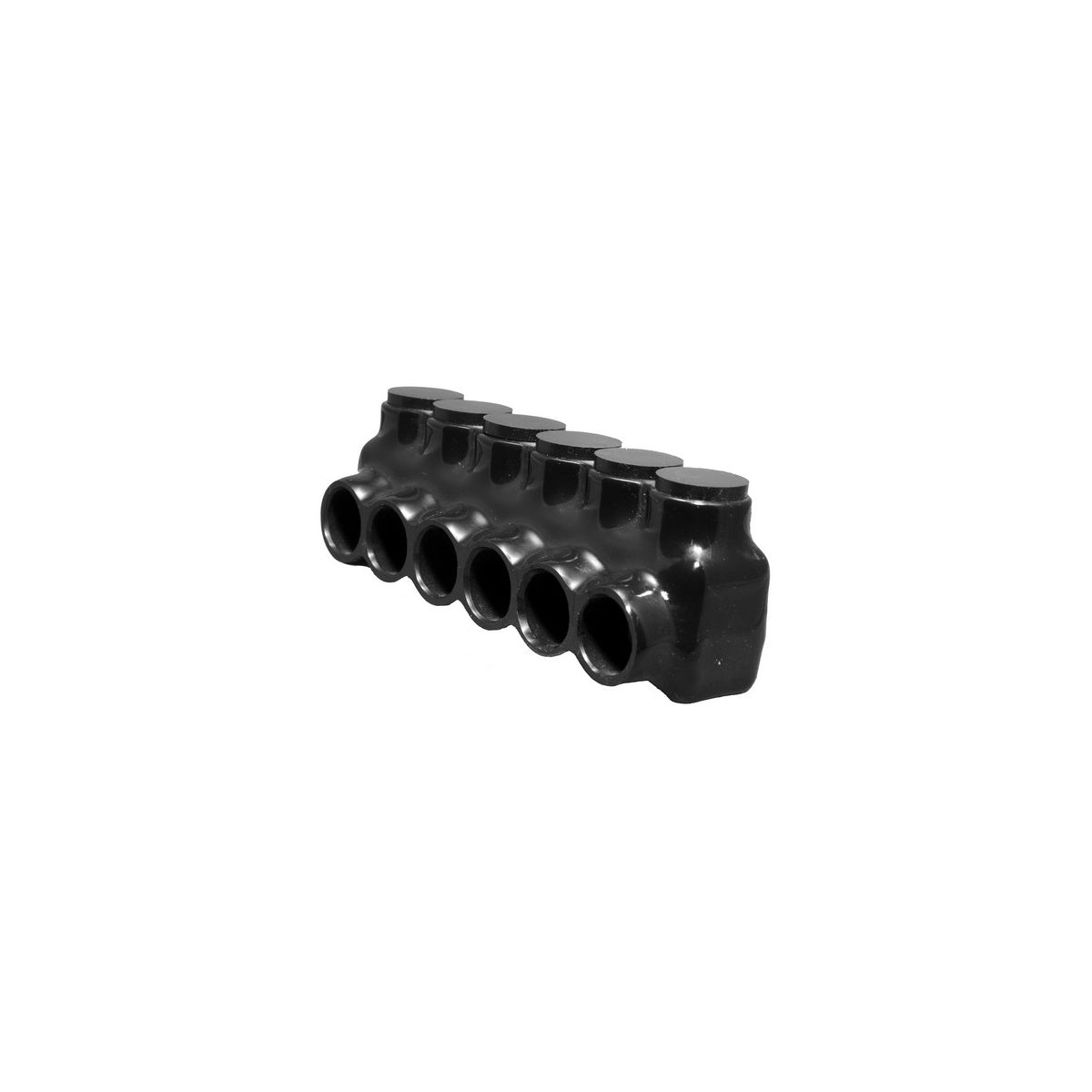

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 2 - 14 | Electrical Power Connector
This Black Insulated Multi-Cable Connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. Manufactured from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, it supports a wire range from #2 to #14 AWG. Suitable for use in gutters, raceways, and enclosure power distribution, this connector is dual-rated for aluminum and copper conductors, making it ideal for electrical distributors and lighting solutions requiring reliable wire and cable connections.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #2 - #14 AWG
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- Product Weight: 0.3750 lbs
- Manufacturer Part #: 97522
- UL Certification: UL 486B Dual Rated CU/AL
- cUL: Yes
Features
- Black insulated mechanical connector with PVC insulation
- Multi-tap single directional conductor entry with 6 ports
- Aluminum mechanical connector suitable for both aluminum and copper conductors
- Prefilled oxide inhibitor to prevent corrosion
- Designed for gutter, raceway, and enclosure power distribution applications
