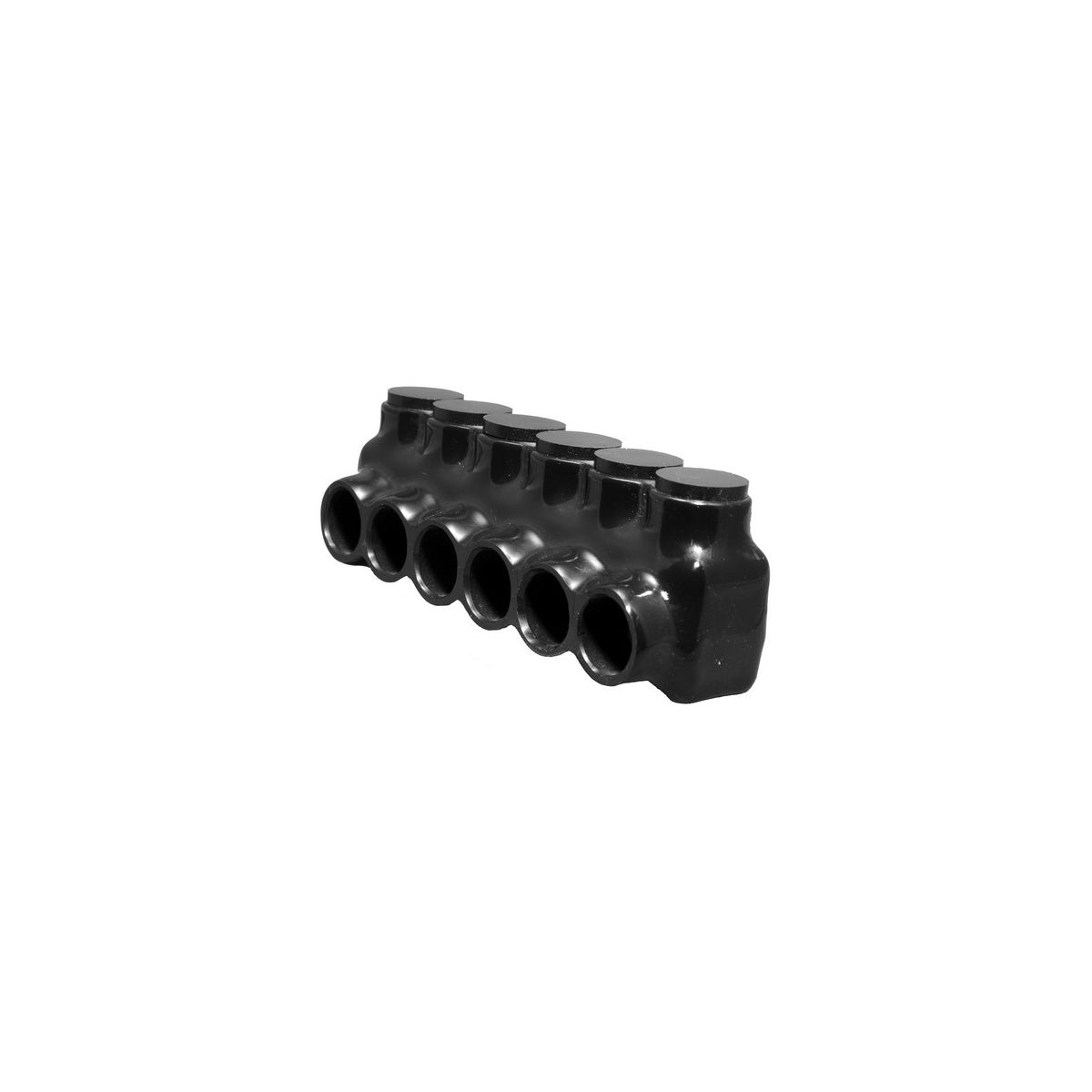

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 2/0 - 6 Electrical Connector

This black insulated multi-cable connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. It features six ports for single-side entry, supporting wire sizes from 2/0 to #6. Manufactured from 6061-T6 aluminum with black abrasion and chemical resistant PVC insulation, it is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connections in switchgear and power distribution applications.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Wire Range: 2/0 - #6
• Insulation: Black abrasion & chemical resistant PVC
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600V
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL: Yes
• Product Weight: 0.8400 lbs

Features

• Multi-cable connector with six single-side entry ports
• Pre-filled oxide inhibitor for enhanced conductivity
• Aluminum mechanical connector rated for aluminum and copper conductors
• Black PVC insulation provides abrasion and chemical resistance
• Suitable for gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
