Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 1/0 - 14
SKU: #280986
Part: #97528
UPC: 601986975285
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 6 Ports 1/0 - 14
SKU: #280986
Part: #97528
UPC: 601986975285
Description

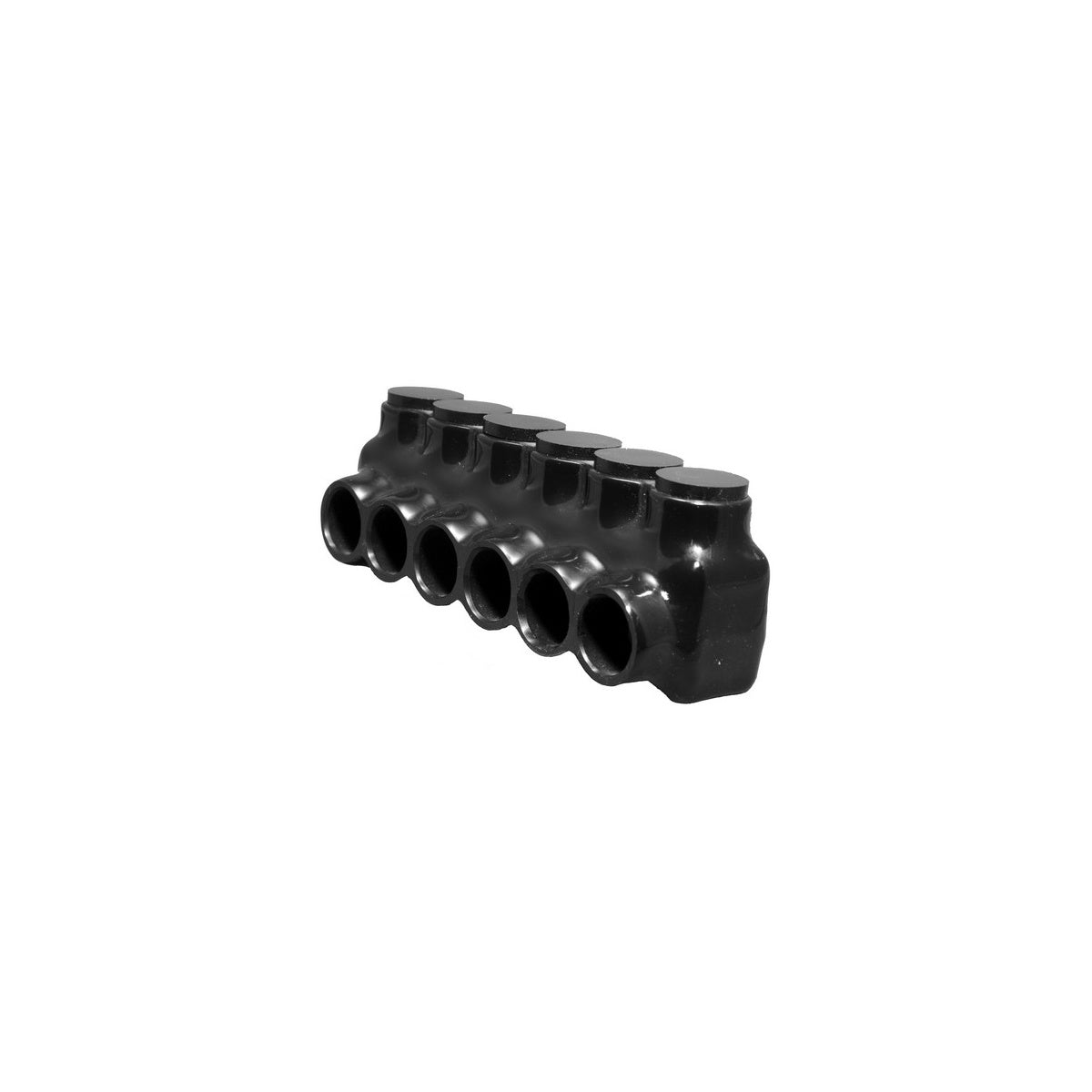

Black Insulated Multi-Cable Connector - Single Entry 6 Ports 1/0 - 14 Electrical Connector
This black insulated multi-cable connector is designed for efficient cable splicing and tapping applications. It features a single side entry with six ports supporting wire sizes from 1/0 to #14, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. The connector is constructed from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, making it appropriate for gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 1/0 - #14
- Voltage Rating: 600 V
- Temperature Rating: 49°F - 194°F
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Manufacturer Part #: 97528
- Product Weight: 0.5700 lbs
- Number of Ports: 6
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector dual rated for AL/CU conductors
- Prefilled oxide inhibitor for enhanced conductivity and corrosion protection
- Suitable for power distribution in gutters, raceways, and enclosures
