Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 750 - 250
SKU: #281149
Part: #97575
UPC: 601986975759
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 750 - 250
SKU: #281149
Part: #97575
UPC: 601986975759
Description

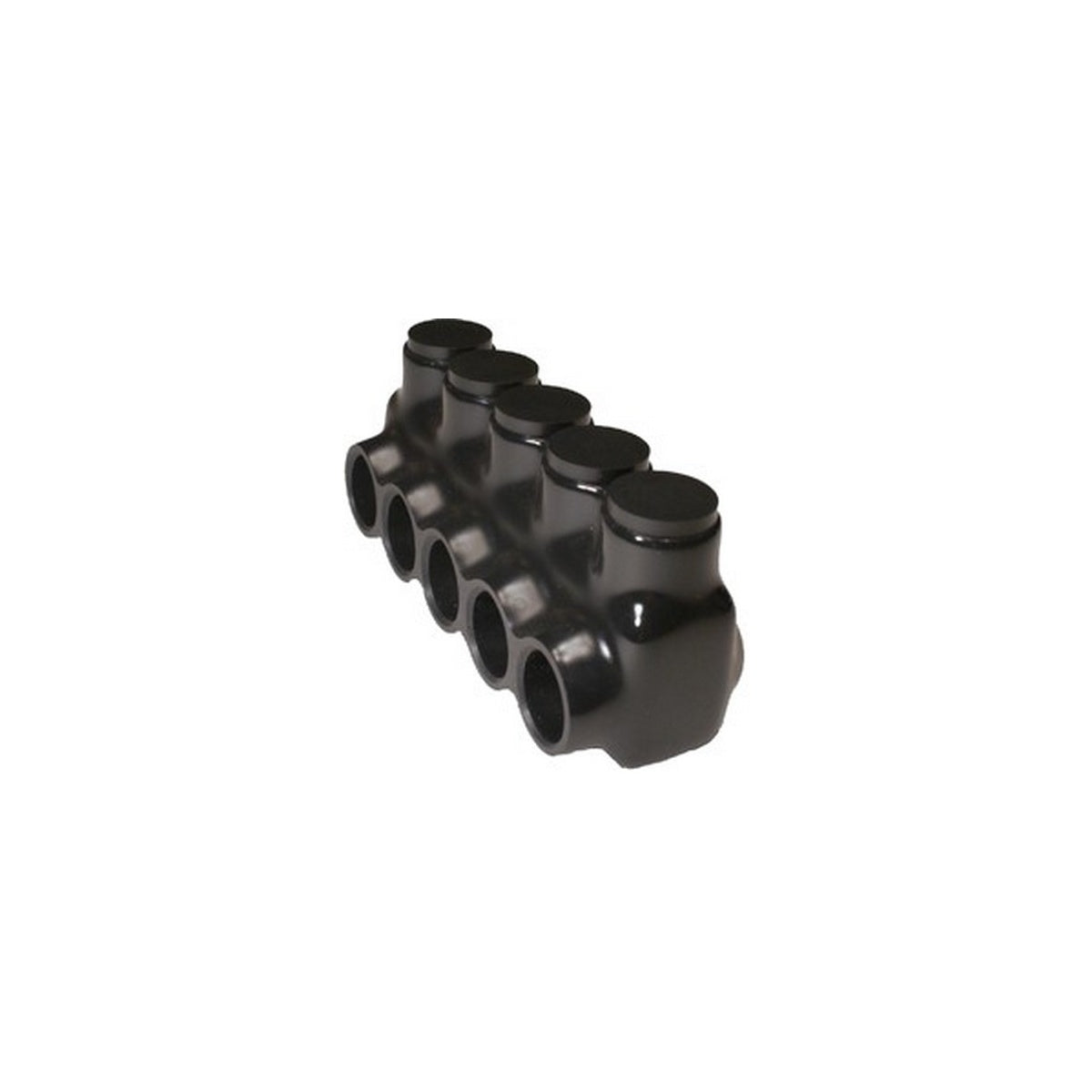

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 750 - 250 | Electrical Power Connector
This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers to simplify cable splicing and tapping applications. It features a single side entry with five ports, supporting wire sizes from 750 to 250 MCM. The connector is suitable for use in gutter, raceway, and enclosure power distribution systems.
Specifications
- Material: 6061-T6 Aluminum
- Color: Black
- Wire Range: 750 - 250 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 3.51 lbs
Features
- Black abrasion and chemical resistant PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector, dual rated for aluminum and copper conductors
- Prefilled oxide inhibitor to prevent corrosion
- Designed for reliable electrical power distribution in various industrial applications
