Morris Products

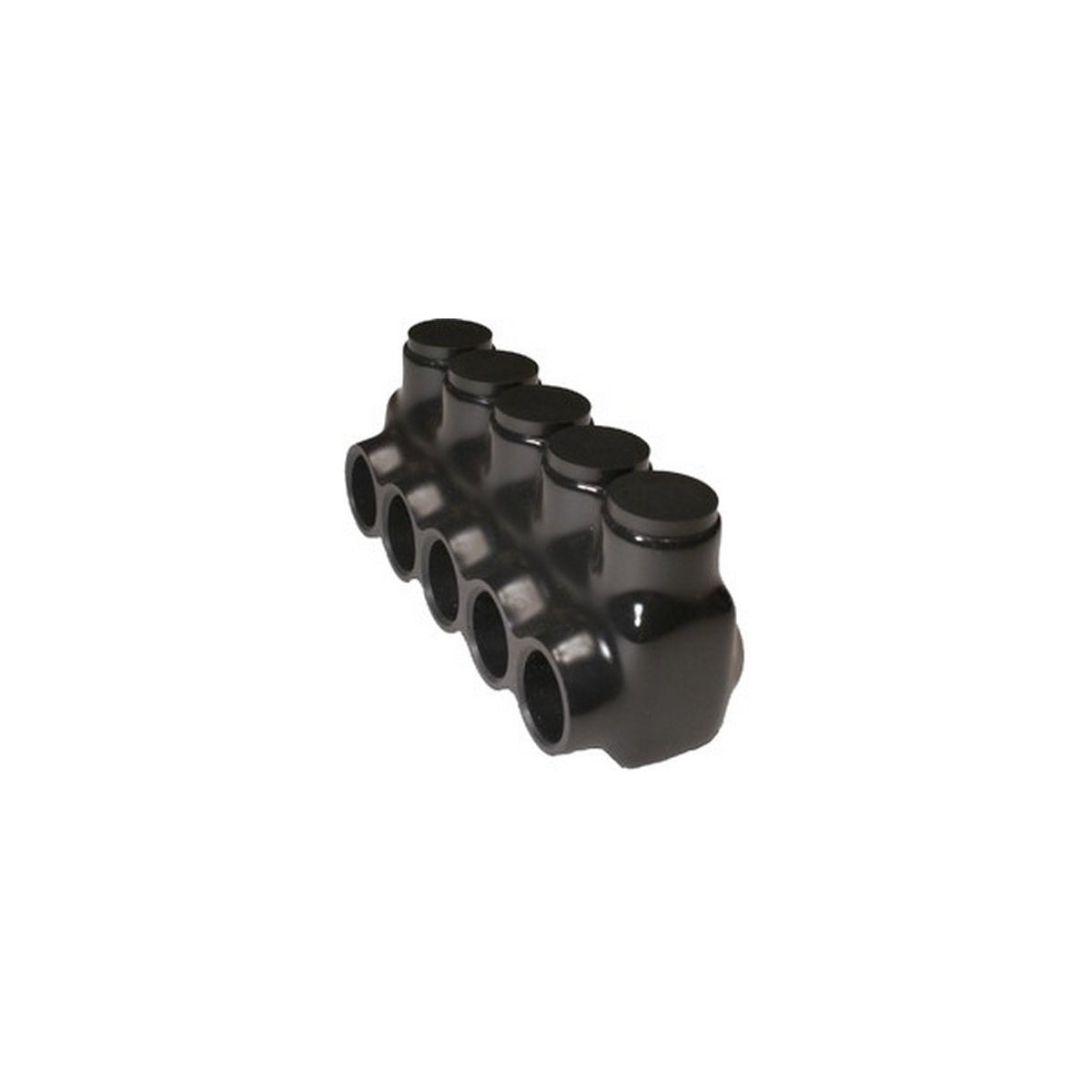

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 600 - 250
SKU: #281116
Part: #97565
UPC: 601986975650
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 600 - 250
SKU: #281116
Part: #97565
UPC: 601986975650
Description
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 600 - 250 | Electrical Power Connector
This Black Insulated Multi-Cable Connector is designed for simplifying cable splicing and tapping in electrical distribution systems. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers in applications involving wire and cable connections within gutters, raceways, and enclosure power distribution. The connector supports multi-cable single directional entry and is dual rated for aluminum and copper conductors.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 600 - 250 MCM
- Voltage Rating: 600 V
- Temperature Rating: 49°F - 194°F
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 1.9650 lbs
Features
- Multi-Tap Single Directional Conductor Entry for streamlined cable connections
- Black insulated mechanical connector with durable PVC insulation
- Pre-filled oxide inhibitor to protect conductor connections
- Suitable for aluminum and copper conductor applications (AL/CU dual rated)
- Designed for use in gutters, raceways, and enclosure power distribution
