Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 500 - 4
SKU: #281225
Part: #97587
UPC: 601986975872
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 500 - 4
SKU: #281225
Part: #97587
UPC: 601986975872
Description

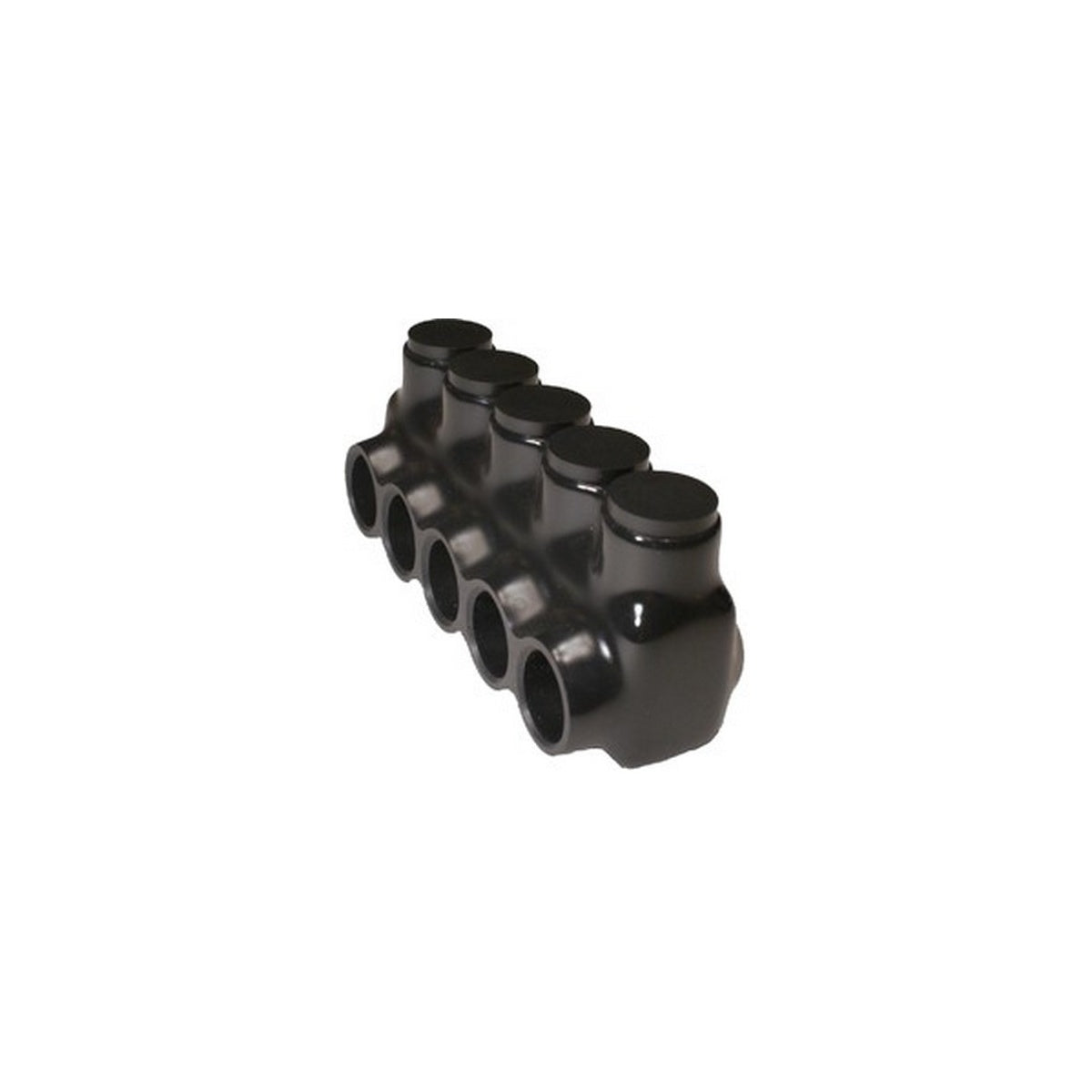

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 500 - 4 Electrical Connector
This Black Insulated Multi-Cable Connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. Manufactured from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, it is suitable for use by electrical distributors and lighting solutions providers requiring durable wire and cable connectors. The connector supports multi-tap single directional conductor entry, making it ideal for gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 500 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL: Yes
- Product Weight: 1.9650 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector suitable for AL/CU dual rating
- Pre-filled oxide inhibitor to prevent corrosion
- Designed for use in gutter, raceway, and enclosure power distribution
