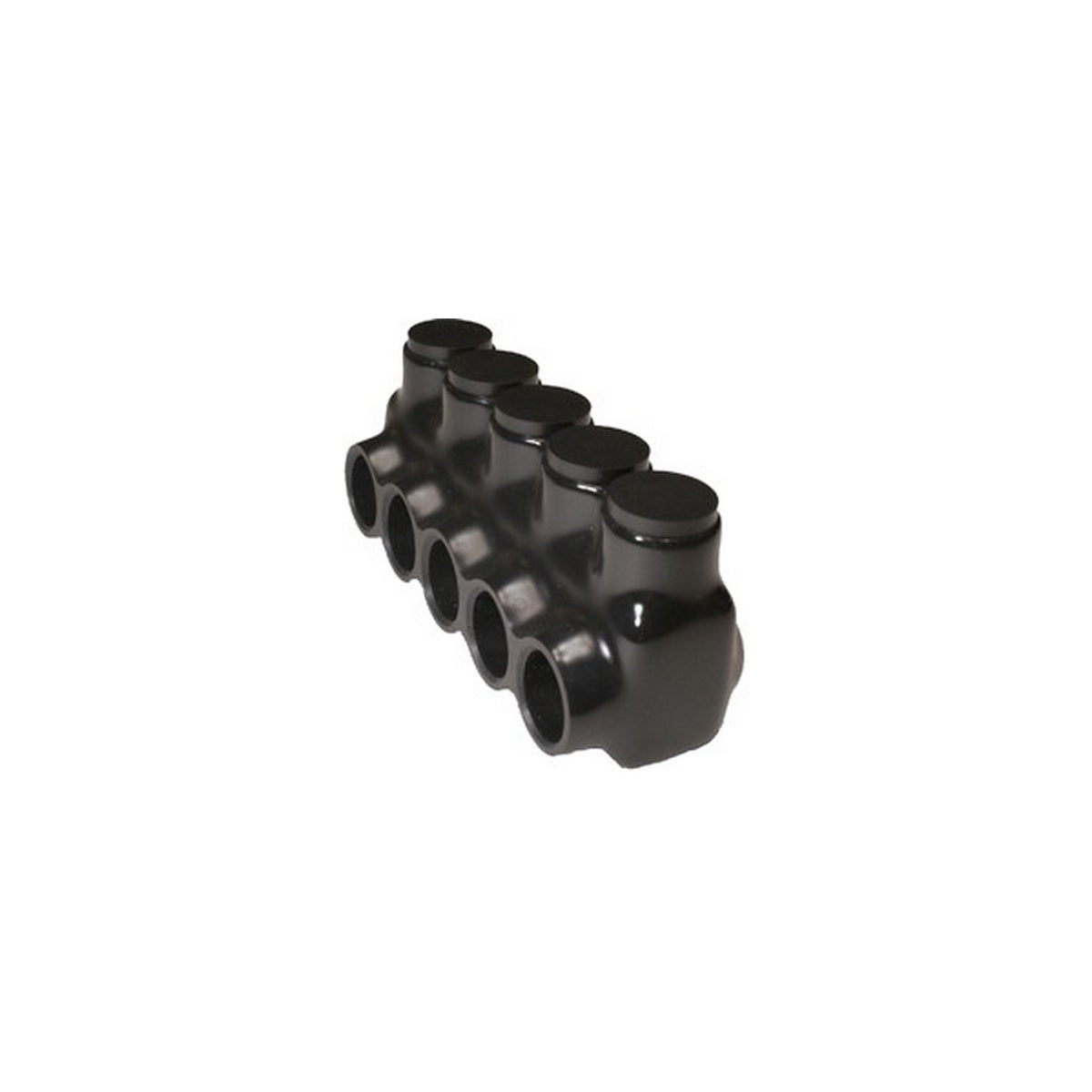

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 4 - 14 | Electrical Power Connector

This black insulated multi-cable connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. It features a single directional entry with five ports accommodating wire sizes from #4 to #14, making it suitable for wire and cable management in lighting solutions, switchgear assemblies, and power distribution applications. As a product from a trusted electrical distributor, it supports reliable connections in gutter, raceway, and enclosure environments.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #4 - #14 AWG
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL Listed: Yes
• Product Weight: 0.1950 lbs

Features

• Insulated mechanical connector with black PVC insulation for durability and safety
• Multi-tap single directional conductor entry for streamlined cable connections
• Aluminum mechanical connector suitable for AL/CU dual rated applications
• Pre-filled oxide inhibitor to prevent corrosion and ensure long-term conductivity
• Designed for use in gutter, raceway, and enclosure power distribution systems

Downloads & Links

• Spec Sheet
