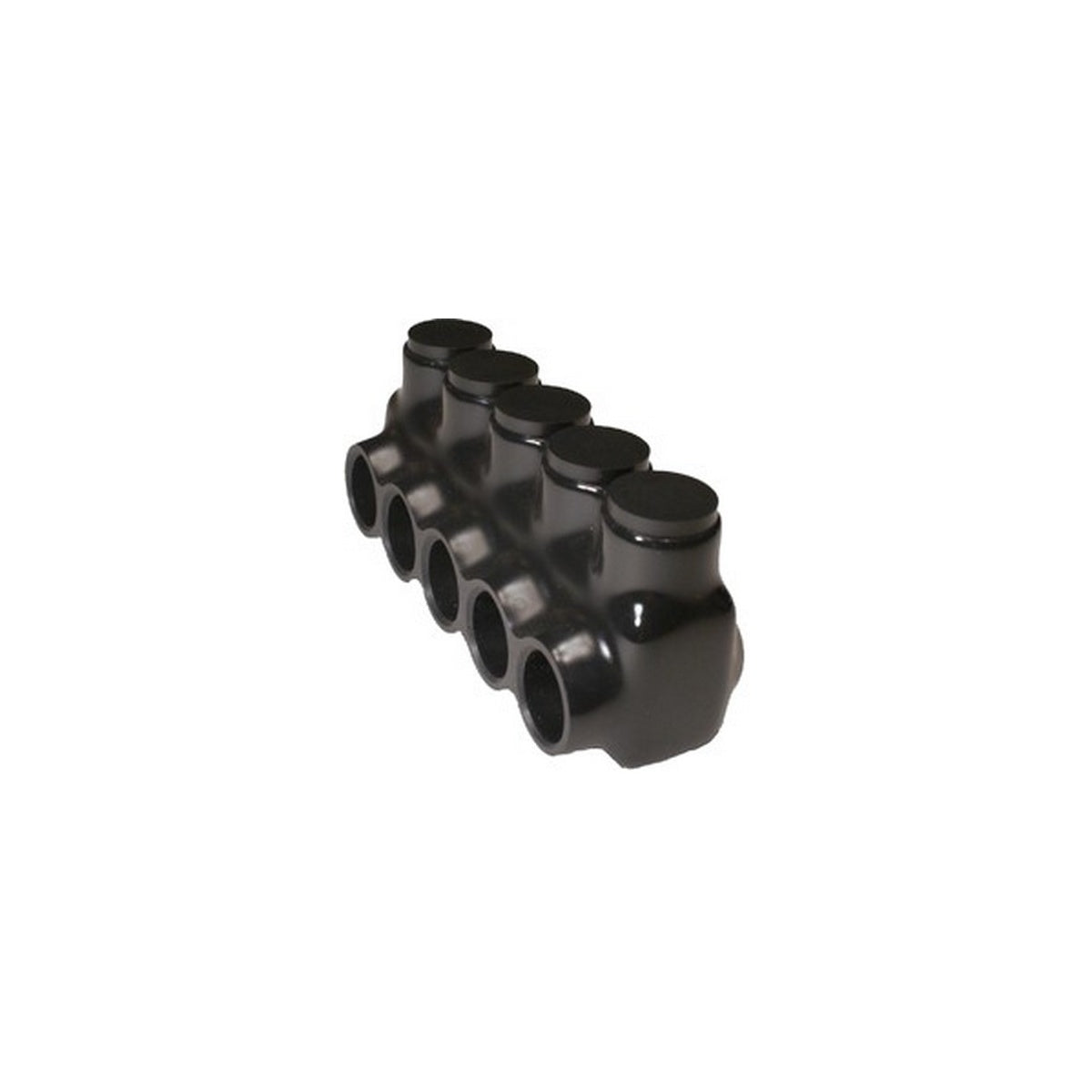

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 350 - 6 | Electrical Power Connector

The Black Insulated Multi-Cable Connector by Morris Products is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. This single side entry connector supports multi-cable connections with five ports, suitable for wire sizes ranging from 350 to #6 AWG. Its robust construction and black abrasion- and chemical-resistant PVC insulation make it ideal for power distribution in gutters, raceways, and enclosures.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Voltage Rating: 600 V
• Temperature Rating: 49¬∞F - 194¬∞F
• UL Certification: UL 486B Dual Rated CU/AL
• cUL Certified: Yes
• Pre-filled Oxide Inhibitor: Included
• Product Weight: 1.44 lbs

Features

• Multi-tap single directional conductor entry for simplified cable splicing and tapping
• Aluminum mechanical connector suitable for both aluminum and copper conductors
• Black insulated PVC cover provides abrasion and chemical resistance
• Designed for use in gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
