Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 3/0 - 6
SKU: #281198
Part: #97581
UPC: 601986975810
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 3/0 - 6
SKU: #281198
Part: #97581
UPC: 601986975810
Description

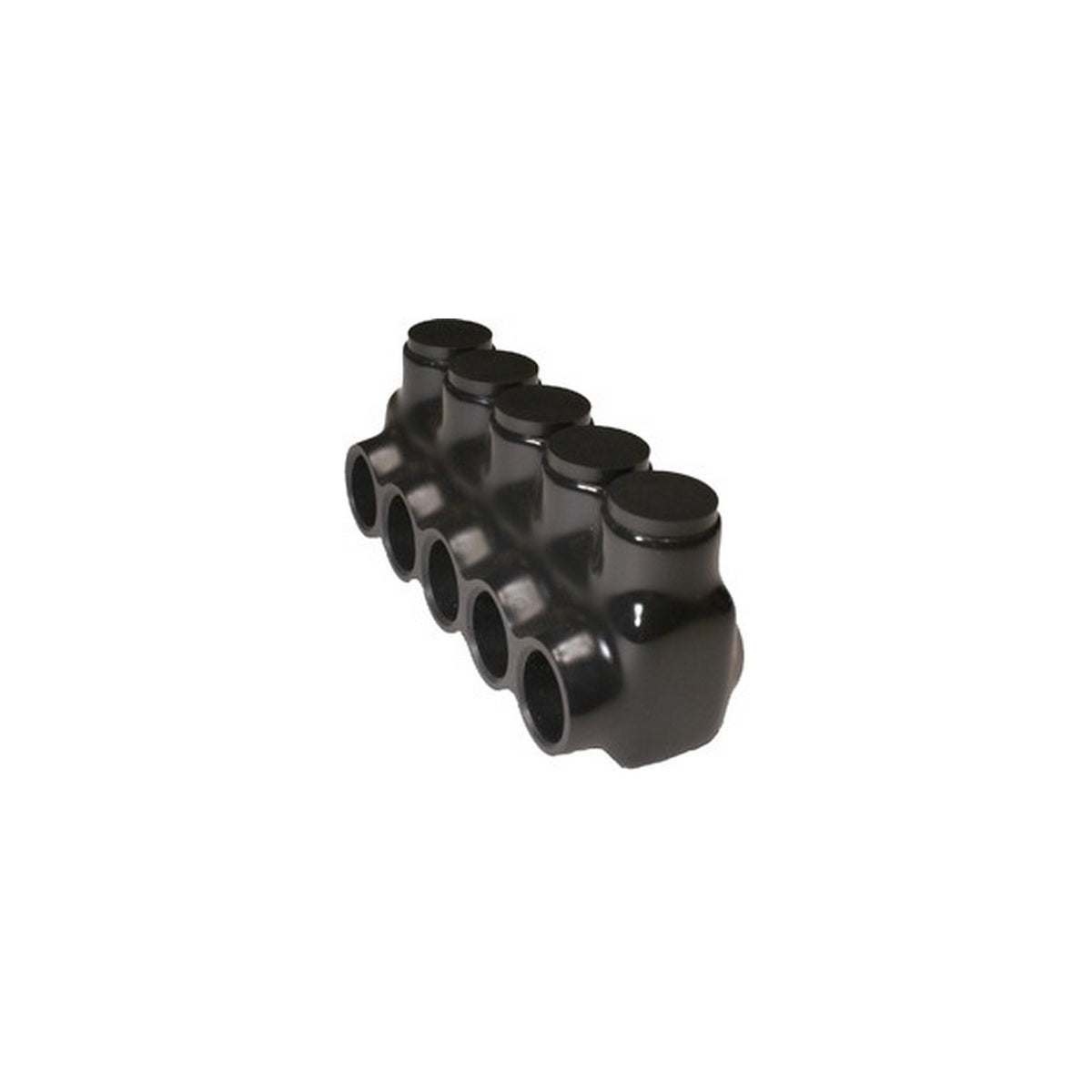

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 3/0 - 6 Electrical Connector
This Black Insulated Multi-Cable Connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. Manufactured by Morris Products, it serves as a reliable solution for wire and cable connections in gutter, raceway, and enclosure power distribution applications. The connector features a single side entry with five ports, accommodating wire sizes from 3/0 to #6, and is suitable for use by electrical distributors and switchgear suppliers requiring durable, dual-rated connectors.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 3/0 - #6
- Temperature Rating: 49°F to 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.6900 lb
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector suitable for AL/CU conductors
- Prefilled oxide inhibitor for enhanced corrosion resistance
- Designed for use in gutter, raceway, and enclosure power distribution
