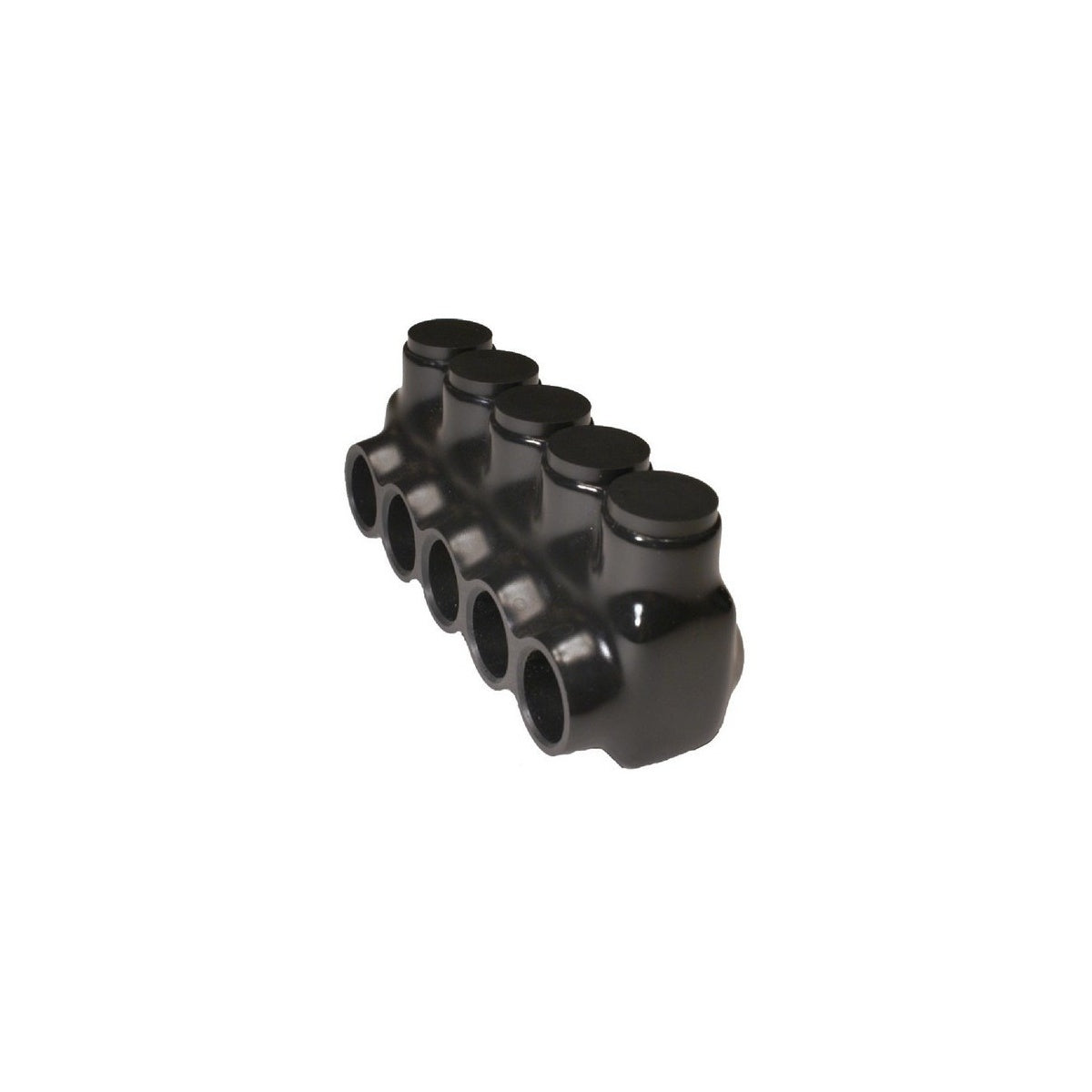

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 250 - 6 | Electrical Power Connector

This black insulated multi-cable connector is designed for electrical distributors and lighting solutions requiring reliable cable splicing and tapping. It features a single side entry with five ports suitable for wire sizes ranging from 250 to #6, providing a robust solution for power distribution in gutters, raceways, and enclosures. Constructed from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, this connector supports both aluminum and copper conductors, making it a versatile component for wire and cable management in switchgear and electrical distribution systems.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 250 - #6
• Voltage Rating: 600 V
• Temperature Rating: 49¬∞F - 194¬∞F
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL Certified: Yes
• Product Weight: 0.87 lbs

Features

• Multi-cable single directional entry simplifies cable splicing and tapping applications
• Aluminum mechanical connector suitable for both aluminum and copper conductors
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• Black PVC insulation provides abrasion and chemical resistance
• Designed for gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
