Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 2/0 - 6
SKU: #281029
Part: #97535
UPC: 601986975353
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 2/0 - 6
SKU: #281029
Part: #97535
UPC: 601986975353
Description

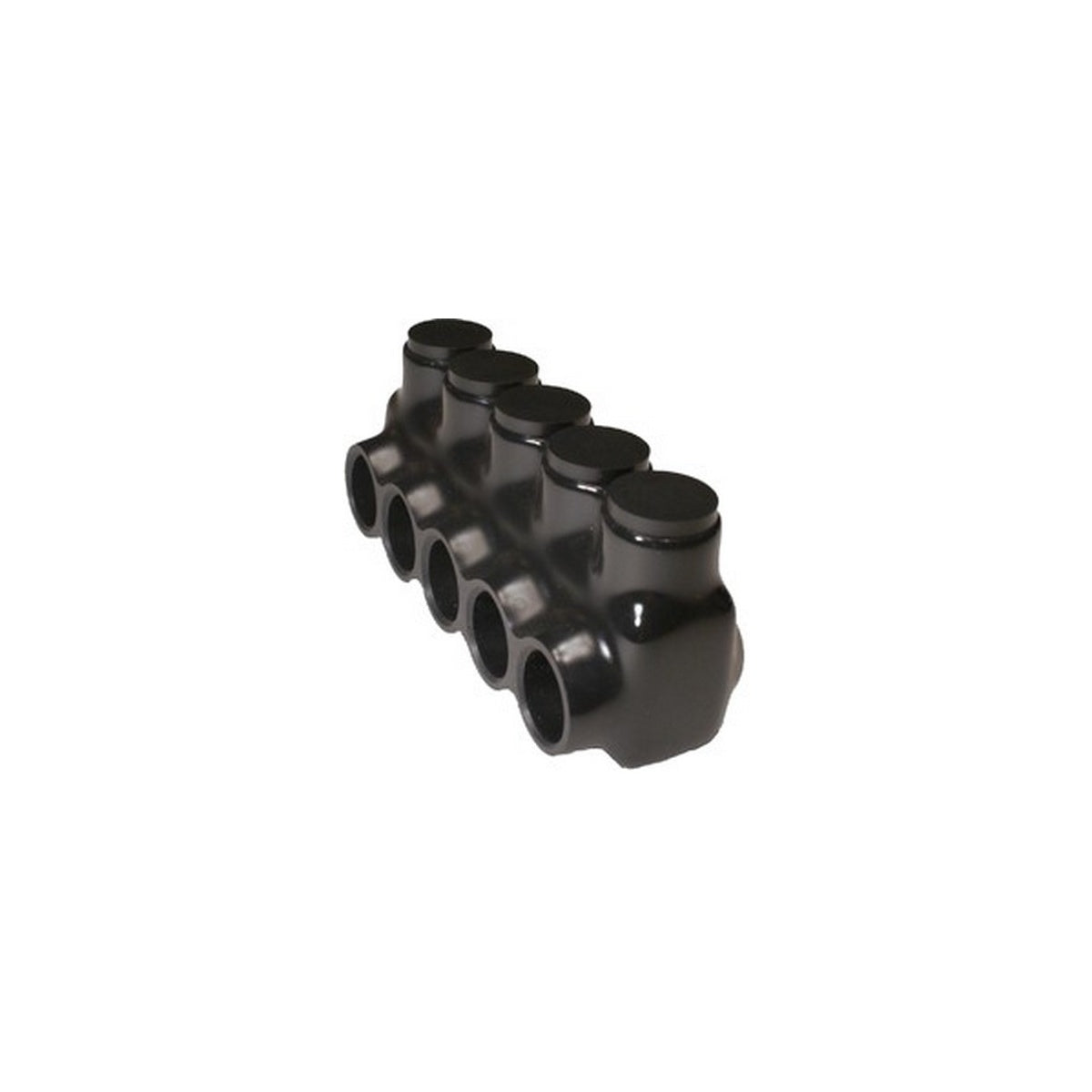

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 2/0 - 6 Electrical Connector
This black insulated multi-cable connector is designed for electrical distributors and lighting solutions providers requiring reliable wire and cable splicing and tapping. It features a single side entry with five ports, accommodating wire sizes from 2/0 to #6. Constructed from 6061-T6 aluminum with black abrasion and chemical resistant PVC insulation, it is suitable for gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Aluminum
- Color: Black
- Wire Range: 2/0 - #6
- Insulation: Black Abrasion & Chemical Resistant PVC
- Voltage Rating: 600 V
- Temperature Rating: 49°F - 194°F
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL Certified: Yes
- Product Weight: 0.6900 lb
Features
- Multi-Tap Single Directional Conductor Entry
- Pre-filled Oxide Inhibitor for corrosion resistance
- Aluminum Mechanical Connector suitable for AL/CU dual rating
- Black PVC insulation offers abrasion and chemical resistance
- Designed for use in power distribution in gutters, raceways, and enclosures
