Morris Products

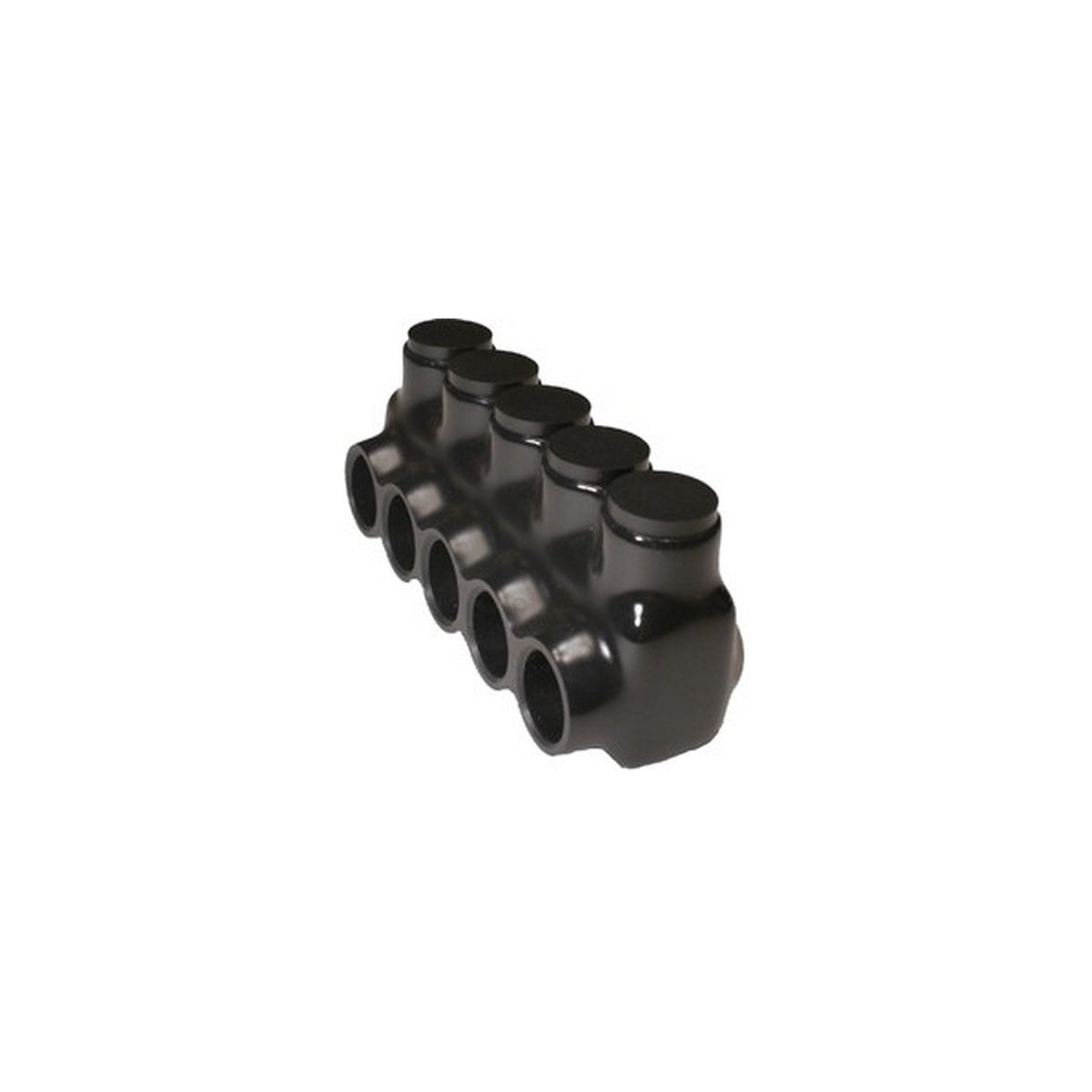

Black Insulated Multi-Cable Connector - Single Entry 5 Ports 1/0 - 14
SKU: #280985
Part: #97527
UPC: 601986975278
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 1/0 - 14
SKU: #280985
Part: #97527
UPC: 601986975278
Description
Black Insulated Multi-Cable Connector - Single Entry 5 Ports 1/0 - 14 | Electrical Power Connector
This black insulated multi-cable connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. Suitable for use by electrical distributors and switchgear suppliers, it facilitates reliable connections in wire and cable installations for gutter, raceway, and enclosure power distribution.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black abrasion and chemical resistant PVC
- Wire Range: 1/0 - 14 AWG
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.48 lbs
Features
- Single side entry with 5 ports for multi-cable connections
- Prefilled oxide inhibitor for improved conductivity and corrosion resistance
- Aluminum mechanical connector suitable for AL/CU dual rating
- Black insulated mechanical connector with PVC insulation for durability
- Designed for multi-tap single directional conductor entry
