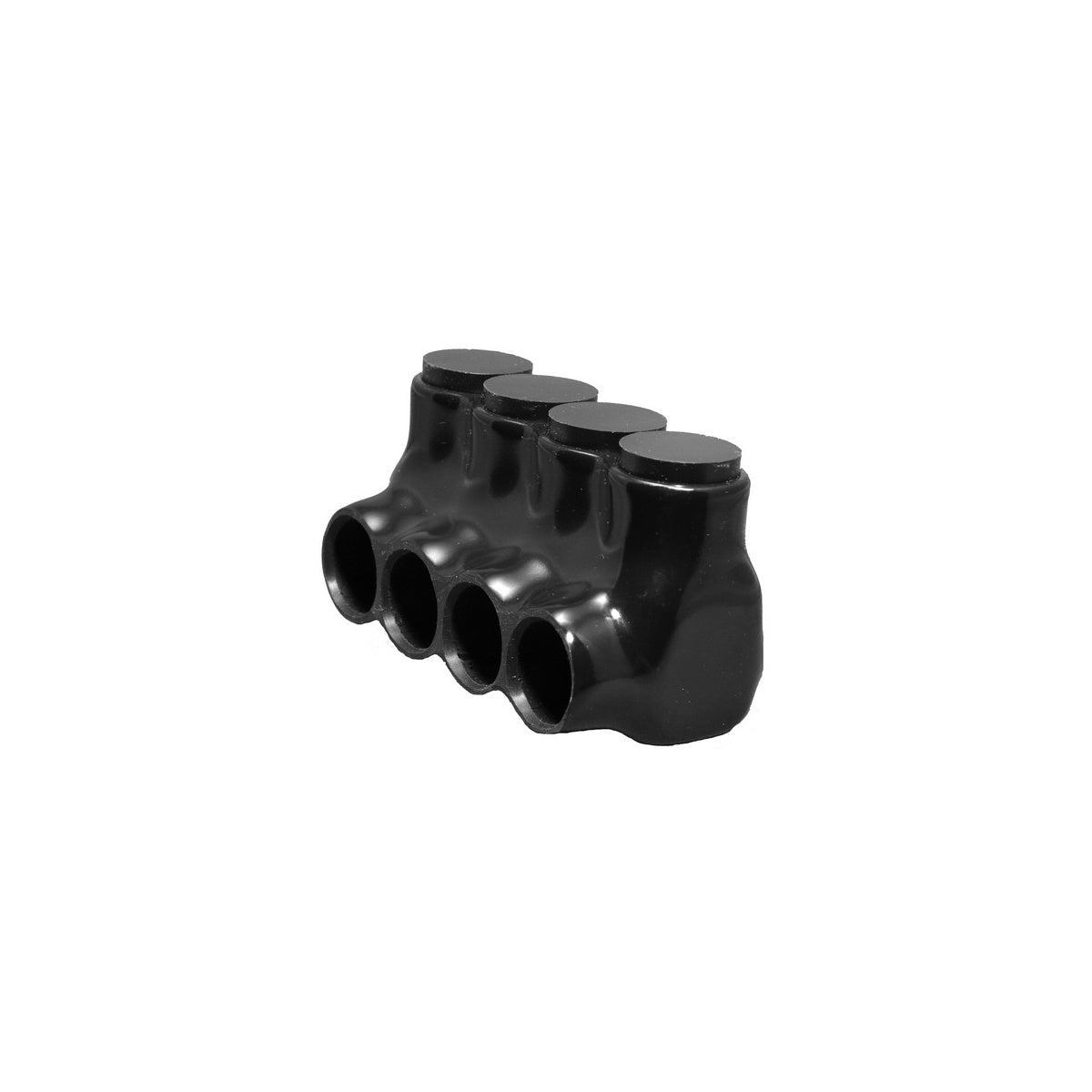

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 750 - 250 | Electrical Power Connector

This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable power connection solutions. It simplifies cable splicing and tapping applications with a single-side entry and four ports, supporting wire sizes from 750 to 250 MCM. Constructed of 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, it is suitable for gutter, raceway, and enclosure power distribution applications.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 750 - 250 MCM
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL Certified: Yes
• Product Weight: 2.8050 lbs
• Manufacturer Part #: 97574
• Color: Black

Features

• Insulated Mechanical Connector with black PVC insulation for durability
• Multi-tap single directional conductor entry for efficient cable management
• Aluminum mechanical connector suitable for AL/CU dual rated applications
• Prefilled with oxide inhibitor to ensure long-term conductivity
• Designed for use in gutter, raceway, and enclosure power distribution

Downloads & Links

• Spec Sheet
