Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 4 - 14
SKU: #280943
Part: #97514
UPC: 601986975148
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 4 - 14
SKU: #280943
Part: #97514
UPC: 601986975148
Description

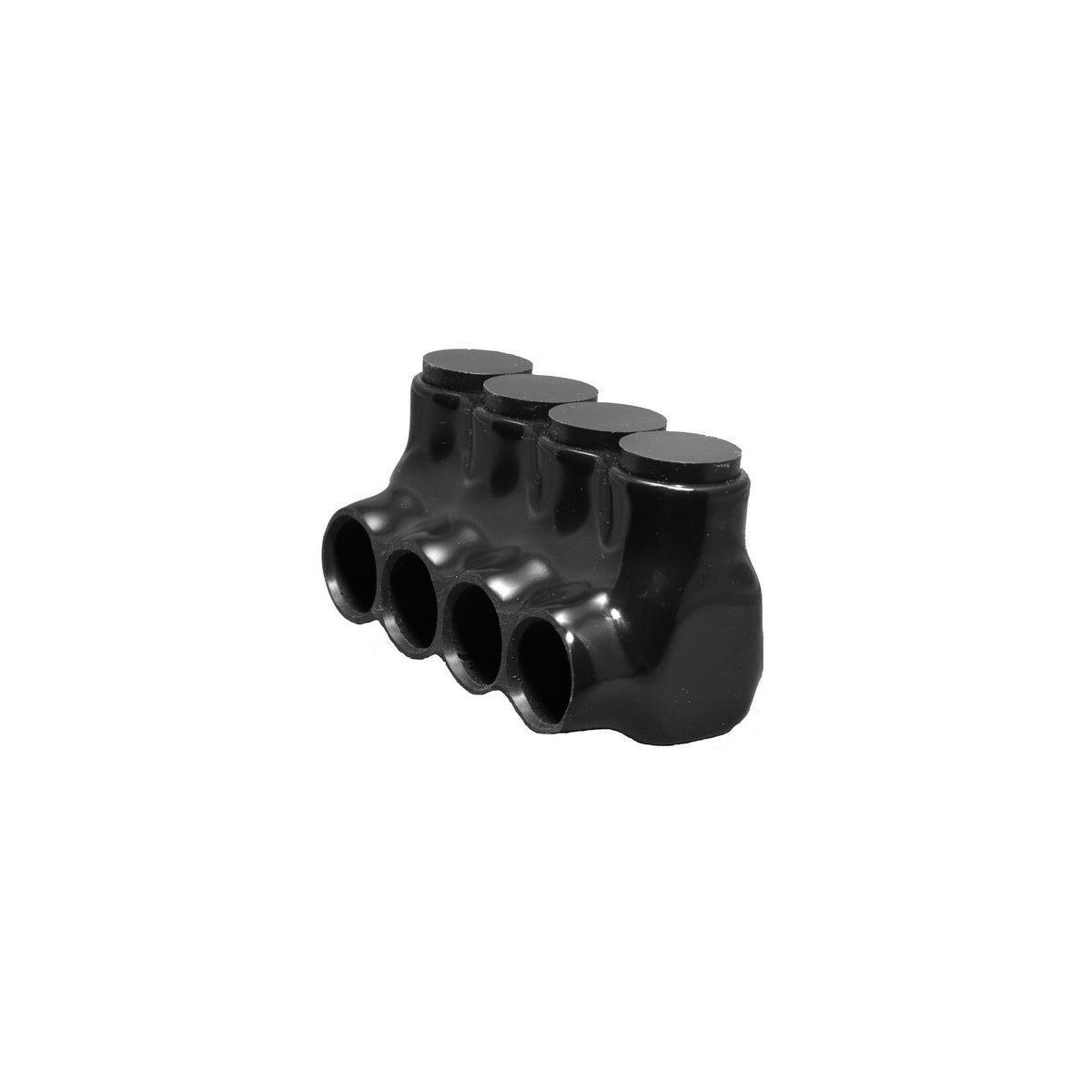

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 4 - 14
This black insulated multi-cable connector is designed for electrical distributors and wire and cable applications requiring reliable mechanical connections. It features a single side entry with four ports, accommodating wire sizes from #4 to #14. The connector simplifies cable splicing and tapping in power distribution setups such as gutters, raceways, and enclosures. Manufactured from 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, it is dual rated for aluminum and copper conductors, making it suitable for various lighting solutions and switchgear supplier needs.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #4 - #14
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU/AL
- cUL Certification: Yes
- Product Weight: 0.1650 lbs
- Manufacturer Part #: 97514
- Color: Black
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry for simplified cable splicing
- Aluminum mechanical connector suitable for both aluminum and copper conductors
- Pre-filled oxide inhibitor to prevent corrosion
- Designed for gutter, raceway, and enclosure power distribution applications
