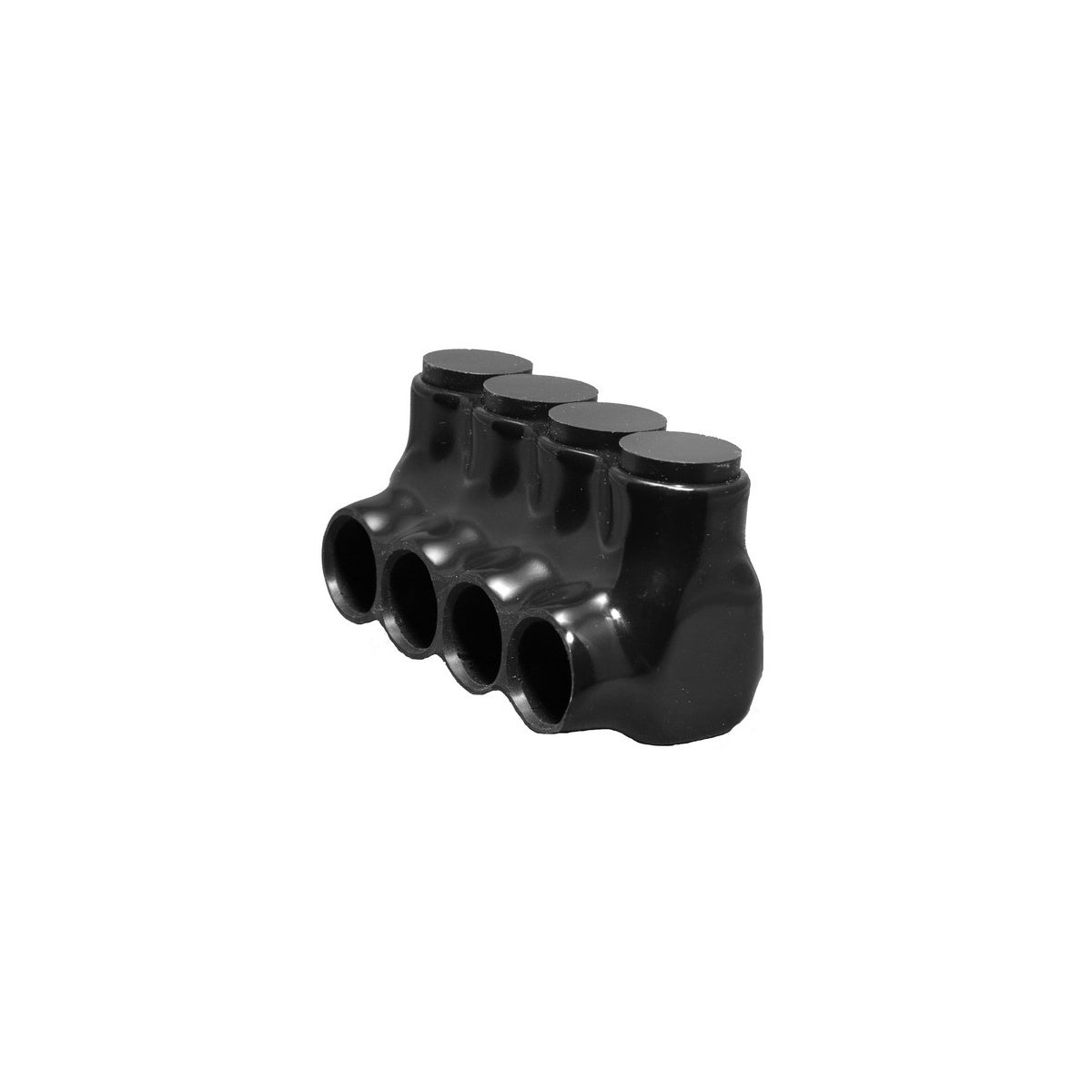

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 350 - 6 Electrical Connector

This black insulated multi-cable connector is designed for simplifying cable splicing and tapping applications. It features a single-side entry with four ports, supporting wire sizes from 350 to #6. Constructed from 6061-T6 plated aluminum with abrasion and chemical-resistant black PVC insulation, it is suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear supplier applications.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• Amp Rating: To Conductor
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL Certified: Yes
• Product Weight: 1.1550 lbs

Features

• Multi-Tap Single Directional Conductor Entry
• Aluminum Mechanical Connector, AL/CU Dual Rated
• Pre-filled Oxide Inhibitor for Enhanced Conductivity
• Black Insulated PVC for Protection and Durability
• Suitable for Gutter, Raceway, and Enclosure Power Distribution Applications

Downloads & Links

• Spec Sheet
