Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 3/0 - 6
SKU: #281192
Part: #97580
UPC: 601986975803
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 3/0 - 6
SKU: #281192
Part: #97580
UPC: 601986975803
Description

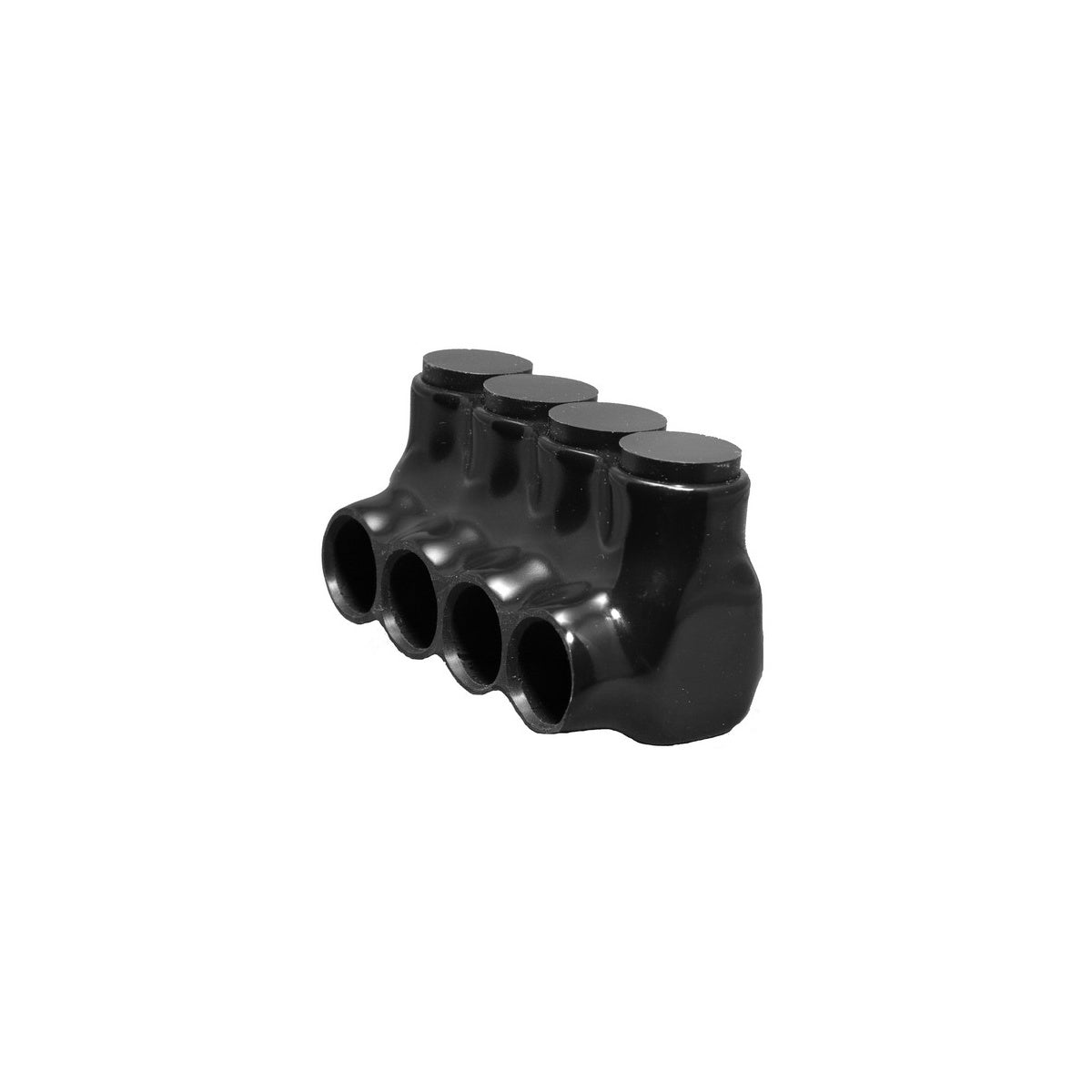

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 3/0 - 6 | Electrical Connector
This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. It features a single side entry with four ports, accommodating wire sizes from 3/0 to #6. The connector simplifies multi-cable connections in power distribution applications, suitable for use in gutters, raceways, and enclosures.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 3/0 - #6
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.5550 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector suitable for AL/CU dual rating
- Prefilled oxide inhibitor for corrosion resistance
- Designed for gutter, raceway, and enclosure power distribution applications
