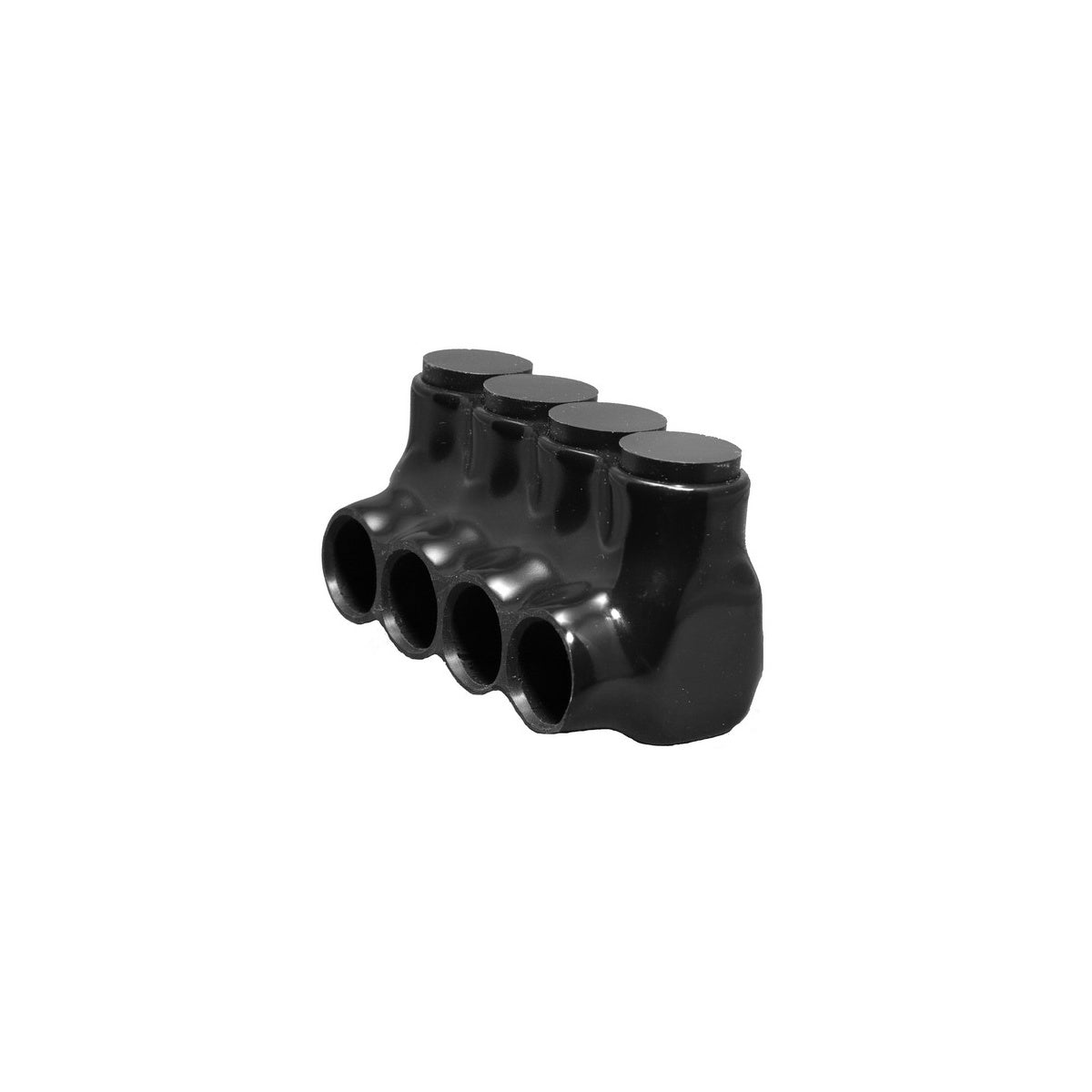

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 250 - 6 Electrical Connector

This black insulated multi-cable connector is designed for electrical distributors and lighting solutions requiring reliable cable splicing and tapping. It features a single side entry with four ports, suitable for wire sizes ranging from 250 to #6. Constructed from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, it supports safe and durable connections in power distribution applications including gutters, raceways, and enclosures. This connector is dual-rated for aluminum and copper conductors, making it compatible with a variety of wire types.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 250 - #6 AWG
• Temperature Rating: 49°F - 194°F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU/AL
• cUL: Yes
• Product Weight: 0.7050 lbs

Features

• Insulated mechanical connector with black PVC insulation
• Multi-tap single directional conductor entry simplifies cable splicing
• Dual rated for aluminum and copper conductors
• Pre-filled oxide inhibitor for enhanced connection reliability
• Suitable for gutter, raceway, and enclosure power distribution

Downloads & Links

• Spec Sheet
