Description

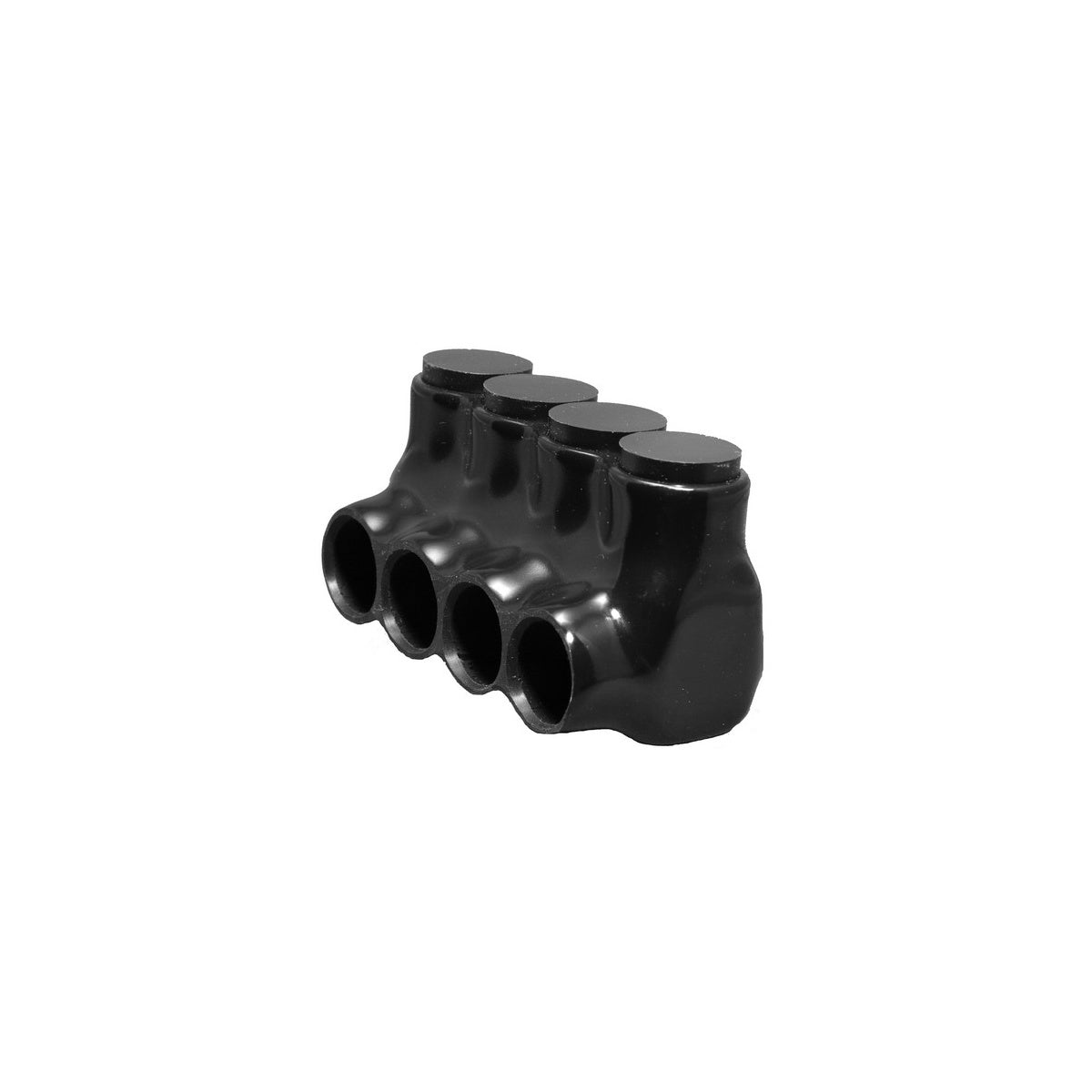

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 2 - 14 | Electrical Connector
The Black Insulated Multi-Cable Connector by Morris Products is designed for simplifying cable splicing and tapping applications in electrical distribution systems. This insulated mechanical connector provides a secure, multi-port connection for wire sizes ranging from #2 to #14, suitable for use by electrical distributors and switchgear suppliers in power distribution, gutter, raceway, and enclosure applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #2 - #14 AWG
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.2250 lbs
Features
- Multi-Tap Single Directional Conductor Entry with 4 ports
- Black PVC Insulation for abrasion and chemical resistance
- Aluminum mechanical connector suitable for AL/CU dual rating
- Pre-filled oxide inhibitor to prevent corrosion
- Designed for use in gutter, raceway, and enclosure power distribution
