Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 2/0 - 6
SKU: #281019
Part: #97534
UPC: 601986975346
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 2/0 - 6
SKU: #281019
Part: #97534
UPC: 601986975346
Description

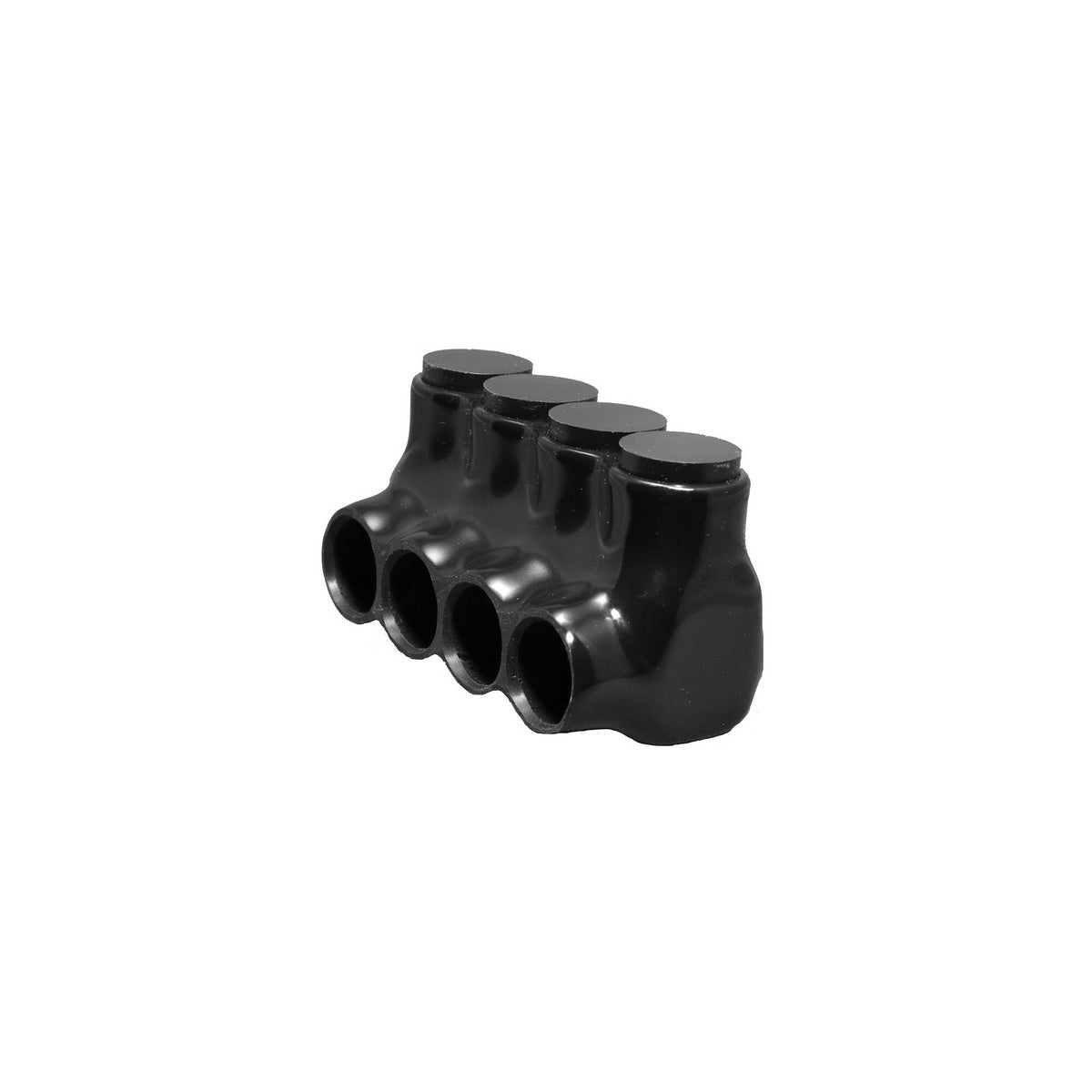

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 2/0 - 6 Electrical Connector
This black insulated multi-cable connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. Manufactured by Morris Products, it serves as a reliable solution for electrical distributors and switchgear suppliers requiring durable wire and cable connectors. Its single side entry design with four ports accommodates wire sizes from 2/0 to #6, making it suitable for gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black abrasion and chemical resistant PVC
- Wire Range: 2/0 - #6
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.5550 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector suitable for AL/CU dual rating
- Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
