Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 1/0 - 14
SKU: #280984
Part: #97526
UPC: 601986975261
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 4 Ports 1/0 - 14
SKU: #280984
Part: #97526
UPC: 601986975261
Description

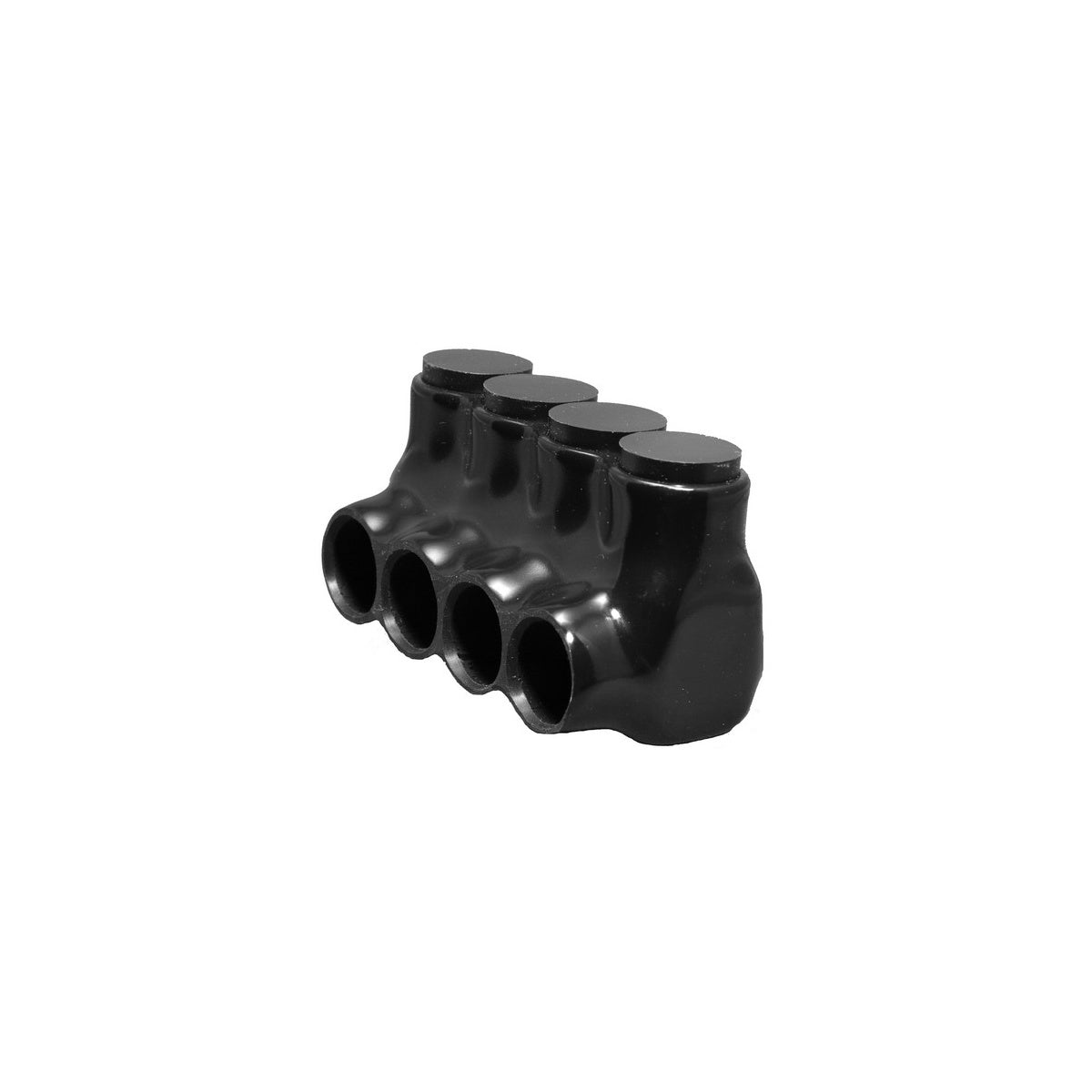

Black Insulated Multi-Cable Connector - Single Entry 4 Ports 1/0 - 14
This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers to simplify cable splicing and tapping applications. It features a single side entry with four ports, supporting wire sizes from 1/0 to #14. Constructed from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, it is suitable for power distribution in gutters, raceways, and enclosures.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 1/0 - #14 AWG
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.3900 lb
Features
- Multi-Tap Single Directional Conductor Entry
- Aluminum Mechanical Connector
- AL/CU Dual Rated for Aluminum and Copper Conductors
- Prefilled Oxide Inhibitor for Corrosion Protection
- Black PVC Insulation for Abrasion and Chemical Resistance
